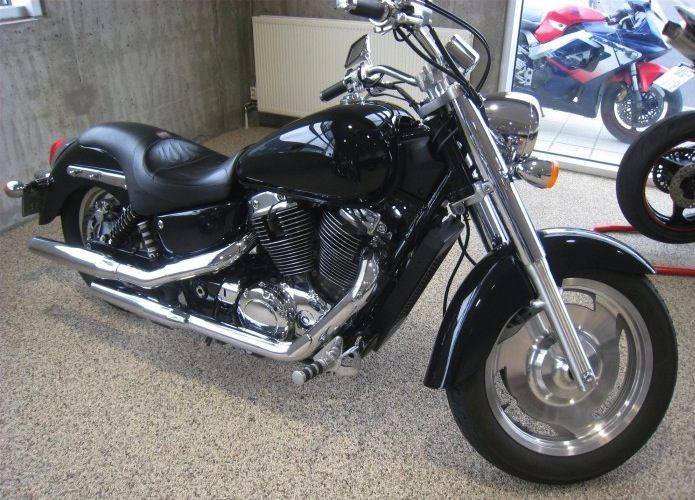

| MODEL | HONDA VT 1100C SHADOW SABRE 2005 - 2006 |
| Year | 2005 - 2006 |
| Engine Type | Four stroke, 45° V-twin, OHC, 3 valves per cylinder |
| Displacement / Capacity | 1099 cc / 67.1 cu in |
| Bore X Stroke | 87.5 x 91.4 mm |
| Compression Ratio | 8.5:1 |
| Cooling System | Liquid cooled |
| Max Power | 49 kW / 67 hp @ 5500 rpm |
| Max Torque | 91 Nm / 9.27 kgf-m / 67 lb-ft @ 2700 rpm |
| Ignition | Solid-state digital, two spark plugs per cylinder |
| Induction | 2 x 36 mm Keihin carburettors |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 5 Speed |
| Clutch | — |
| Final Drive | Shaft |
| CHASSIS SPECS | |
| Frame | — |
| Front Suspension | 41 mm forks, 160 mm wheel travel |
| Rear Suspension | Dual shocks, preload adjustable, 100 mm wheel travel |
| Front Brakes | Single 315 mm disc, 2 piston caliper |
| Rear Brakes | Single 276 mm disc, 1 piston caliper |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 730 mm / 28.7 in |
| Wheelbase | 1640 mm / 64.6 in |
| Ground Clearance | 140 mm / 5.5 in |
| Dry Weight | 261 kg / 575.4 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 120/90-18 |
| Rear Tyre | 170/80-15 |
| FUEL SYSTEM | |
| Fuel Capacity | 15 Litres / 3.9 US gal |
| Fuel Consumption | — |
| Top Speed | — |
For 2005-06 the Sabre kept its formula of a low, long street-rod chassis, cast front wheel and twin disc brakes around the 1099 cc V-twin. Honda highlighted its low-maintenance engine features, including hydraulic valve adjusters, automatic cam-chain tensioners and digital ignition, with shaft drive and a wide rear tyre.
