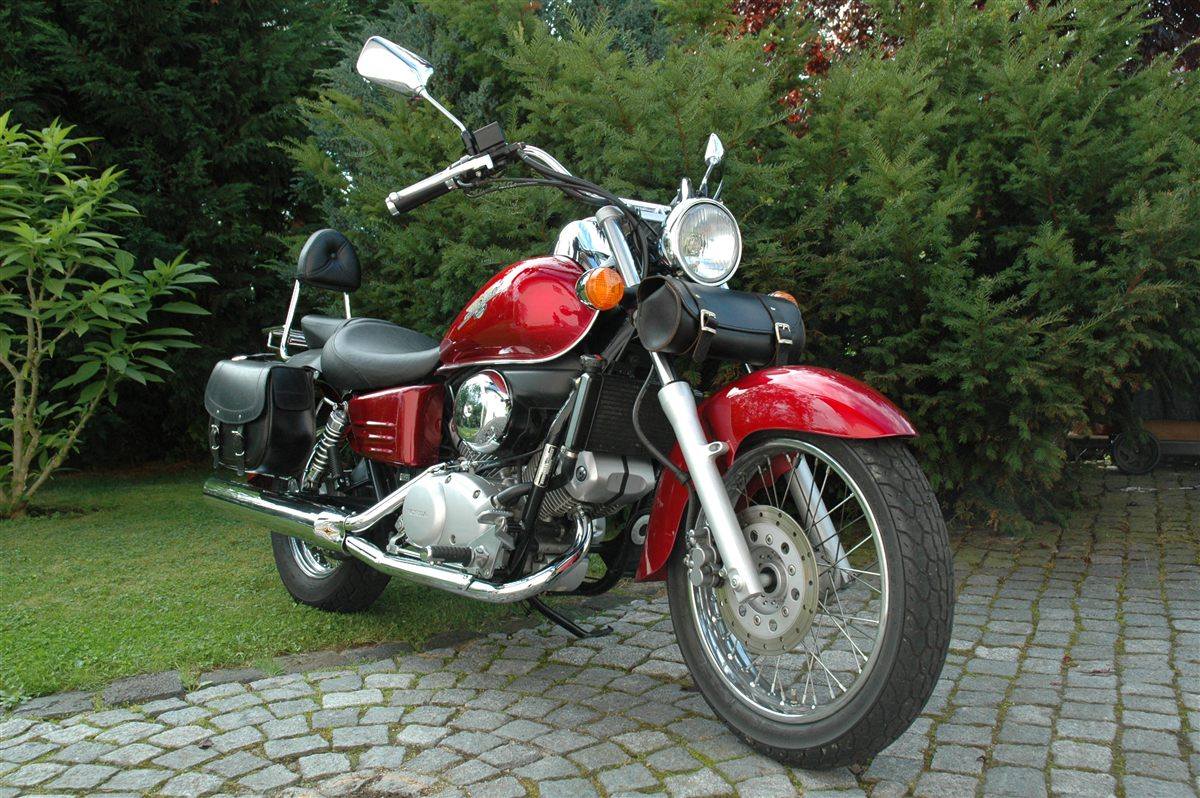

| MODEL | HONDA VT 125C SHADOW 2003 - 2006 |
| Year | 2003 - 2006 |
| Engine Type | Four stroke, 90° V-twin, SOHC, 2 valves per cylinder |
| Displacement / Capacity | 124 cc / 7.6 cu in |
| Bore X Stroke | 42 x 45 mm |
| Compression Ratio | 11.8:1 |
| Cooling System | Liquid cooled |
| Max Power | 10.9 kW / 15 hp @ 11000 rpm |
| Max Torque | 11 Nm / 8.1 lb-ft @ 9000 rpm |
| Ignition | Digital transistorised with electronic advance |
| Induction | 2x 22 mm VP-type carburettors |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 5 Speed |
| Clutch | — |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | — |
| Front Suspension | 35 mm telescopic forks, 110 mm / 4.3 in travel |
| Rear Suspension | Dual shocks, adjustable preload, 80 mm / 3.1 in travel |
| Front Brakes | Single 240 mm disc, 2-piston caliper |
| Rear Brakes | 130 mm drum |
| DIMENSION SPECS | |
| Overall Length | 2300 mm / 90.5 in |
| Overall Width | 890 mm / 35.0 in |
| Overall Height | 1110 mm / 43.7 in |
| Seat Height | 680 mm / 26.8 in |
| Wheelbase | 1524 mm / 60.0 in |
| Ground Clearance | 145 mm / 5.7 in |
| Dry Weight | 145 kg / 319.7 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 100/90-17 |
| Rear Tyre | 130/90-15 |
| FUEL SYSTEM | |
| Fuel Capacity | 14 Litres / 3.7 US gal |
| Fuel Consumption | — |
| Top Speed | 103 km/h / 64 mph |
From 2003 the VT125C continued unchanged in specification, built in Spain for the European market. It kept the relaxed riding position, chrome detailing, spoked wheels and tank-mounted instruments that made it look larger than a 125. Production ended in 2006, because the carburettor engine could not meet the Euro 3 limits due in 2007 without injection and a catalytic converter.
