| MODEL | HONDA VT 500C SHADOW 1983 - 1986 |
| Year | 1983 - 1986 |
| Engine Type | Four stroke, 52° V-twin, SOHC, 3 valves per cylinder |
| Displacement / Capacity | 491 cc / 30.0 cu in |
| Bore X Stroke | 71 x 62 mm |
| Compression Ratio | 10.5:1 |
| Cooling System | Liquid cooled |
| Max Power | 37.2 kW / 50 hp @ 9000 rpm |
| Max Torque | 42 Nm / 30.9 lb-ft @ 7000 rpm |
| Ignition | Electronic |
| Induction | 2x 32 mm Keihin carburetors |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6 Speed |
| Clutch | — |
| Final Drive | Shaft |
| CHASSIS SPECS | |
| Frame | — |
| Front Suspension | Air-adjustable leading-axle forks with fork brace |
| Rear Suspension | Swingarm with dual adjustable shocks |
| Front Brakes | Single disc, 2-piston caliper |
| Rear Brakes | Drum |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 770 mm / 30.3 in |
| Wheelbase | 1490 mm / 58.6 in |
| Ground Clearance | — |
| Dry Weight | 183 kg / 403.3 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 100/90-18 |
| Rear Tyre | 130/90-16 |
| FUEL SYSTEM | |
| Fuel Capacity | 12.5 Litres / 3.3 US gal |
| Fuel Consumption | — |
| Top Speed | — |

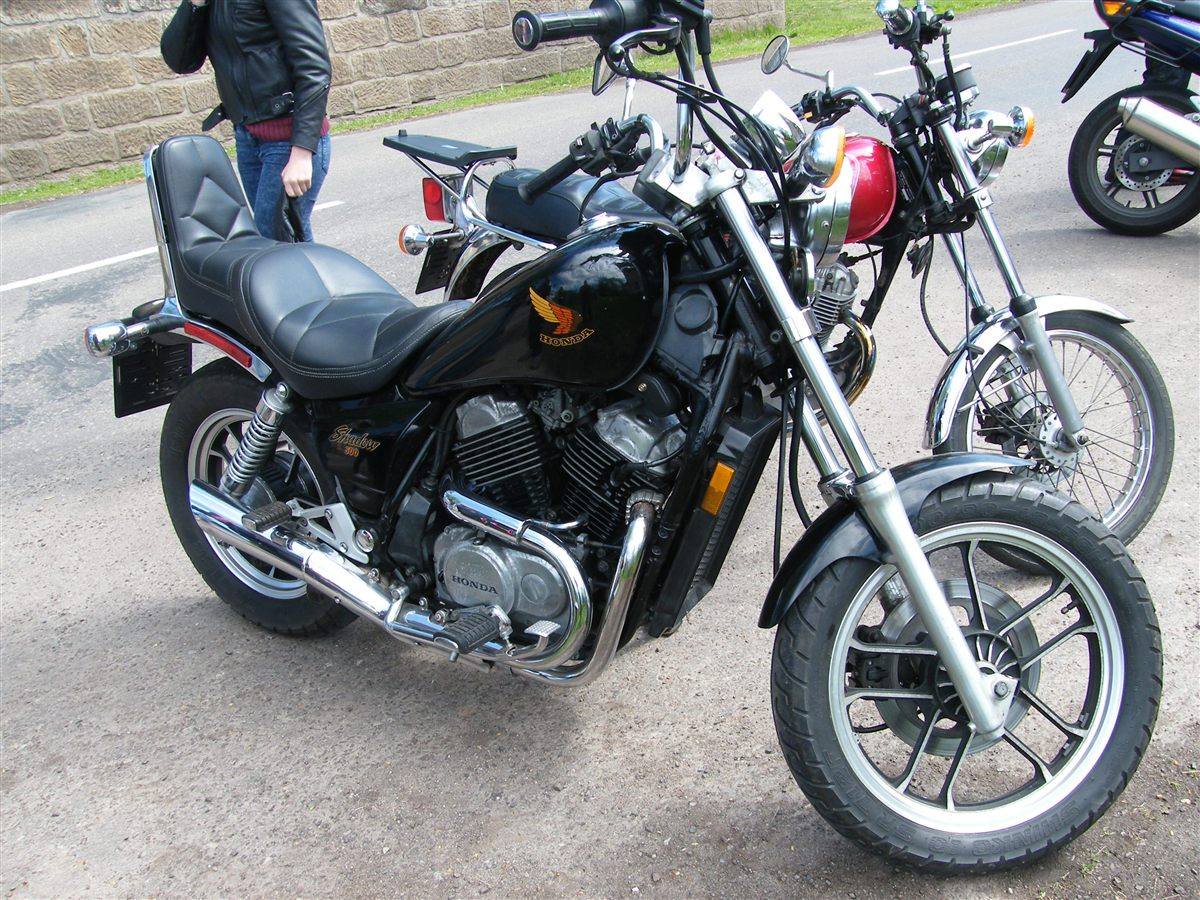

Photo: Addvisor, CC BY-SA 4.0, via Wikimedia Commons
Photo: Addvisor, CC BY-SA 4.0, via Wikimedia Commons
The VT500C Shadow was the cruiser member of Honda's 1983 VT500 family, sharing the liquid-cooled 52-degree three-valve V-twin, six-speed box and shaft drive with the Euro and Ascot. It had an 18-inch front and 16-inch rear wheel and a stepped seat. The 1984 model got colour-matched tank and rear guard, and the 1985-86 bikes a round headlight, a two-piece seat with backrest, chromed engine covers and twin horns.
