| MODEL | HONDA VT 750C2B SHADOW PHANTOM 2010 - 2011 |
| Year | 2010 - 2011 |
| Engine Type | Four stroke, 52° V-twin, SOHC, 3 valves per cylinder |
| Displacement / Capacity | 745 cc / 45.5 cu in |
| Bore X Stroke | 79 x 76 mm / 3.1 x 3.0 in |
| Compression Ratio | 9.6:1 |
| Cooling System | Liquid cooled |
| Max Power | 33.5 kW / 44.9 hp @ 5500 rpm |
| Max Torque | 65 Nm / 47.9 lb-ft @ 3500 rpm |
| Ignition | Digital 3-D mapping, two spark plugs per cylinder |
| Induction | PGM-FI electronic fuel injection, 34 mm throttle body |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 5 speed, wide ratio |
| Clutch | Wet, multiplate with coil springs |
| Final Drive | Shaft |
| CHASSIS SPECS | |
| Frame | — |
| Front Suspension | 41 mm telescopic fork, 117 mm / 4.6 in travel |
| Rear Suspension | Dual shocks, 5-step spring preload adjustable, 90 mm / 3.5 in travel |
| Front Brakes | Single 296 mm disc, 2 piston caliper |
| Rear Brakes | 180 mm drum |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 655 mm / 25.8 in |
| Wheelbase | 1641 mm / 64.6 in |
| Ground Clearance | — |
| Dry Weight | — |
| Wet Weight | 251 kg / 549 lbs |
| WHEEL SPECS | |
| Front Tyre | 120/90-17 |
| Rear Tyre | 160/80-15 |
| FUEL SYSTEM | |
| Fuel Capacity | 14 Litres / 3.7 US gal |
| Fuel Consumption | 4.2 L/100 km / 56 US mpg |
| Top Speed | — |

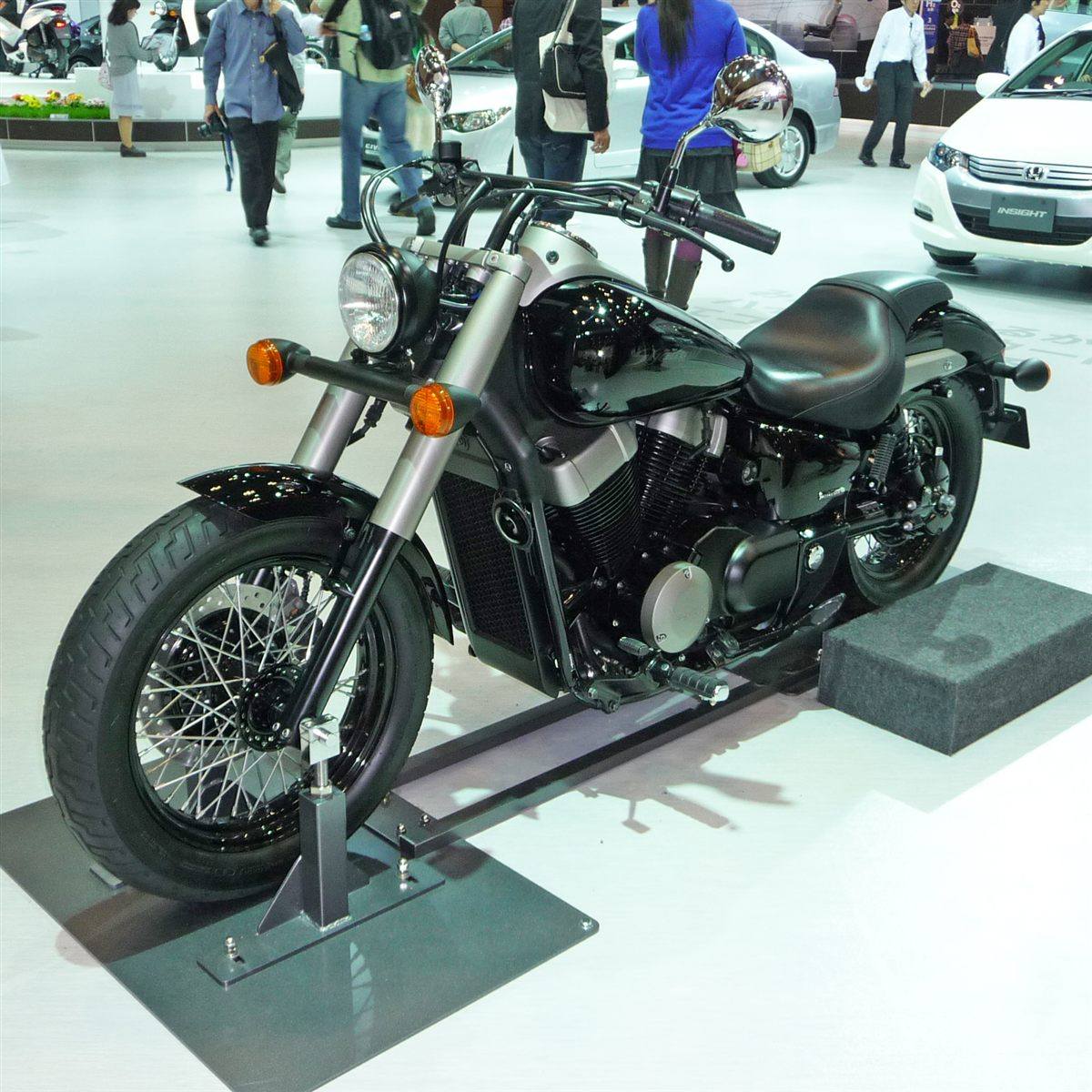

The Phantom was Honda's blacked-out, back-to-basics 750 cruiser, launched for 2010 with matte and gloss black finishes, a new handlebar bend and fork gaiters. It was among the first North American Shadows with fuel injection, pairing the 745 cc V-twin with shaft drive and a very low seat that suits newer and shorter riders.
