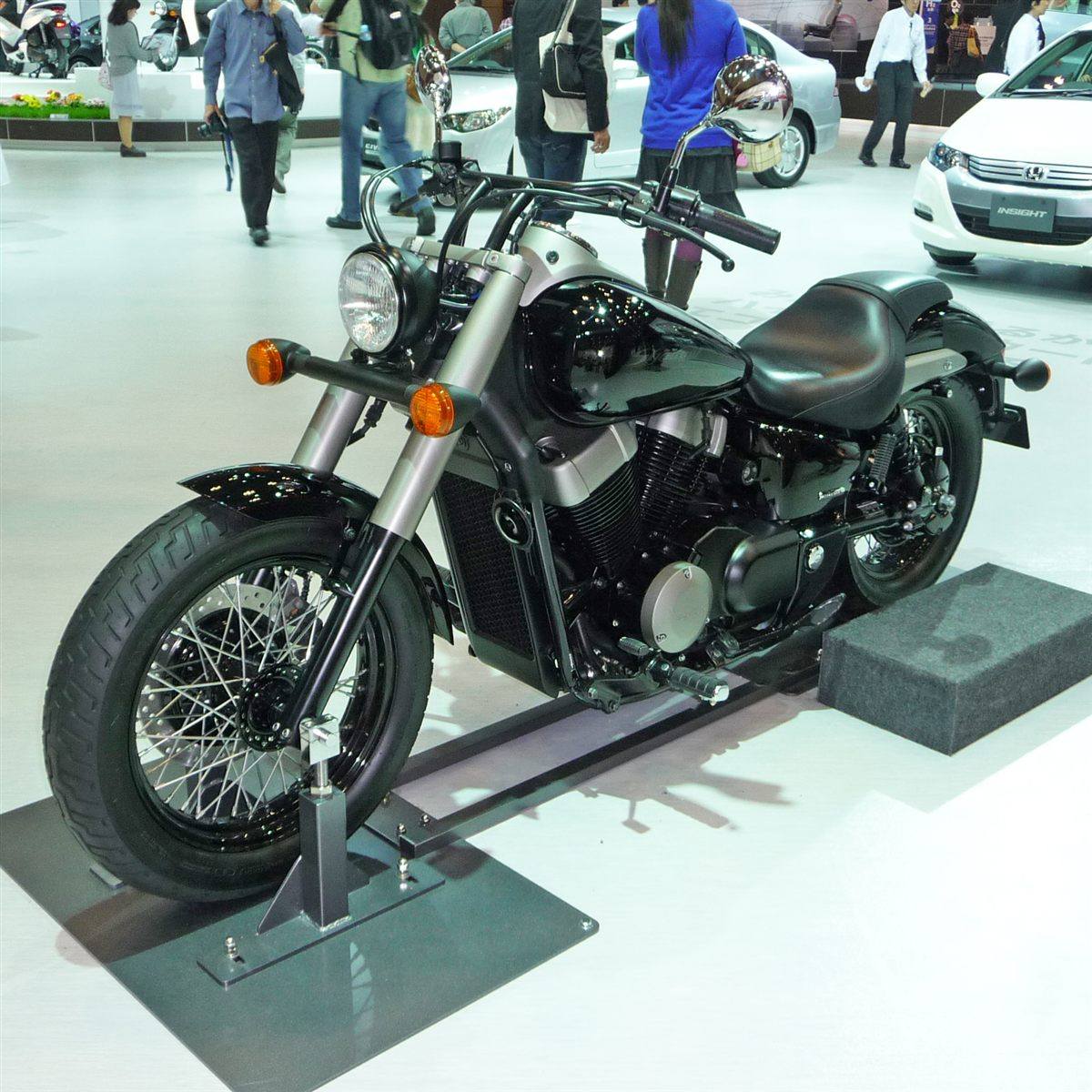

| MODEL | HONDA VT 750C2B SHADOW PHANTOM 2016 - 2017 |
| Year | 2016 - 2017 |
| Engine Type | Four stroke, 52° V-twin, SOHC, 3 valves per cylinder |
| Displacement / Capacity | 745 cc / 45.5 cu in |
| Bore X Stroke | 79 x 76 mm |
| Compression Ratio | 9.6:1 |
| Cooling System | Liquid cooled |
| Max Power | 33.5 kW / 44.9 hp @ 5500 rpm |
| Max Torque | 65 Nm / 6.6 kgf-m / 47.9 lb-ft @ 3500 rpm |
| Ignition | Digital 3-D mapping, two spark plugs per cylinder |
| Induction | PGM-FI electronic fuel injection with automatic choke, 34 mm throttle body |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | Wide ratio 5 speed |
| Clutch | Wet, multiplate with coil springs |
| Final Drive | Shaft |
| CHASSIS SPECS | |
| Frame | — |
| Front Suspension | 41 mm telescopic fork, 117 mm / 4.6 in travel |
| Rear Suspension | Dual shocks with 5-step adjustable spring preload, 90 mm / 3.5 in travel |
| Front Brakes | Single 296 mm disc, 2 piston caliper |
| Rear Brakes | Single 180 mm drum |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 655 mm / 25.8 in |
| Wheelbase | 1641 mm / 64.6 in |
| Ground Clearance | — |
| Dry Weight | — |
| Wet Weight | 251 kg / 549 lbs |
| WHEEL SPECS | |
| Front Tyre | 120/90-17 |
| Rear Tyre | 160/80-15 |
| FUEL SYSTEM | |
| Fuel Capacity | 14 Litres / 3.7 US gal (incl. 3.5 L reserve) |
| Fuel Consumption | 4.2 L/100 km / 23.8 km/l / 56 US mpg |
| Top Speed | — |
The 2016-17 Shadow Phantom continued as Honda's dark, minimalist 750 cruiser with blacked-out engine and frame, bobbed fenders and a very low seat. The fuel-injected 745 cc V-twin, five-speed gearbox, shaft drive and single front disc with rear drum were unchanged. It remained a friendly, low-maintenance choice for new and shorter riders.
