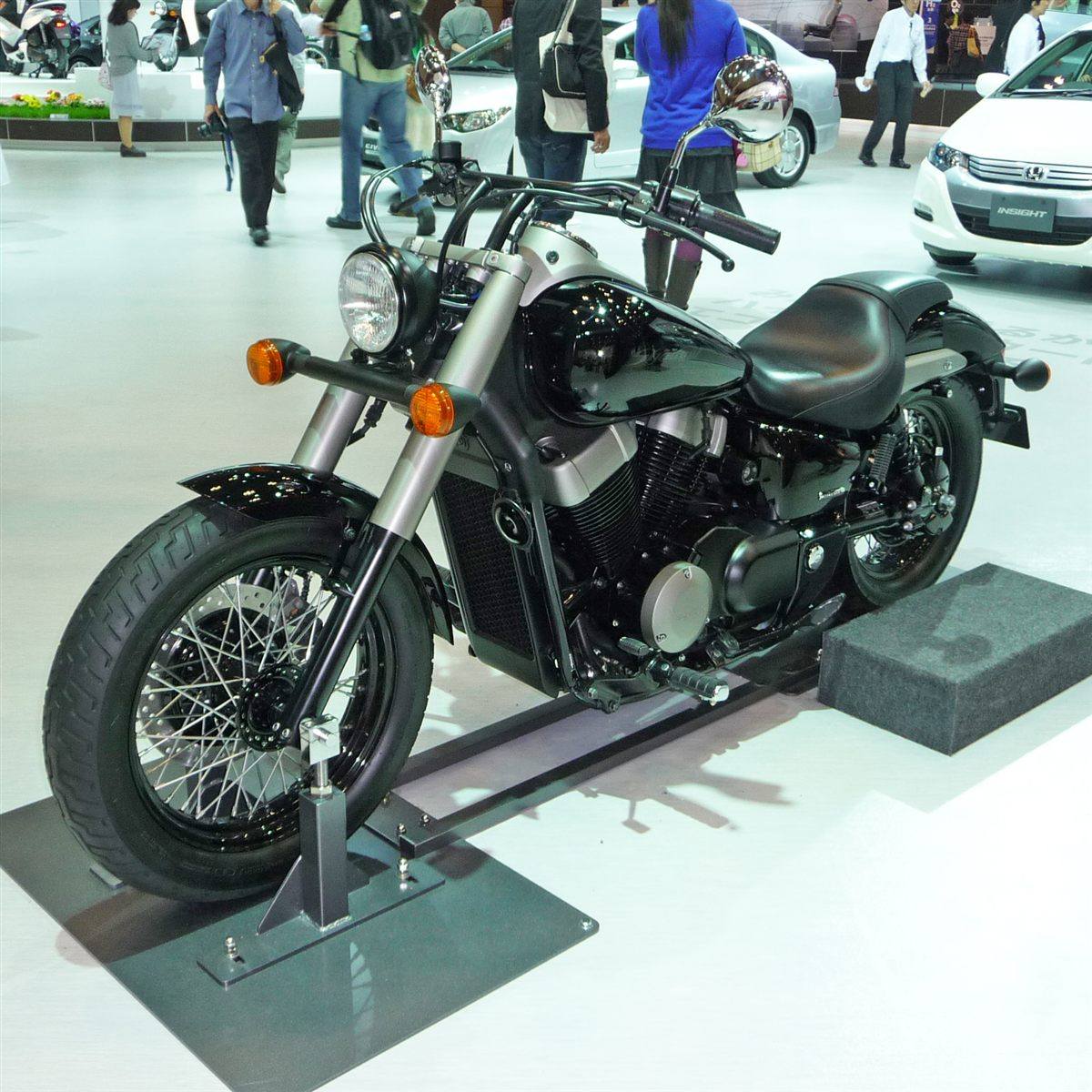

| MODEL | HONDA VT 750C2B SHADOW PHANTOM 2024 |
| Year | 2024 |
| Engine Type | Four stroke, 52° V-twin, SOHC, 3 valves per cylinder |
| Displacement / Capacity | 745 cc / 45.5 cu in |
| Bore X Stroke | 79 x 76 mm |
| Compression Ratio | 9.6:1 |
| Cooling System | Liquid cooled |
| Max Power | 33.5 kW / 44.9 hp @ 5500 rpm |
| Max Torque | 65 Nm / 6.6 kgf-m / 47.9 lb-ft @ 3500 rpm |
| Ignition | Full transistorized |
| Induction | PGM-FI electronic fuel injection with automatic choke, 34 mm throttle body |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | Wide ratio 5 speed |
| Clutch | Wet, multiplate with coil springs |
| Final Drive | Shaft |
| CHASSIS SPECS | |
| Frame | — |
| Front Suspension | 41 mm telescopic fork |
| Rear Suspension | Dual shocks, 5-position spring preload adjustable |
| Front Brakes | Single 296 mm disc, 2 piston caliper |
| Rear Brakes | Single 276 mm disc, 2 piston caliper (ABS optional) |
| DIMENSION SPECS | |
| Overall Length | 2362 mm / 93.0 in |
| Overall Width | 828 mm / 32.6 in |
| Overall Height | 1069 mm / 42.1 in |
| Seat Height | 650 mm / 25.6 in |
| Wheelbase | 1638 mm / 64.5 in |
| Ground Clearance | 127 mm / 5.0 in |
| Dry Weight | — |
| Wet Weight | 246 kg / 543 lbs (ABS: 251 kg / 553 lbs) |
| WHEEL SPECS | |
| Front Tyre | 120/90-17 |
| Rear Tyre | 160/80-15 |
| FUEL SYSTEM | |
| Fuel Capacity | 14 Litres / 3.7 US gal (incl. 3.5 L reserve) |
| Fuel Consumption | 4.2 L/100 km / 23.8 km/l / 56 US mpg |
| Top Speed | — |
The 2024 Shadow Phantom was the first significant update since the model arrived for 2010. The rear drum gave way to a 276 mm disc so optional ABS now covers both wheels, and the bike gained a solo seat, a higher, more forward handlebar, retro fork gaiters, LED indicators, new Bridgestone tyres and fresh tank graphics. The blacked-out 745 cc fuel-injected V-twin and shaft drive were carried over unchanged.
