| MODEL | HONDA VT 750RS SHADOW (VT 750S) 2010 - 2011 |
| Year | 2010 - 2011 |
| Engine Type | Four stroke, 52° V-twin, SOHC, 3 valves per cylinder |
| Displacement / Capacity | 745 cc / 45.5 cu in |
| Bore X Stroke | 79 x 76 mm / 3.1 x 3.0 in |
| Compression Ratio | 9.6:1 |
| Cooling System | Liquid cooled |
| Max Power | 32.8 kW / 44.9 hp @ 5500 rpm |
| Max Torque | 64 Nm / 47.2 lb-ft @ 3500 rpm |
| Ignition | Fully transistorised electronic |
| Induction | PGM-FI electronic fuel injection, 34 mm throttle bore |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 5 speed |
| Clutch | Wet, multiplate with coil springs |
| Final Drive | O-ring sealed chain |
| CHASSIS SPECS | |
| Frame | Double-cradle steel with square-section backbone and forged steel pivot plates |
| Front Suspension | 41 mm telescopic fork, 116 mm / 4.6 in travel |
| Rear Suspension | Dual shocks, 5-step spring preload adjustable, 90 mm / 3.5 in travel |
| Front Brakes | Single 296 mm disc, 2 piston caliper |
| Rear Brakes | 180 mm drum |
| DIMENSION SPECS | |
| Overall Length | 2510 mm / 98.8 in |
| Overall Width | 920 mm / 36.2 in |
| Overall Height | 1125 mm / 44.3 in |
| Seat Height | 747 mm / 29.4 in |
| Wheelbase | 1562 mm / 61.5 in |
| Ground Clearance | 131 mm / 5.1 in |
| Dry Weight | — |
| Wet Weight | 229.5 kg / 507 lbs |
| WHEEL SPECS | |
| Front Tyre | 100/90-19 |
| Rear Tyre | 150/80-16 |
| FUEL SYSTEM | |
| Fuel Capacity | 10.6 Litres / 2.8 US gal |
| Fuel Consumption | — |
| Top Speed | — |
Photo: Khaosaming, CC BY-SA 3.0, via Wikimedia Commons
Photo: Nevilleg, CC BY-SA 4.0, via Wikimedia Commons

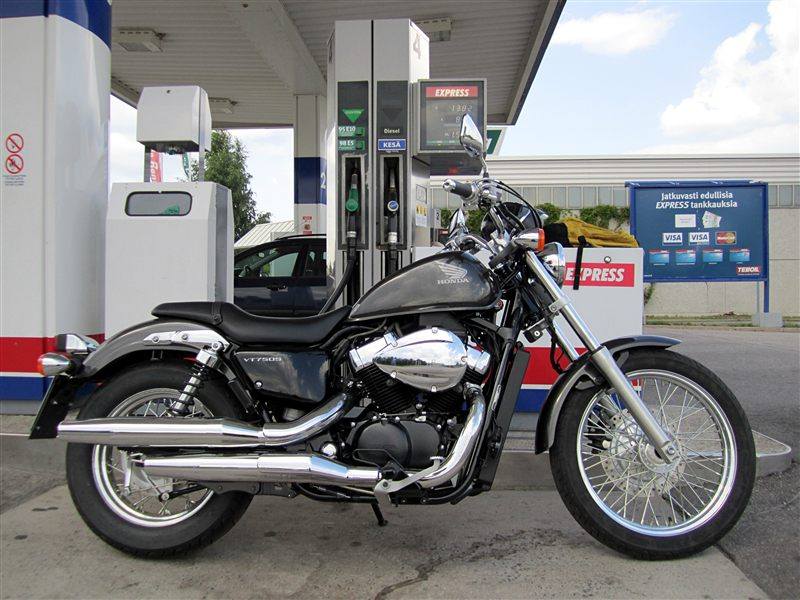

The Shadow RS (VT750S in export markets) was a retro roadster spin on the 750 V-twin, with a more upright riding position, a shorter wheelbase, a 19-inch front wheel and a slim tank. Unlike the other fuel-injected Shadows it used chain final drive, and it was pitched as an all-rounder for commuting and weekend riding rather than as a laid-back cruiser.
