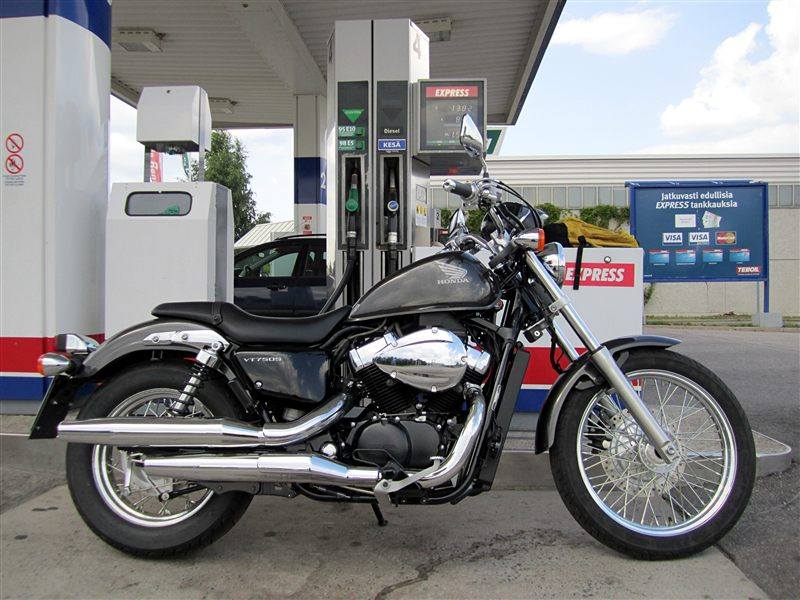

| MODEL | HONDA VT 750RS / S SHADOW 2012 - 2013 |
| Year | 2012 - 2013 |
| Engine Type | Four stroke, 52° V-twin, SOHC, 3 valves per cylinder |
| Displacement / Capacity | 745 cc / 45.5 cu in |
| Bore X Stroke | 79 x 76 mm |
| Compression Ratio | 9.6:1 |
| Cooling System | Liquid cooled |
| Max Power | 32.1 kW / 43 hp @ 5500 rpm |
| Max Torque | 60.5 Nm / 44 lb-ft @ 3000 rpm |
| Ignition | Solid-state with electronic advance, two spark plugs per cylinder |
| Induction | PGM-FI electronic fuel injection with automatic choke, 34 mm throttle bore |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 5 speed |
| Clutch | Wet, multiplate with coil springs |
| Final Drive | O-ring sealed chain |
| CHASSIS SPECS | |
| Frame | — |
| Front Suspension | 41 mm telescopic fork, 129.5 mm / 5.0 in travel |
| Rear Suspension | Dual shocks, 5-way spring preload adjustable, 90 mm / 3.5 in travel |
| Front Brakes | Single 296 mm disc, 2 piston caliper |
| Rear Brakes | 180 mm drum |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 737 mm / 29.0 in |
| Wheelbase | 1562 mm / 61.5 in |
| Ground Clearance | — |
| Dry Weight | — |
| Wet Weight | 229.5 kg / 507 lbs |
| WHEEL SPECS | |
| Front Tyre | 100/90-19 |
| Rear Tyre | 150/80-16 |
| FUEL SYSTEM | |
| Fuel Capacity | 10 Litres / 2.6 US gal |
| Fuel Consumption | — |
| Top Speed | — |
The VT750RS/VT750S is the roadster member of the 750 Shadow family: same fuel-injected 52-degree V-twin, but with chain final drive, a 19-inch front wheel, higher footpegs, a flatter seat and more upright bars. The result is a lighter, more standard-style riding position than the Aero or Phantom, with a small peanut tank and bar-mounted instruments. For 2012-13 it continued with little change, aimed at riders who wanted classic V-twin character without a full cruiser stance.
