| MODEL | HONDA VTR 250 2009 - 2010 |
| Year | 2009 - 2010 |
| Engine Type | Four stroke, 90° V-twin, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 249 cc / 15.2 cu in |
| Bore X Stroke | 60 x 44 mm / 2.36 x 1.73 in |
| Compression Ratio | 11.0:1 |
| Cooling System | Liquid cooled |
| Max Power | 23.3 kW / 32 hp @ 10500 rpm |
| Max Torque | 23.5 Nm / 17.3 lb-ft @ 8500 rpm |
| Ignition | Full transistorised battery ignition |
| Induction | PGM-FI electronic fuel injection, 32 mm throttle bodies |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 5-speed |
| Clutch | Wet, multiple plate, coil springs |
| Final Drive | Chain, 520 |
| CHASSIS SPECS | |
| Frame | Diamond (steel trellis) |
| Front Suspension | 41 mm telescopic fork |
| Rear Suspension | Pro-Link swingarm, single shock |
| Front Brakes | Single 296 mm disc, 2-piston caliper |
| Rear Brakes | Single disc, 1-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2040 mm / 80.3 in |
| Overall Width | 720 mm / 28.3 in |
| Overall Height | 1050 mm / 41.3 in |
| Seat Height | 780 mm / 30.7 in |
| Wheelbase | 1405 mm / 55.3 in |
| Ground Clearance | 165 mm / 6.5 in |
| Dry Weight | 139 kg / 306.4 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 110/70-17 |
| Rear Tyre | 140/70-17 |
| FUEL SYSTEM | |
| Fuel Capacity | 13 Litres / 3.4 US gal |
| Fuel Consumption | — |
| Top Speed | — |

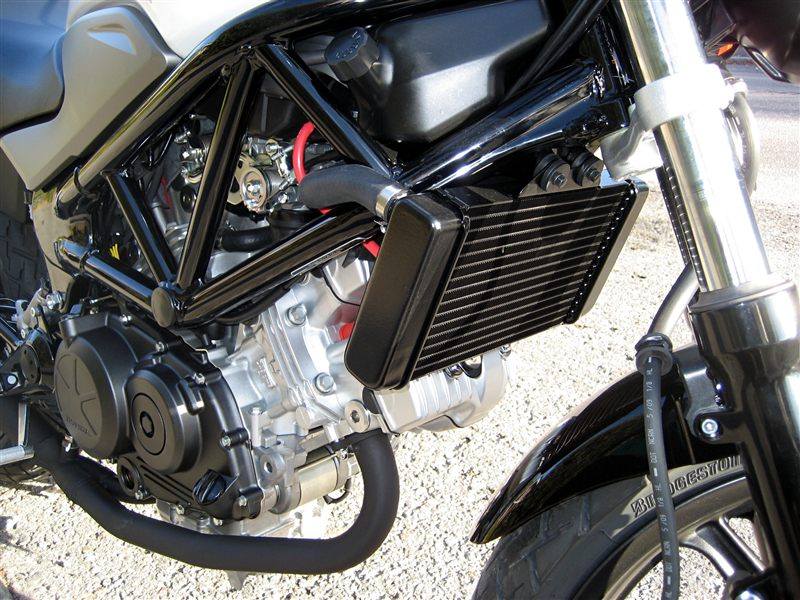

Photo: Khaosaming, CC BY-SA 3.0, via Wikimedia Commons

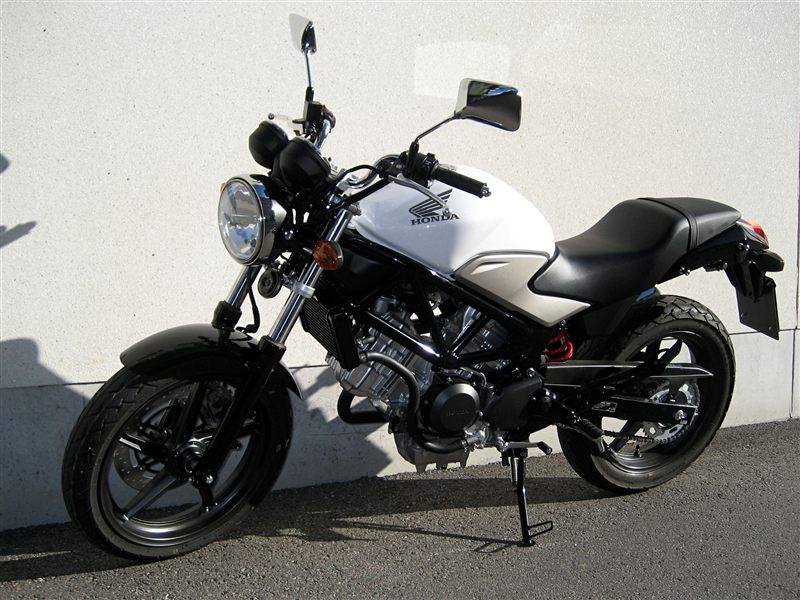

Photo: Khaosaming, CC BY-SA 3.0, via Wikimedia Commons
The 2009 VTR250 was the first big update of the naked model: PGM-FI fuel injection replaced the carburettors, the airbox moved under the tank to keep the bike slim, and the rear end and midsection were restyled. Suspension, wheels, brakes and the instruments carried over. The fuel-injected model was also offered in Europe and returned to Australia in mid-2009.
