| MODEL | HONDA VTX 1800C 2007 |
| Year | 2007 |
| Engine Type | Four stroke, 52° V-twin, SOHC, 3 valves per cylinder |
| Displacement / Capacity | 1795 cc / 109.5 cu in |
| Bore X Stroke | 101 x 112 mm |
| Compression Ratio | 9.0:1 |
| Cooling System | Liquid cooled |
| Max Power | 78 kW / 107 hp @ 5000 rpm |
| Max Torque | 163 Nm / 120.2 lb-ft @ 3000 rpm |
| Ignition | Solid-state digital, two spark plugs per cylinder |
| Induction | PGM-FI fuel injection |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Dry sump |
| Gear Box | 5 Speed |
| Clutch | — |
| Final Drive | Shaft |
| CHASSIS SPECS | |
| Frame | Steel, double cradle |
| Front Suspension | 45 mm inverted fork |
| Rear Suspension | Dual shocks with five-position spring preload adjustment, 100 mm / 3.9 in travel |
| Front Brakes | 2 x 296 mm discs, 3-piston calipers |
| Rear Brakes | Single 316 mm disc, 3-piston caliper |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 708 mm / 27.9 in |
| Wheelbase | 1717 mm / 67.6 in |
| Ground Clearance | — |
| Dry Weight | 319.7 kg / 714 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 130/70 R18 |
| Rear Tyre | 180/70 R16 |
| FUEL SYSTEM | |
| Fuel Capacity | 15.5 Litres / 4.3 US gal |
| Fuel Consumption | — |
| Top Speed | — |

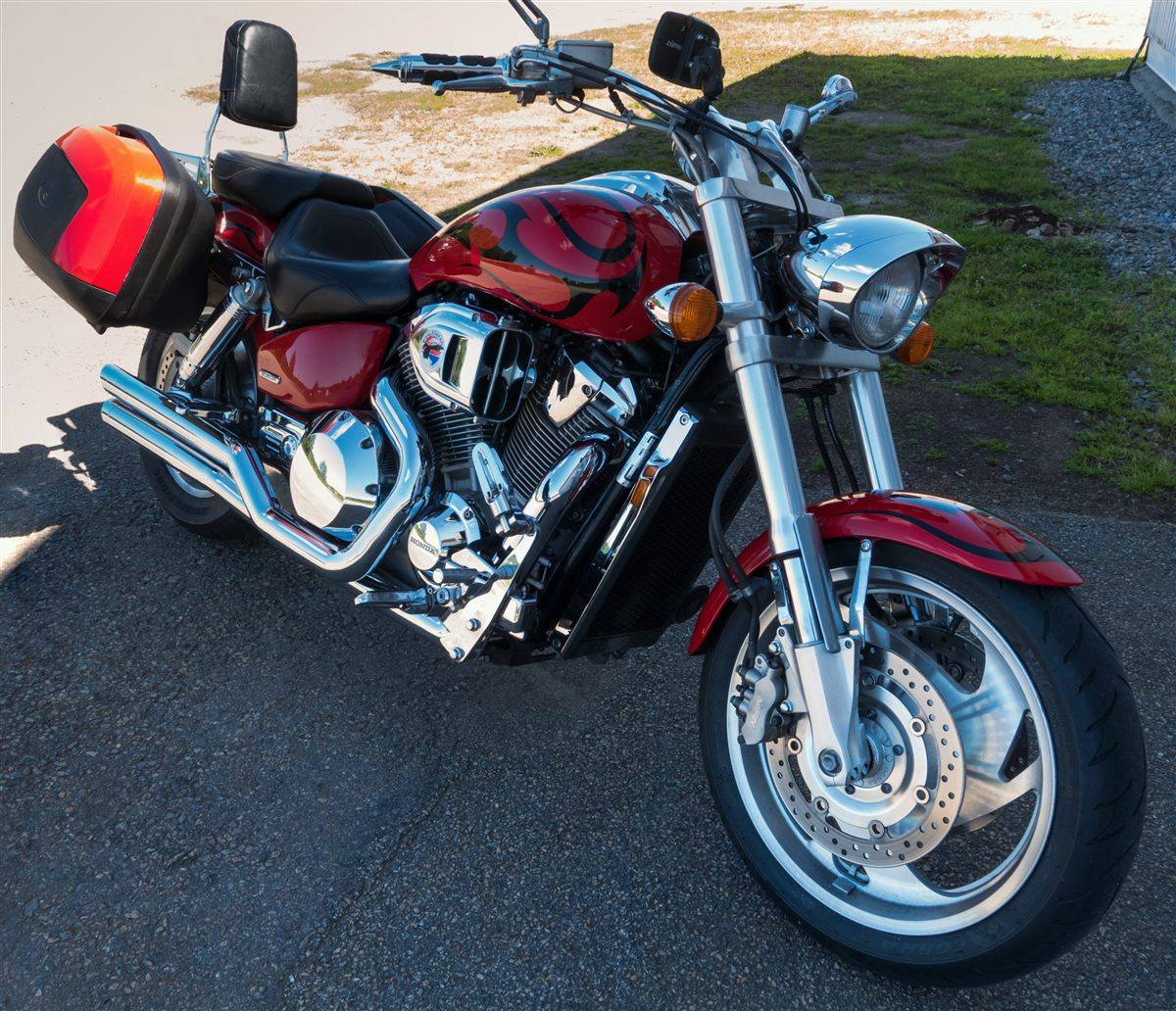

Photo: W.carter, CC0, via Wikimedia Commons

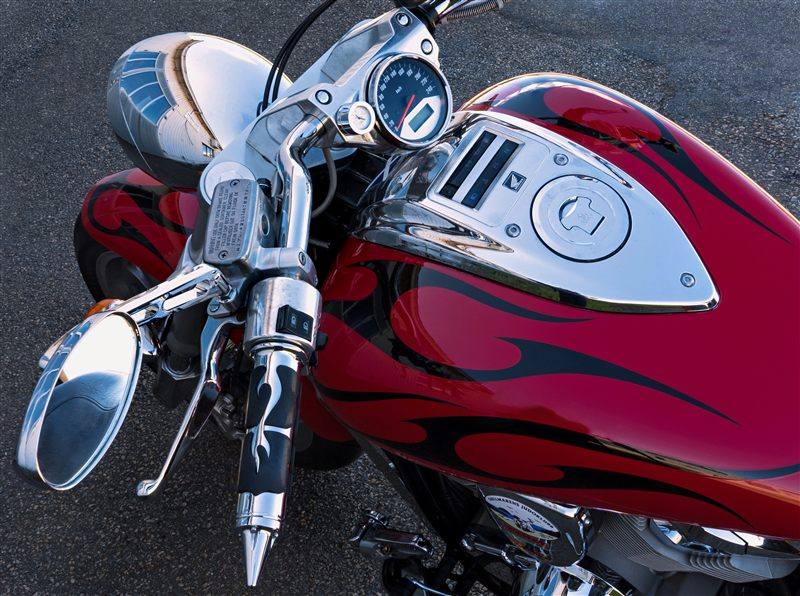

Photo: W.carter, CC0, via Wikimedia Commons
The 2007 VTX1800C was the last year of Honda's Classic-styled VTX, still using the fuel-injected 1795 cc dual-plug V-twin, five-speed gearbox and shaft drive. It kept the drag-bar, chopped-fender street-rod look that had defined the model since 2002 before the C was dropped from the final 2008 line-up.
