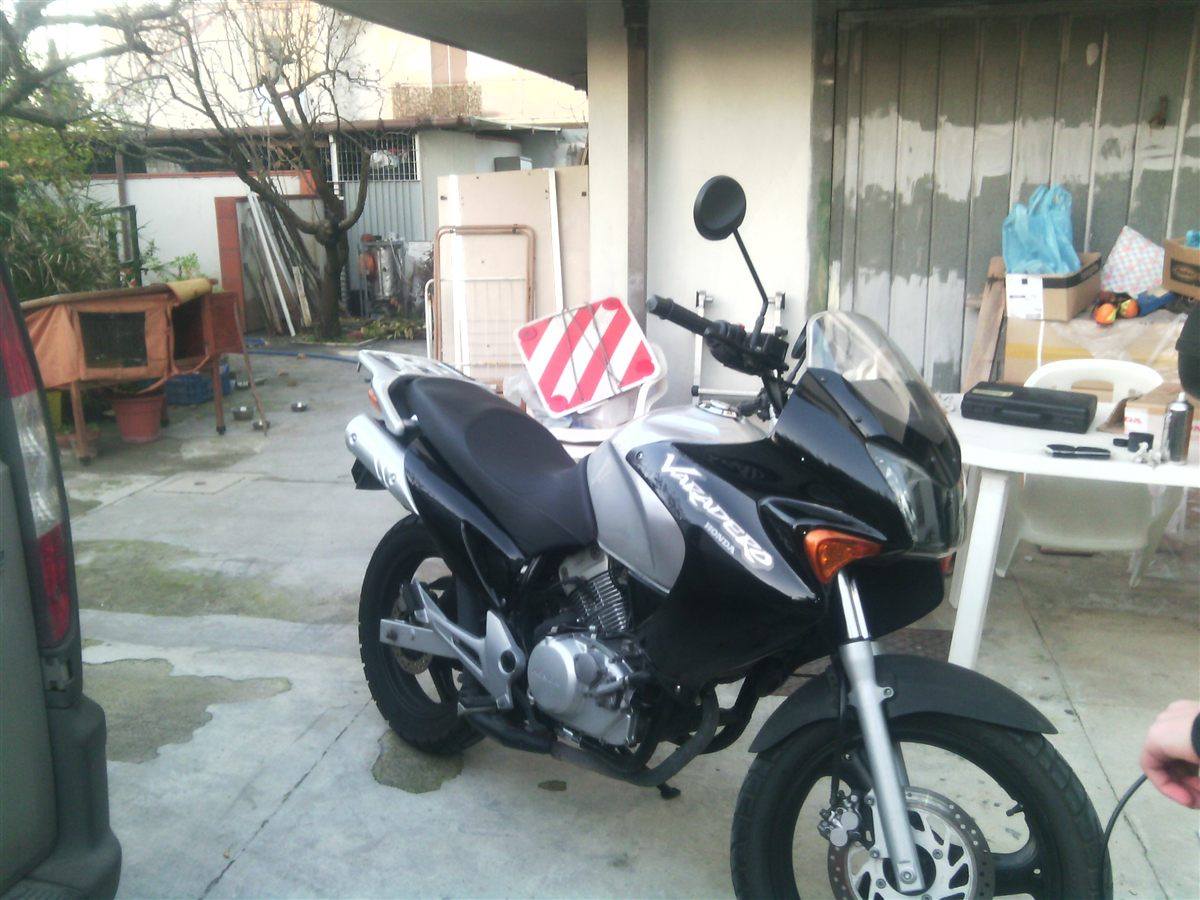

| MODEL | HONDA XL 125V VARADERO 2011 |
| Year | 2011 |
| Engine Type | Four stroke, 90° V-twin, SOHC, 2 valves per cylinder |
| Displacement / Capacity | 124 cc / 7.6 cu in |
| Bore X Stroke | 42 x 45 mm |
| Compression Ratio | 11.8:1 |
| Cooling System | Liquid cooled |
| Max Power | 10.6 kW / 14.2 hp @ 11000 rpm |
| Max Torque | 10 Nm / 7.4 lb-ft @ 8500 rpm |
| Ignition | Digital transistorised |
| Induction | PGM-FI electronic fuel injection, 30 mm throttle bore |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Wet sump |
| Gear Box | 5 Speed |
| Clutch | Wet, cable operated |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Steel, double cradle |
| Front Suspension | 35 mm telescopic forks, 150 mm / 5.9 in travel |
| Rear Suspension | Pro-Link single shock, preload adjustable, 150 mm / 5.9 in travel |
| Front Brakes | Single 276 mm disc, 2-piston caliper |
| Rear Brakes | Single 220 mm disc, 1-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2150 mm / 84.6 in |
| Overall Width | — |
| Overall Height | 1250 mm / 49.2 in |
| Seat Height | 802 mm / 31.6 in |
| Wheelbase | 1450 mm / 57.1 in |
| Ground Clearance | 190 mm / 7.5 in |
| Dry Weight | 152 kg / 335 lbs |
| Wet Weight | 169 kg / 373 lbs |
| WHEEL SPECS | |
| Front Tyre | 100/90-18 |
| Rear Tyre | 130/80-17 |
| FUEL SYSTEM | |
| Fuel Capacity | 16.8 Litres / 4.4 US gal |
| Fuel Consumption | 3.3 L/100 km |
| Top Speed | 117 km/h / 73 mph |
By 2011 the Varadero 125 was a mature design, still the fuel-injected, Euro III version introduced in 2007. It remained a versatile road-biased adventure-style 125 with room for a passenger and a long range from its 16.8-litre tank. Honda kept building it until 2015.
