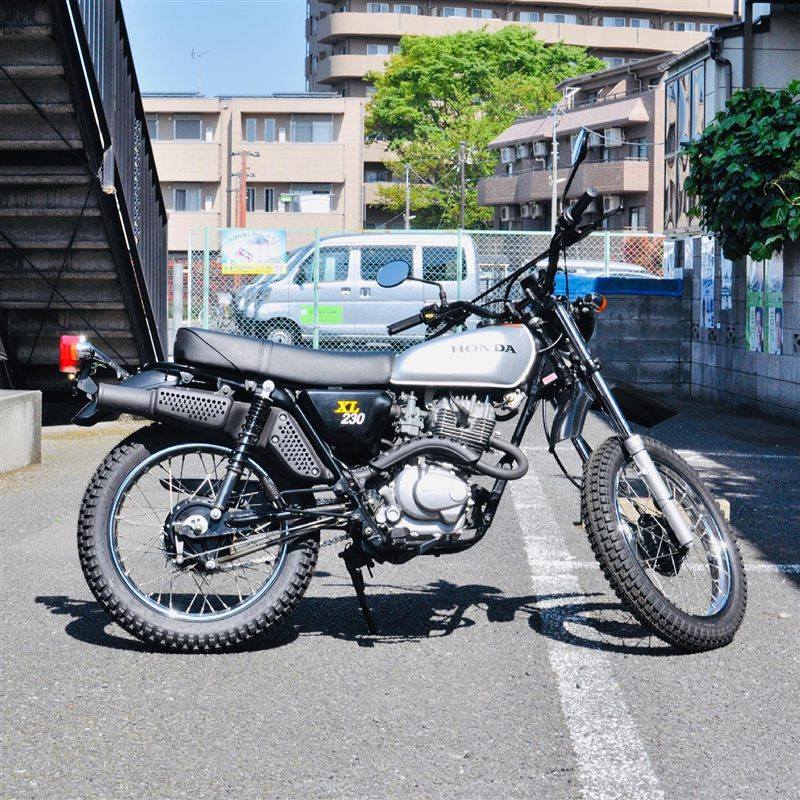

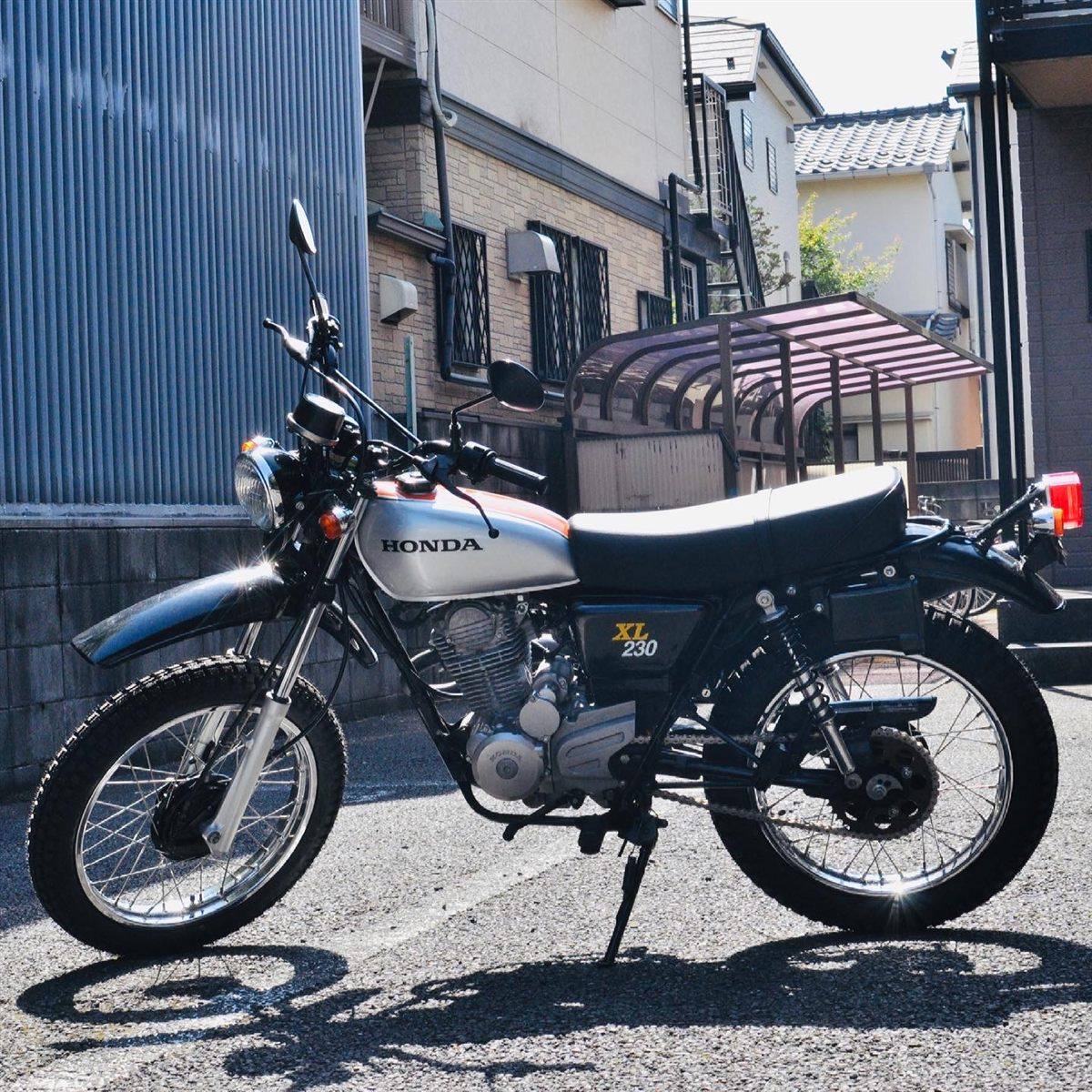

| MODEL | HONDA XL 230 2002 - 2005 |
| Year | 2002 - 2005 |
| Engine Type | Four stroke, single cylinder, SOHC, 2 valve |
| Displacement / Capacity | 223 cc / 13.6 cu in |
| Bore X Stroke | 65.5 x 66.2 mm |
| Compression Ratio | 9.0:1 |
| Cooling System | Air cooled |
| Max Power | 13 kW / 18 PS @ 7000 rpm |
| Max Torque | 19 Nm / 1.9 kgf-m @ 6000 rpm |
| Ignition | CDI |
| Induction | Keihin carburettor |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Dry sump |
| Gear Box | 5 Speed |
| Clutch | Wet multi-plate, coil spring |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | — |
| Front Suspension | Telescopic forks |
| Rear Suspension | Swinging arm |
| Front Brakes | Drum |
| Rear Brakes | Drum |
| DIMENSION SPECS | |
| Overall Length | 2025 mm / 79.7 in |
| Overall Width | 835 mm / 32.9 in |
| Overall Height | 1115 mm / 43.9 in |
| Seat Height | 800 mm / 31.5 in |
| Wheelbase | 1305 mm / 51.4 in |
| Ground Clearance | 225 mm / 8.9 in |
| Dry Weight | 113 kg / 249 lbs |
| Wet Weight | 120 kg / 265 lbs |
| WHEEL SPECS | |
| Front Tyre | — |
| Rear Tyre | — |
| FUEL SYSTEM | |
| Fuel Capacity | — |
| Fuel Consumption | 40 km/L |
| Top Speed | — |
The XL230 was a Japan-market retro trail bike launched in 2002, styled after Honda's 1970s XL models with a slim tank, round headlight and upswept exhaust. Its simple air-cooled 223 cc single was tuned for low- and mid-range pull, and it was aimed at young riders wanting an easy, light bike for town and touring. Anti-theft measures were part of the package, and it was replaced by the XR230 after 2005.
