| MODEL | HONDA XL 600LM LIMITED EDITION 1986 |
| Year | 1986 |
| Engine Type | Four stroke, single cylinder, SOHC, 4 valve, RFVC radial valve |
| Displacement / Capacity | 591 cc / 36.0 cu in |
| Bore X Stroke | 97 x 80 mm |
| Compression Ratio | 9.0:1 |
| Cooling System | Air cooled |
| Max Power | 33 kW / 45 hp @ 6500 rpm |
| Max Torque | 48.8 Nm / 36 lb-ft @ 5000 rpm |
| Ignition | Solid state CD |
| Induction | 2 x 28 mm piston valve carburettors |
| Start System | Electric & primary kick with automatic compression release |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 5 Speed |
| Clutch | — |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | — |
| Front Suspension | 39 mm Showa air-adjustable leading-axle forks, 220 mm / 9.0 in travel |
| Rear Suspension | Pro-Link with adjustable rebound damping, 203 mm / 8.0 in travel |
| Front Brakes | Single 240 mm disc, 2 piston caliper |
| Rear Brakes | 140 mm drum |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 860 mm / 33.8 in |
| Wheelbase | 1420 mm / 55.9 in |
| Ground Clearance | 274 mm / 10.8 in |
| Dry Weight | 155 kg / 341.7 lbs |
| Wet Weight | 189 kg / 416.7 lbs |
| WHEEL SPECS | |
| Front Tyre | 3.00-21 |
| Rear Tyre | 5.10-17 |
| FUEL SYSTEM | |
| Fuel Capacity | 28 Litres / 7.4 US gal |
| Fuel Consumption | — |
| Top Speed | — |

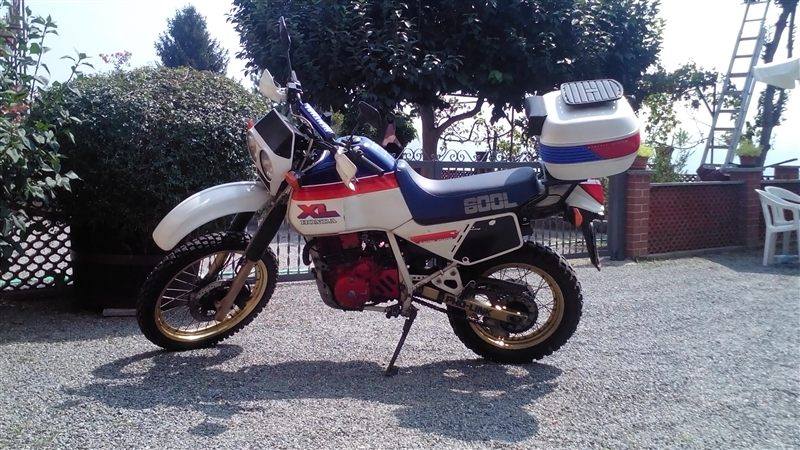

Photo: Lykos It, CC BY-SA 4.0, via Wikimedia Commons
Photo: Lykos It, CC BY-SA 4.0, via Wikimedia Commons
The 1986 XL600LM carried on unchanged in substance from the 1985 bike: a rally-replica trail bike built around the air-cooled RFVC 591 cc single, with electric plus kick starting, a 28-litre tank, twin-headlamp fairing and Pro-Link rear end. It suited long-distance touring on dirt and tar more than hard off-road riding, given its weight of almost 190 kg fuelled.
