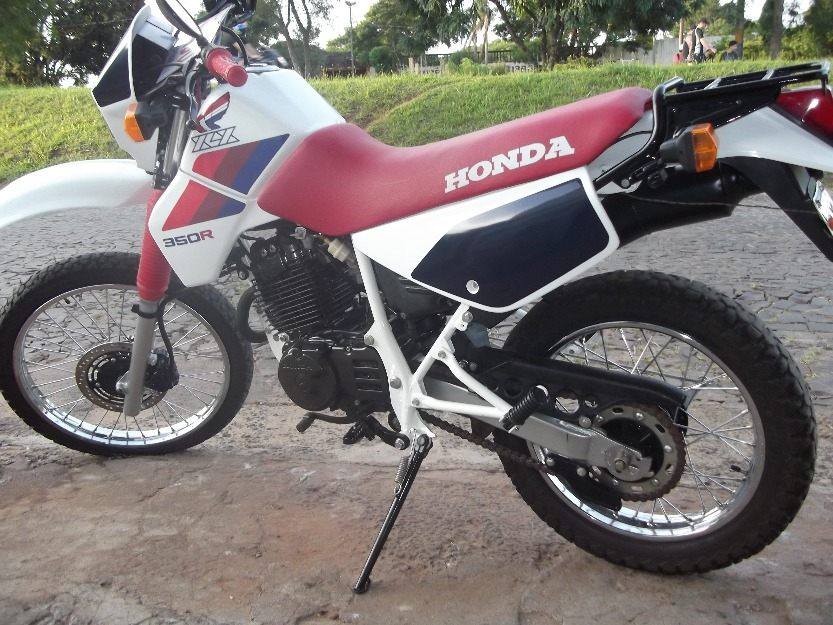

| MODEL | HONDA XLX 350R 1987 - 1990 |
| Year | 1987 - 1990 |
| Engine Type | Four stroke, single cylinder, SOHC, 4 valve |
| Displacement / Capacity | 339 cc / 26.7 cu in |
| Bore X Stroke | 84 x 61.3 mm |
| Compression Ratio | 9.5:1 |
| Cooling System | Air cooled |
| Max Power | 22 kW / 30 hp @ 7500 rpm |
| Max Torque | 28.3 Nm / 20.9 lb-ft @ 6500 rpm |
| Ignition | CDI |
| Induction | 2 x 26 mm Keihin carburettors |
| Start System | — |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6 Speed |
| Clutch | — |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | — |
| Front Suspension | 41 mm air-adjustable forks, 230 mm / 9.1 in travel |
| Rear Suspension | Single gas shock, fully adjustable, 220 mm / 8.6 in travel |
| Front Brakes | Single disc |
| Rear Brakes | Drum |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | 800 mm / 31.5 in |
| Overall Height | — |
| Seat Height | — |
| Wheelbase | 1410 mm / 55.6 in |
| Ground Clearance | — |
| Dry Weight | — |
| Wet Weight | 137 kg / 302 lbs |
| WHEEL SPECS | |
| Front Tyre | 3.00-21 |
| Rear Tyre | 4.60-17 |
| FUEL SYSTEM | |
| Fuel Capacity | 11 Litres / 2.9 US gal |
| Fuel Consumption | — |
| Top Speed | 138 km/h / 86 mph |
The XLX 350R was Honda's Brazilian-built big trail bike, launched in April 1987 with styling borrowed from the export 600 cc XLs. It used the 339 cc four-valve single from the XL350R, rated at 30 hp, plus a front disc brake that coped well in wet off-road conditions. It was dropped in 1991 after roughly 40,000 units, making way for the NX 350 Sahara.
