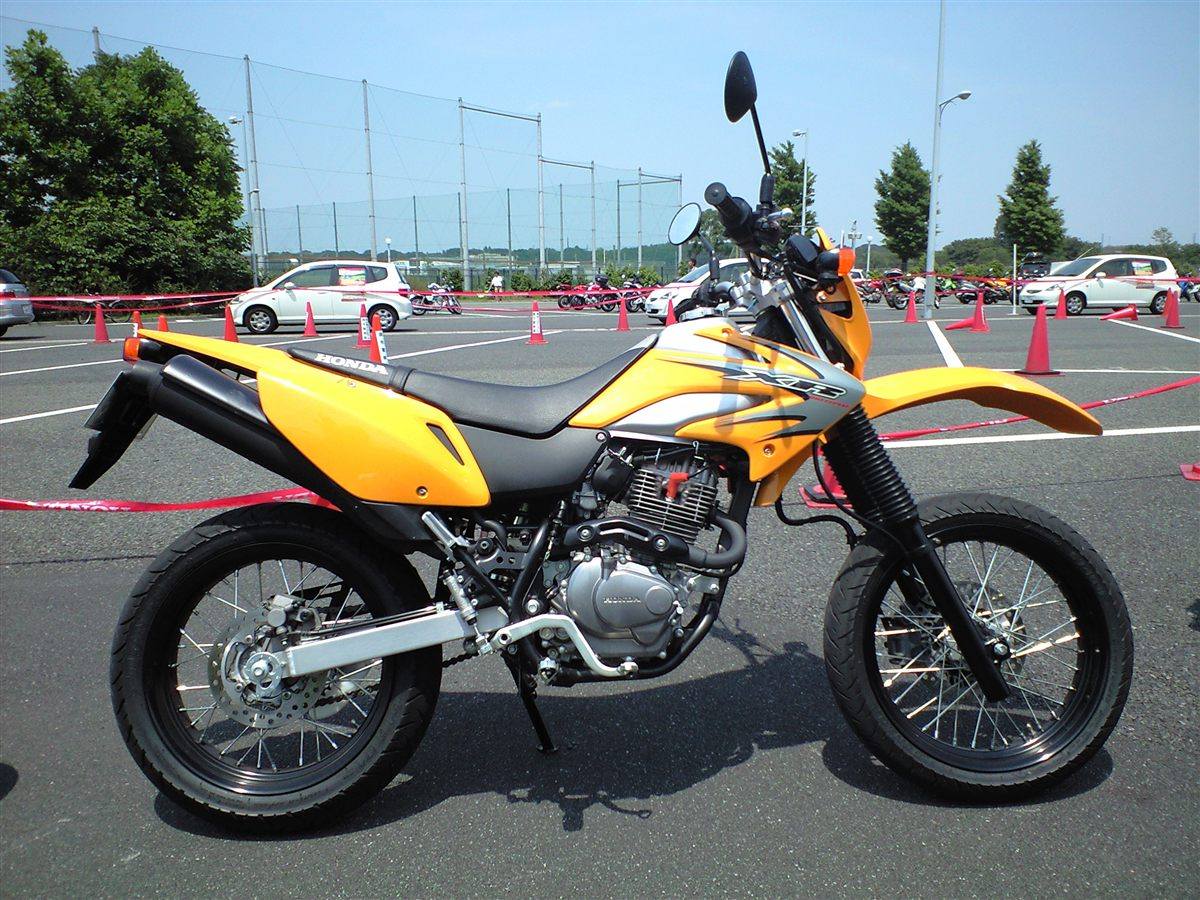

| MODEL | HONDA XR 230 MOTARD 2008 - 2012 |
| Year | 2008 - 2012 |
| Engine Type | Four-stroke, single cylinder, SOHC (MD33E) |
| Displacement / Capacity | 223 cc / 13.6 cu in |
| Bore X Stroke | 65.5 x 66.2 mm |
| Compression Ratio | 9.0:1 |
| Cooling System | Air cooled |
| Max Power | 13 kW / 18 PS @ 7500 rpm |
| Max Torque | 18 Nm / 1.8 kgf-m / 13.3 lb-ft @ 5500 rpm |
| Ignition | CDI battery ignition |
| Induction | Keihin carburettor (VE3AF) |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Pressure feed and splash |
| Gear Box | 6-speed constant mesh, return shift |
| Clutch | Wet multiplate, coil spring |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Semi double cradle |
| Front Suspension | Telescopic fork |
| Rear Suspension | Swingarm, Pro-Link |
| Front Brakes | Single hydraulic disc, 2-piston caliper |
| Rear Brakes | Single hydraulic disc |
| DIMENSION SPECS | |
| Overall Length | 2015 mm / 79.3 in |
| Overall Width | 815 mm / 32.1 in |
| Overall Height | 1080 mm / 42.5 in |
| Seat Height | 800 mm / 31.5 in |
| Wheelbase | 1340 mm / 52.8 in |
| Ground Clearance | 235 mm / 9.3 in |
| Dry Weight | — |
| Wet Weight | 125 kg / 275.6 lbs |
| WHEEL SPECS | |
| Front Tyre | 110/70-17M/C 54H |
| Rear Tyre | 130/70-17M/C 62H |
| FUEL SYSTEM | |
| Fuel Capacity | 8.7 Litres / 2.3 US gal |
| Fuel Consumption | 46.0 km/L (60 km/h steady-speed test) |
| Top Speed | — |
The XR230 Motard turned Honda's light XR230 trail bike into a small supermoto for Japanese city riding, launched in March 2008. It swapped the 21/18-inch off-road wheels for 17-inch road tyres, used a 3 mm longer rear shock and steeper steering geometry to load the front, and added an aluminium bar, two-tone seat, black rims and fork tubes and a matt black frame. The 223 cc engine received the same catalyst and low-to-midrange tuning as the 2008 XR230.
