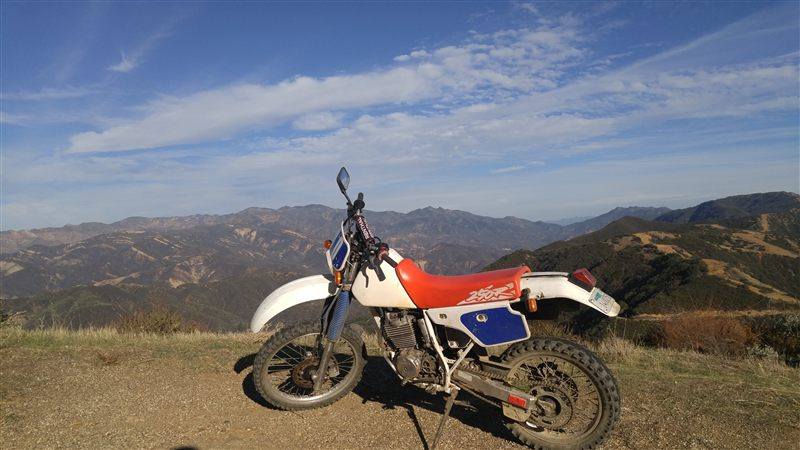

| MODEL | HONDA XR 250R 1993 |
| Year | 1993 |
| Engine Type | Four-stroke, single cylinder, SOHC, 4 valve |
| Displacement / Capacity | 249 cc / 15.1 cu in |
| Bore X Stroke | 73 x 59.5 mm |
| Compression Ratio | 10.0:1 |
| Cooling System | Air cooled |
| Max Power | 21.9 kW / 30 hp @ 9000 rpm |
| Max Torque | 24.5 Nm @ 7500 rpm |
| Ignition | CDI |
| Induction | Single 30 mm carburettor |
| Start System | Kick |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6 Speed |
| Clutch | — |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | — |
| Front Suspension | 41 mm air-assisted telescopic forks, 280 mm / 11.0 in travel |
| Rear Suspension | Pro-Link, adjustable compression and rebound, 280 mm / 11.0 in travel |
| Front Brakes | Single 240 mm disc, 2 piston caliper |
| Rear Brakes | Single 220 mm disc, 1 piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2035 mm / 80.1 in |
| Overall Width | 965 mm / 37.9 in |
| Overall Height | 1100 mm / 43.3 in |
| Seat Height | 905 mm / 35.6 in |
| Wheelbase | 1420 mm / 55.9 in |
| Ground Clearance | 315 mm / 12.4 in |
| Dry Weight | 108 kg / 238 lbs |
| Wet Weight | 112 kg / 247 lbs |
| WHEEL SPECS | |
| Front Tyre | 80/100-21 |
| Rear Tyre | 110/100-18 |
| FUEL SYSTEM | |
| Fuel Capacity | 9 Litres / 2.4 US gal |
| Fuel Consumption | — |
| Top Speed | — |
The 1993 XR250R was another carry-over year for the second-generation 73 x 59.5 mm model, with the same kick-start RFVC single, single carburettor and twin-disc, long-travel chassis. It suited riders who wanted a light, forgiving off-roader for trails and enduros.
