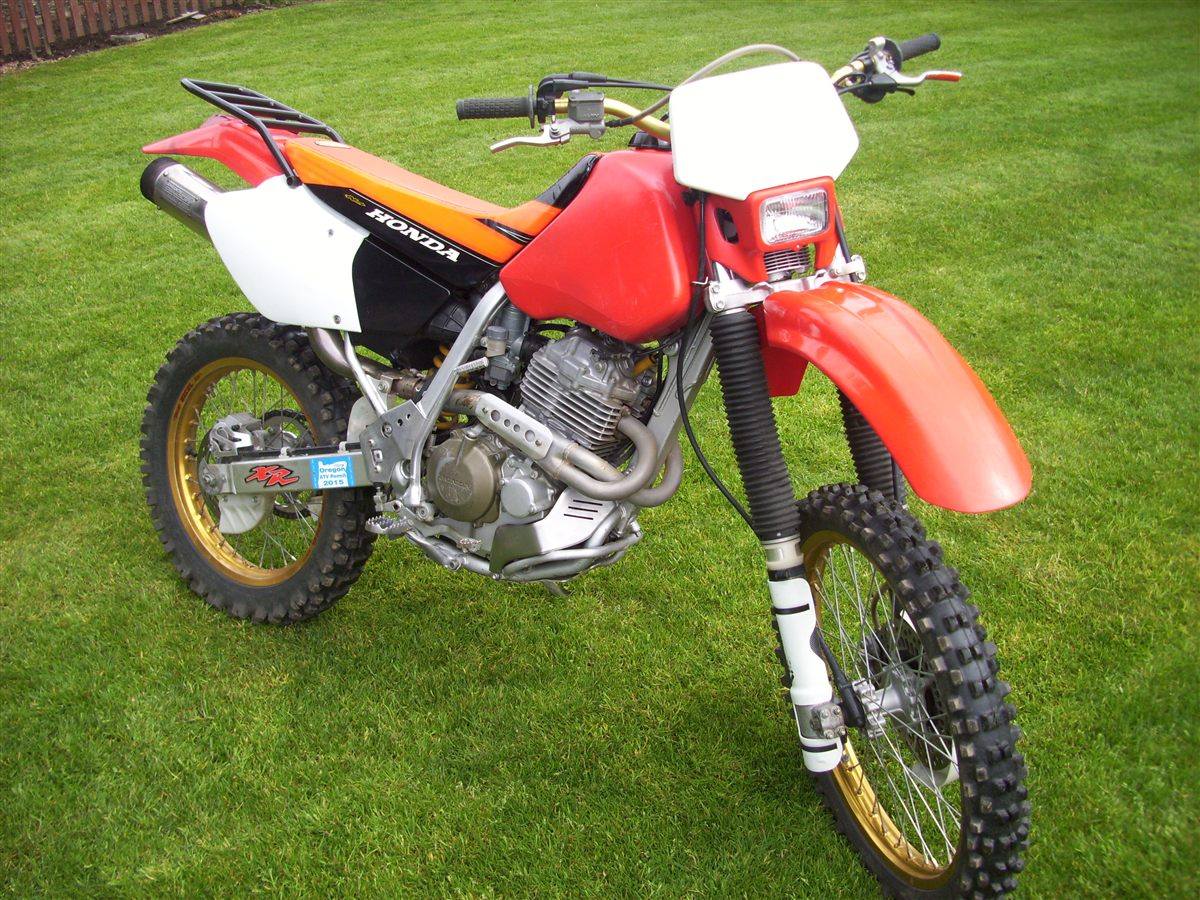

| MODEL | HONDA XR 400R 1998 |
| Year | 1998 |
| Engine Type | Four stroke, single cylinder, SOHC with rocker arms, 4 valve RFVC, silent multi-link cam chain |
| Displacement / Capacity | 397 cc / 24.2 cu in |
| Bore X Stroke | 85 x 70 mm |
| Compression Ratio | 9.3:1 |
| Cooling System | Air cooled |
| Max Power | 24.8 kW / 34.3 hp @ 7000 rpm |
| Max Torque | 33 Nm / 24.3 lb-ft @ 5500 rpm |
| Ignition | Solid-state CDI with electronic advance |
| Induction | 35 mm piston-valve carburettor |
| Start System | Kick |
| TRANSMISSION SPECS | |
| Lubrication | Forced pressure, dry sump, trochoid pump |
| Gear Box | 5 Speed |
| Clutch | Wet, multi-plate |
| Final Drive | Chain, 15/45 sprockets (varies by market) |
| CHASSIS SPECS | |
| Frame | Semi-double cradle |
| Front Suspension | 43 mm leading-axle Showa cartridge fork, 18-position compression and 12-position rebound damping, 280 mm / 11.0 in travel |
| Rear Suspension | Pro-Link Showa single shock, spring preload, 16-position compression and 16-position rebound damping, 300 mm / 11.8 in travel |
| Front Brakes | Single 256 mm disc, 2 piston caliper |
| Rear Brakes | Single 220 mm disc, 1 piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2130 mm / 83.9 in |
| Overall Width | 840 mm / 33.1 in |
| Overall Height | 1240 mm / 48.8 in |
| Seat Height | 930 mm / 36.6 in |
| Wheelbase | 1425 mm / 56.1 in |
| Ground Clearance | 310 mm / 12.2 in |
| Dry Weight | 116.5 kg / 257 lbs |
| Wet Weight | 125 kg / 276 lbs |
| WHEEL SPECS | |
| Front Tyre | 80/100-21 |
| Rear Tyre | 110/100-18 |
| FUEL SYSTEM | |
| Fuel Capacity | 9.5 Litres / 2.5 US gal |
| Fuel Consumption | — |
| Top Speed | 137 km/h / 85 mph |
The 1998 XR400R stayed true to the original recipe of a torquey air-cooled four-stroke in a light, well-sprung chassis. Comparison tests of the time set it against Kawasaki's KLX300R. They rated the Honda the better pick for bigger, more aggressive riders and open desert, praised its easy servicing, and noted some hesitation when the throttle was snapped open. Honda's Power-Up kit for 1996 - 1998 XR models was a popular upgrade.
