| MODEL | HONDA XR 600R 1987 |
| Year | 1987 |
| Engine Type | Four stroke, single cylinder, SOHC, 4 valve RFVC (Radial Four Valve Combustion Chamber) |
| Displacement / Capacity | 591 cc / 36.0 cu in |
| Bore X Stroke | 97 x 80 mm |
| Compression Ratio | 9.0:1 |
| Cooling System | Air cooled |
| Max Power | 33.5 kW / 46 hp @ 6000 rpm |
| Max Torque | 51.9 Nm / 38.2 lb-ft @ 5500 rpm |
| Ignition | Solid-state CDI |
| Induction | 2 x 28 mm Keihin carburettors |
| Start System | Kick |
| TRANSMISSION SPECS | |
| Lubrication | Dry sump |
| Gear Box | 5 Speed |
| Clutch | — |
| Final Drive | #520 O-ring-sealed chain, 14T/48T |
| CHASSIS SPECS | |
| Frame | Frame with 28° steering-head angle, boxed aluminium swingarm |
| Front Suspension | — |
| Rear Suspension | Pro-Link single Showa shock, spring preload, 20-position compression and 20-position rebound damping adjustment, 280 mm / 11.0 in travel |
| Front Brakes | Single 256 mm disc, 2 piston caliper |
| Rear Brakes | Drum |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 955 mm / 37.6 in |
| Wheelbase | 1455 mm / 57.3 in |
| Ground Clearance | 345.5 mm / 13.6 in |
| Dry Weight | 121 kg / 266.8 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 80/100-21 |
| Rear Tyre | 110/100-18 |
| FUEL SYSTEM | |
| Fuel Capacity | 10.5 Litres / 2.6 US gal |
| Fuel Consumption | — |
| Top Speed | 133.6 km/h / 83 mph |
Photo: Daniel Björklund, Public domain, via Wikimedia Commons

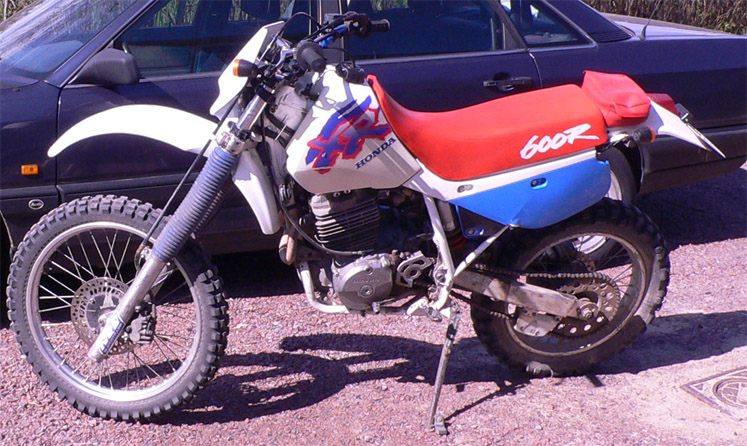

Photo: Rikita, CC BY-SA 3.0, via Wikimedia Commons
Essentially a carry-over of the 1985-86 XR600R with fresh graphics: the 591 cc four-valve RFVC single still breathed through twin 28 mm Keihin carburettors and stopped with a front disc and rear drum. Testers praised its broad low and midrange pull, comfort and reliability, while noting soft suspension for big landings. It was the last year before Honda's first significant update in 1988.
