| MODEL | HONDA XR 650L 2017 - 2018 |
| Year | 2017 - 2018 |
| Engine Type | Four stroke, single cylinder, SOHC, 4 valves |
| Displacement / Capacity | 644 cc / 39.3 cu in |
| Bore X Stroke | 100 x 82 mm / 3.9 x 3.2 in |
| Compression Ratio | 8.3:1 |
| Cooling System | Air cooled |
| Max Power | 32.1 kW / 43.6 hp @ 6000 rpm |
| Max Torque | 51.9 Nm / 38.2 lb-ft @ 5000 rpm |
| Ignition | Solid-state CDI with electronic advance |
| Induction | 42.5 mm diaphragm-type CV carburettor |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Dry sump |
| Gear Box | 5 Speed |
| Clutch | Heavy duty multi-plate |
| Final Drive | #520 O-ring sealed chain, 15T/45T |
| CHASSIS SPECS | |
| Frame | Steel, backbone doubles as oil reservoir |
| Front Suspension | 43 mm air-adjustable Showa cartridge fork, 16-position compression damping, 295 mm / 11.6 in travel |
| Rear Suspension | Pro-Link Showa single shock, spring preload, 20-position compression and rebound damping, 279 mm / 11.0 in travel |
| Front Brakes | Single 240 mm disc, 2-piston caliper |
| Rear Brakes | Single 240 mm disc, 1-piston caliper |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 940 mm / 37 in |
| Wheelbase | 1455 mm / 57.3 in |
| Ground Clearance | 330 mm / 13.0 in |
| Dry Weight | 147 kg / 324 lbs |
| Wet Weight | 158 kg / 348 lbs |
| WHEEL SPECS | |
| Front Tyre | 3.00-21 |
| Rear Tyre | 4.60-18 |
| FUEL SYSTEM | |
| Fuel Capacity | 10.6 Litres / 2.8 US gal |
| Fuel Consumption | 4.52 L/100 km / 52 mpg US |
| Top Speed | — |

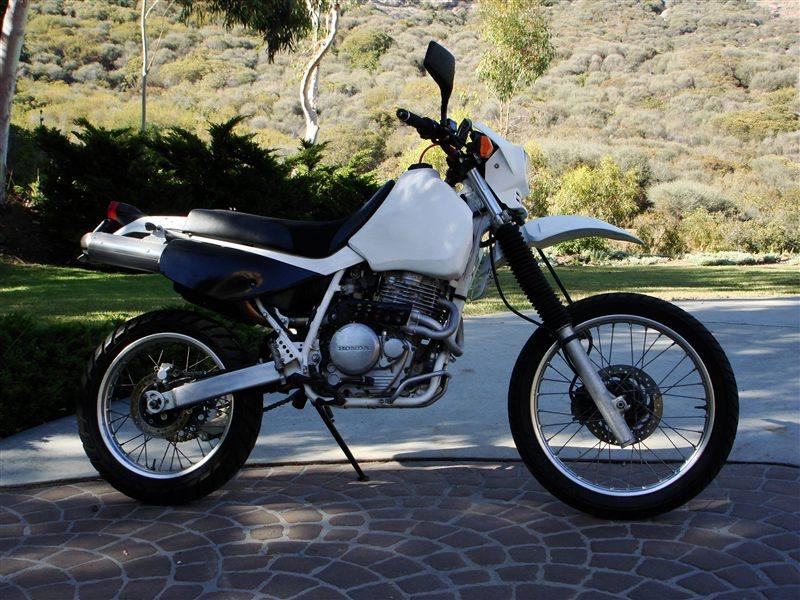

Photo: steve lyon, CC BY-SA 2.0, via Wikimedia Commons

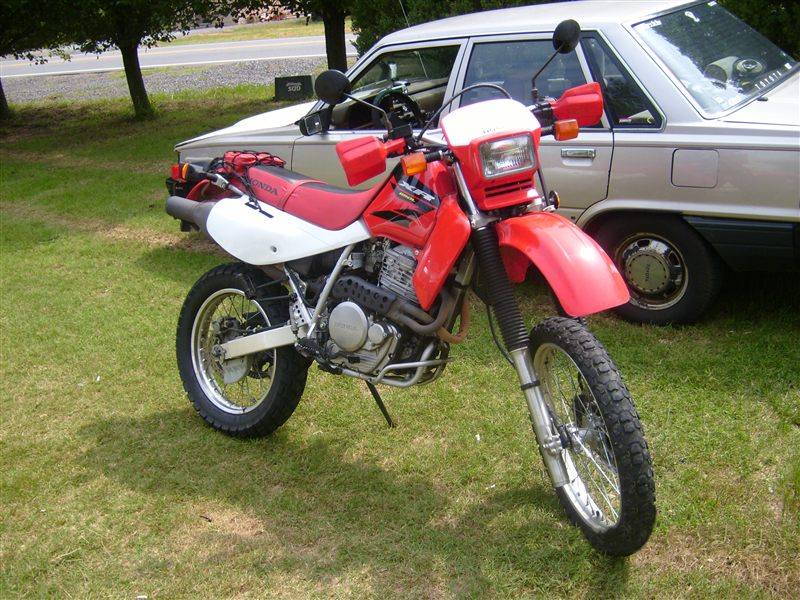

Photo: Michael Worden, Public domain, via Wikimedia Commons
For 2017 - 2018 Honda kept the XR650L in the range with the same air-cooled single, dry-sump lubrication with the oil held in the frame backbone, and full street equipment. It remained a durable, no-frills dual-sport able to commute during the week and tackle trails or two-up riding at weekends.
