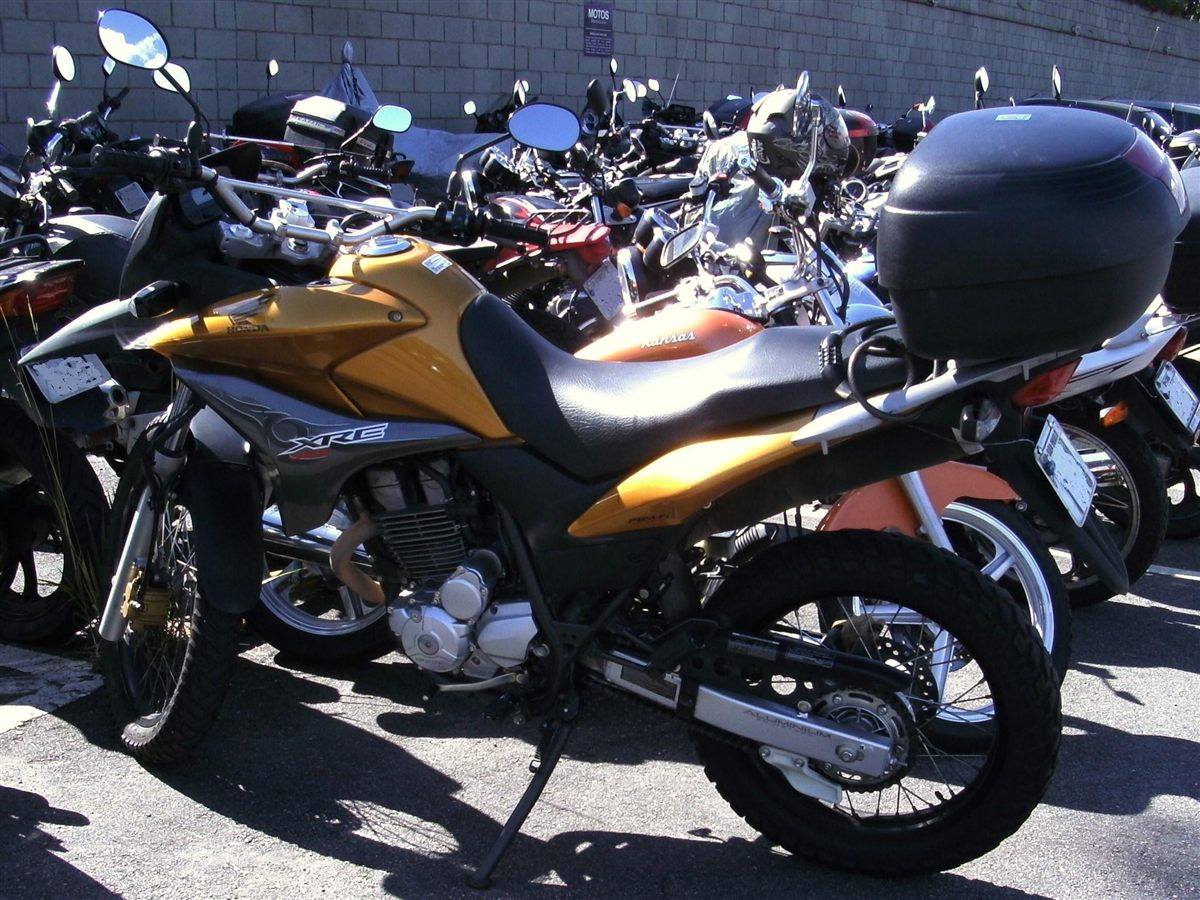

| MODEL | HONDA XRE 300 2016 - 2018 |
| Year | 2016 - 2018 |
| Engine Type | Four stroke, single cylinder, DOHC, 4 valves, inclined 15° |
| Displacement / Capacity | 291.6 cc / 17.8 cu in |
| Bore X Stroke | 79 x 59.5 mm |
| Compression Ratio | 9.0:1 |
| Cooling System | Air cooled with oil cooler |
| Max Power | Petrol: 19.2 kW / 26.1 hp @ 7500 rpm; Ethanol: 19.3 kW / 26.3 hp @ 7500 rpm |
| Max Torque | Petrol: 27.5 Nm / 20.3 lb-ft @ 6500 rpm; Ethanol: 27.9 Nm / 20.6 lb-ft |
| Ignition | TCI |
| Induction | PGM-FI electronic fuel injection, petrol and/or ethanol (flex-fuel) |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Wet sump |
| Gear Box | 5 Speed |
| Clutch | Wet, multi-plate, cable operated |
| Final Drive | 520 O-ring sealed chain, 13/39 sprockets |
| CHASSIS SPECS | |
| Frame | Single downtube with double-loop cradle, chrome-molybdenum steel |
| Front Suspension | 41 mm air assisted telescopic fork, 245 mm / 9.6 in travel |
| Rear Suspension | Pro-Link with aluminium swingarm, 225 mm / 8.9 in travel |
| Front Brakes | Single 256 mm disc, 2 piston caliper (3 piston caliper with C-ABS) |
| Rear Brakes | Single 220 mm disc, 1 piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2171 mm / 85.5 in |
| Overall Width | 830 mm / 32.7 in |
| Overall Height | 1181 mm / 46.5 in |
| Seat Height | 860 mm / 33.9 in |
| Wheelbase | 1417 mm / 55.8 in |
| Ground Clearance | 259 mm / 10.2 in |
| Dry Weight | — |
| Wet Weight | 144 kg / 317 lbs; 151 kg / 333 lbs (C-ABS) |
| WHEEL SPECS | |
| Front Tyre | 90/90-21 54S |
| Rear Tyre | 120/80-18 62S |
| FUEL SYSTEM | |
| Fuel Capacity | 13.6 Litres / 3.6 US gal |
| Fuel Consumption | 4.0 L/100 km / 58.8 US mpg |
| Top Speed | — |
The 2016 update gave the XRE 300 a reinforced cylinder head, a new injection map and catalyst to meet tighter emissions rules. It also got larger fairings, a fuller digital dash and new switchgear, and Honda Brazil extended the warranty to three years. Output fell very slightly but fuel economy improved. An Adventure version with a silver tank arrived in 2017, and by 2018 combined ABS was standard on the Rally and Adventure models.
