| MODEL | HONDA XRV 750 AFRICA TWIN 1996 |
| Year | 1996 |
| Engine Type | Four stroke, longitudinal 52° V-twin, SOHC, 3 valves per cylinder |
| Displacement / Capacity | 742 cc / 45.3 cu in |
| Bore X Stroke | 81 x 72 mm / 3.2 x 2.8 in |
| Compression Ratio | 9.0:1 |
| Cooling System | Liquid cooled |
| Max Power | 45.3 kW / 62 hp @ 7500 rpm |
| Max Torque | 62.7 Nm / 46.2 lb-ft @ 6000 rpm |
| Ignition | TCI (Transistor Controlled Ignition) |
| Induction | 2x 38 mm flat-side CV carburettors |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Wet sump |
| Gear Box | 5 Speed |
| Clutch | Wet, multi-plate, cable operated |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Single downtube with double-loop cradle, rectangular-section steel |
| Front Suspension | 43 mm air-assisted telescopic fork, 220 mm / 8.7 in travel |
| Rear Suspension | Pro-Link, preload and compression damping adjustment, 214 mm / 8.4 in travel |
| Front Brakes | 2x 276 mm discs, 2-piston calipers |
| Rear Brakes | Single 256 mm disc, 1-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2315 mm / 91.1 in |
| Overall Width | 905 mm / 35.6 in |
| Overall Height | 1430 mm / 56.3 in |
| Seat Height | 860 mm / 33.9 in |
| Wheelbase | 1565 mm / 61.6 in |
| Ground Clearance | — |
| Dry Weight | 207 kg / 456 lbs |
| Wet Weight | 218 kg / 481 lbs |
| WHEEL SPECS | |
| Front Tyre | 90/90-21 |
| Rear Tyre | 140/80-17 |
| FUEL SYSTEM | |
| Fuel Capacity | 23 Litres / 6.1 US gal |
| Fuel Consumption | 16.4 km/l |
| Top Speed | 181.8 km/h / 112 mph |

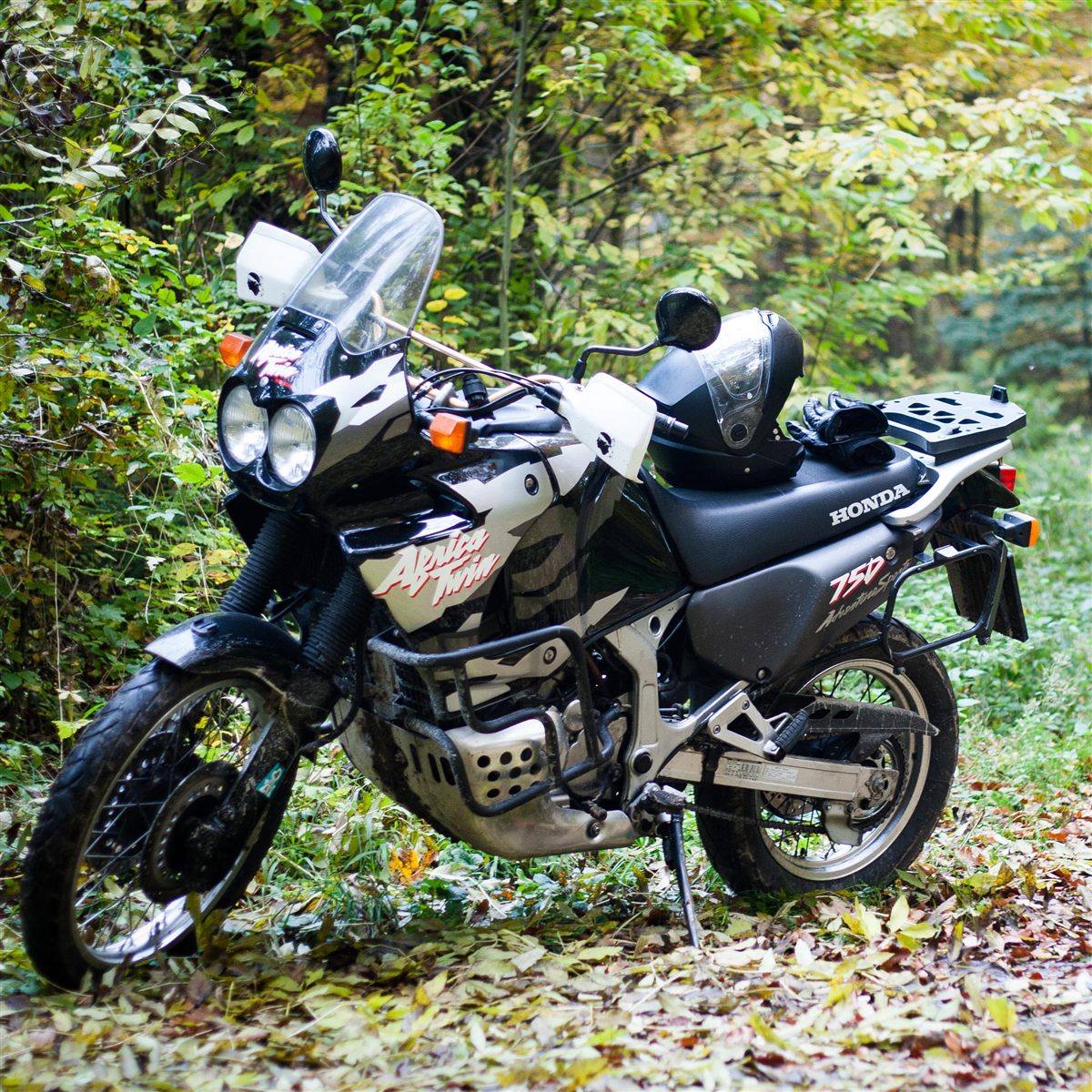

Photo: order_242 from Chile, CC BY-SA 2.0, via Wikimedia Commons

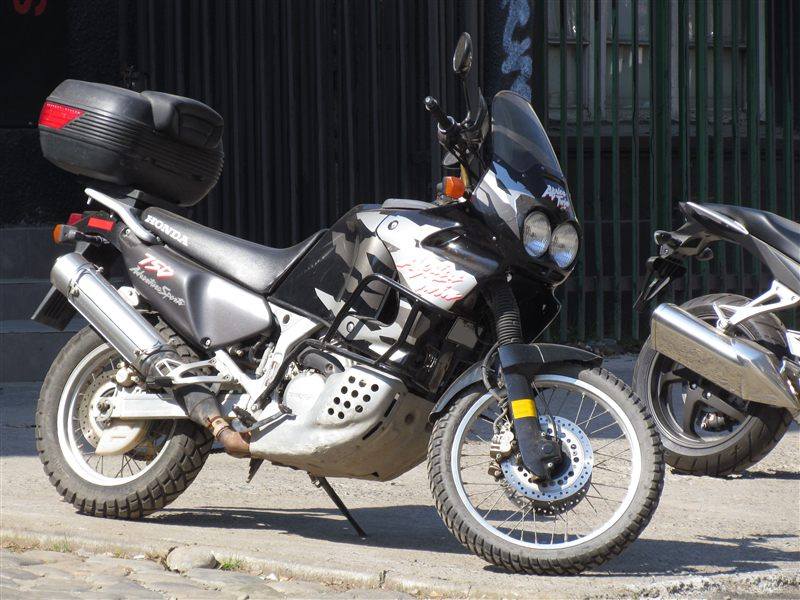

Photo: order_242 from Chile, CC BY-SA 2.0, via Wikimedia Commons
The 1996 (T-series) Africa Twin was a facelift of the RD07 with a more comfortable seat, an improved clutch, a bigger silencer, a reshaped upper fairing and a revised luggage rack, though the rear shock lost some adjustment. A period comparison against Triumph's Tiger rated the Honda the better-built and more capable all-rounder, if less exciting in character.
