| MODEL | KTM 1190 ADVENTURE 2016 |
| Year | 2016 |
| Engine Type | Four stroke, 75 degree V-twin, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 1195 cc / 72.9 cu in |
| Bore X Stroke | 105 x 69 mm |
| Compression Ratio | 12.5:1 |
| Cooling System | Liquid cooling |
| Max Power | 147.5 hp / 107.7 kW @ 9500 rpm |
| Max Torque | 92.2 lb-ft / 124.8 Nm @ 7500 rpm |
| Ignition | Contactless, controlled, fully electronic ignition with digital timing adjustment |
| Induction | EFI, ride by wire |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Forced oil lubrication with 3 rotor pumps |
| Gear Box | 6 speed (primary 40:76, secondary 17:42) |
| Clutch | Wet multi-disc clutch, hydraulically operated |
| Final Drive | Chain 5/8 x 5/16 in X-Ring |
| CHASSIS SPECS | |
| Frame | Tubular space frame, chrome-molybdenum steel, powder coated |
| Front Suspension | 48mm WP USD forks, 190 mm / 7.5 in wheel travel |
| Rear Suspension | WP-PDS rear shock, hydraulic spring preload, 210 mm / 8.2 in wheel travel |
| Front Brakes | 2 x 320 mm discs, 4-piston calipers |
| Rear Brakes | Single 267 mm disc, 2-piston caliper |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 861 mm - 876 mm / 33.9 in - 34.5 in |
| Wheelbase | 1600 mm / 63.0 in |
| Ground Clearance | 220 mm / 8.7 in |
| Dry Weight | 217 kg / 478.4 lb |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 120/70 ZR19 |
| Rear Tyre | 170/60 ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 23 Litres / 6.08 US gal |
| Fuel Consumption | — |
| Top Speed | — |

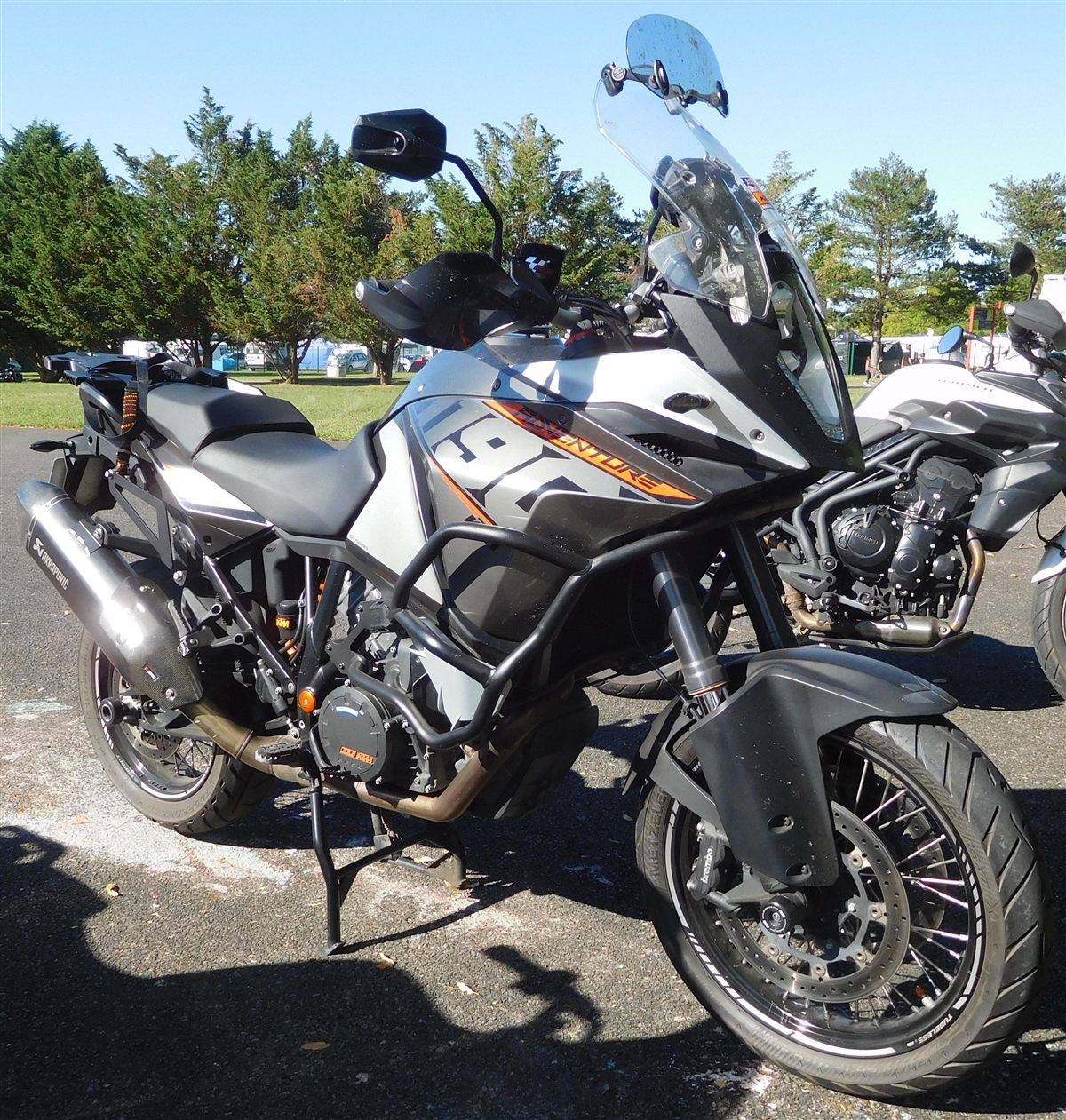

The 2016 KTM 1190 Adventure is a travel-enduro with a 1195 cc V-twin and Bosch MSC electronics, including lean-sensitive traction control and cornering ABS. The source reviews it as capable on dirt for its size and very enjoyable on tarmac, and notes a switchable ride mode and adjustable suspension on the tested bike. Its specification is unchanged from the 2014 and 2015 versions on the same site.
