| MODEL | KTM 250 EXC-F 2014 - 2016 |
| Year | 2014 - 2016 |
| Engine Type | Four stroke, single cylinder, DOHC with finger followers, 4 valves |
| Displacement / Capacity | 248.6 cc / 15.2 cu in |
| Bore X Stroke | 78 x 52.3 mm |
| Compression Ratio | 13.2:1 |
| Cooling System | Liquid cooled |
| Max Power | — |
| Max Torque | — |
| Ignition | Contactless, fully electronic, digital timing adjustment (Kokusan) |
| Induction | Keihin EFI, flow restrictor, 42 mm |
| Start System | Kick and electric (YTX4L-BS 12V 3Ah battery) |
| TRANSMISSION SPECS | |
| Lubrication | Forced oil lubrication with 2 Eaton pumps |
| Gear Box | 6 speed (primary 24:73) |
| Clutch | Wet multi-disc, hydraulically operated |
| Final Drive | Chain, 5/8 x 1/4 in, final ratio 14:52 (13:52) |
| CHASSIS SPECS | |
| Frame | Central tube frame, chrome molybdenum steel tubing |
| Front Suspension | WP Upside Down 4860 MXMA PA, 300 mm / 11.8 in travel |
| Rear Suspension | WP-PDS 5018 DCC shock absorber, 335 mm / 13.2 in travel |
| Front Brakes | Single 260 mm disc, 2 piston caliper |
| Rear Brakes | Single 220 mm disc, 1 piston caliper |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 970 mm / 38.2 in |
| Wheelbase | 1482 mm / 58.4 in |
| Ground Clearance | 345 mm / 13.6 in |
| Dry Weight | 105.5 kg / 232.6 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 90/90 - 21 M/C 54M M+S TT |
| Rear Tyre | 120/80 - 18 M/C 65M M+S TT |
| FUEL SYSTEM | |
| Fuel Capacity | 9 Litres / 2.38 US gal |
| Fuel Consumption | — |
| Top Speed | — |

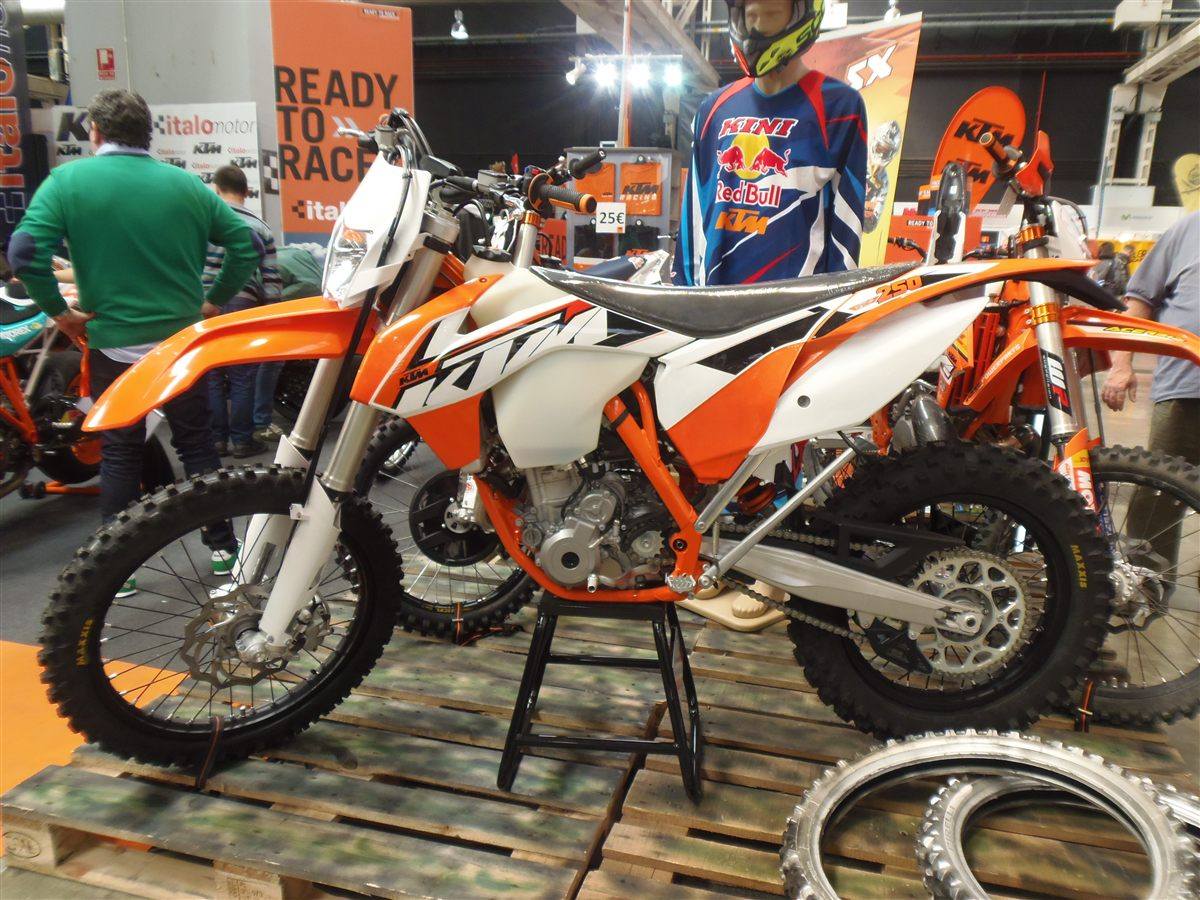

The 2014 to 2016 250 EXC-F is a competitive, fuel-injected four-stroke enduro bike with WP suspension. Its changes center on the engine: a die-cast engine case, a redesigned airbox, a quick-change air filter and enduro-oriented camshafts for a broad power range. The bike also carries a slightly smaller bore and stroke than the 2012-2013 model.
