| MODEL | KTM 450 RALLY RED BULL FACTORY RACER 2013 |
| Year | 2013 |
| Engine Type | Four stroke, single cylinder, SOHC, 4 valves per cylinder |
| Displacement / Capacity | 449.3 cc / 27.4 in |
| Bore X Stroke | 97 x 60.9 mm |
| Compression Ratio | 12.5:1 |
| Cooling System | Liquid cooled |
| Max Power | — |
| Max Torque | — |
| Ignition | Keihin DC ECU |
| Induction | Keihin FCR-MX 41 |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Engine oil capacity 1.2 L / 1.27 US qt, SAE 10W60 (lubrication type not stated) |
| Gear Box | 5 Speed, primary drive ratio 29:74, gears 14:35, 17:33, 19:30, 21:28, 23:26 |
| Clutch | Wet multi-disc, hydraulically operated |
| Final Drive | Chain 5/8 x 1/4 in |
| CHASSIS SPECS | |
| Frame | Chromium-molybdenum trellis frame, powder coated, self-supporting plastic tank subframe |
| Front Suspension | WP USD 48 mm fork, 300 mm / 11.9 in wheel travel |
| Rear Suspension | WP monoshock with Pro-Lever linkage, 310 mm / 12.2 in wheel travel |
| Front Brakes | Single 300 mm disc, Brembo two-piston, floating caliper |
| Rear Brakes | Single 240 mm disc, one-piston, floating caliper |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 980 mm / 38.5 in |
| Wheelbase | 1535 mm / 60.4 in |
| Ground Clearance | 320 mm / 12.6 in |
| Dry Weight | 145 kg / 320 lb |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 90/90 - 21 54S TT, Michelin T63 |
| Rear Tyre | 130/80 - 18 66S TT, Michelin T63 |
| FUEL SYSTEM | |
| Fuel Capacity | 35 L / 9.2 US gal / 7.7 Imp gal |
| Fuel Consumption | — |
| Top Speed | — |

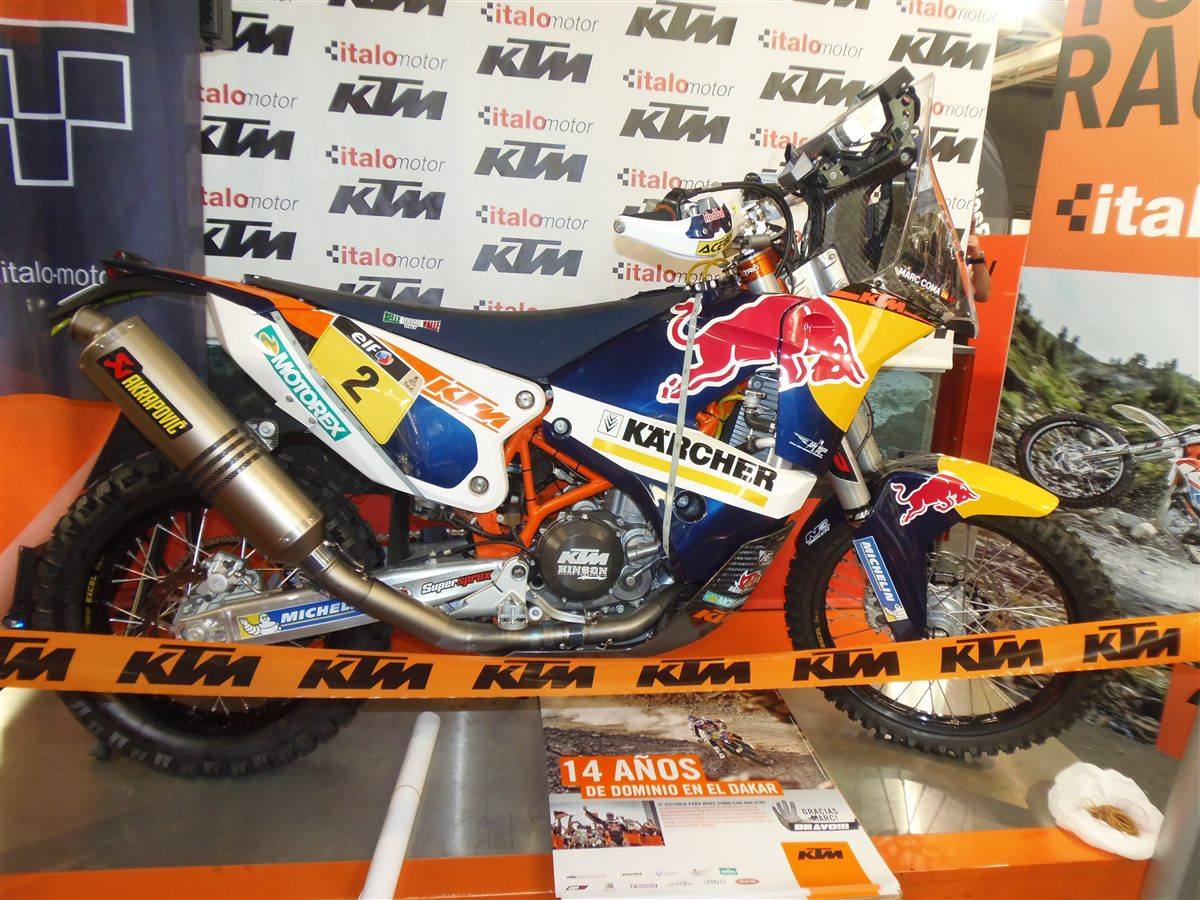

The 2013 factory-style 450 Rally, built for Dakar with input from riders Marc Coma and Cyril Despres. The page presents it as a carburetted single-cylinder competition machine with a plastic tank subframe and Brembo front braking, and includes a test of a Dakar-spec 450RR that finished 34th in the 2012 Dakar. The tester notes its tall first gear and stable handling under load, with visibility limited by the front-mounted navigation gear.
