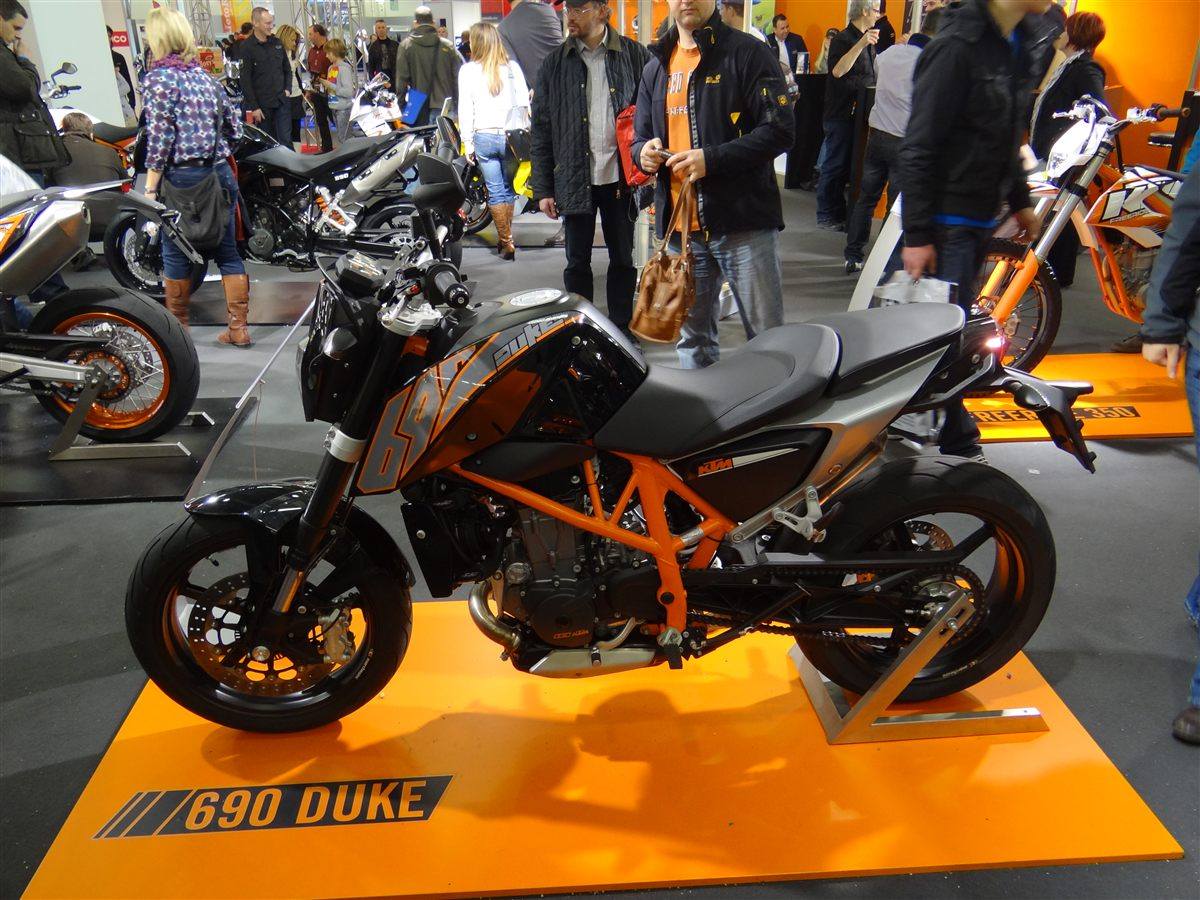

| MODEL | KTM 690 DUKE 2012 |
| Year | 2012 |
| Engine Type | Four stroke, single cylinder, SOHC, 4 valves |
| Displacement / Capacity | 690 cc / 42.1 cu in |
| Bore X Stroke | 102 x 84.5 mm |
| Compression Ratio | 12.6:1 |
| Cooling System | Liquid cooled |
| Max Power | 52.2 kW / 70 hp @ 7500 rpm |
| Max Torque | 69.8 Nm / 7.1 kgf-m / 51.6 ft-lb @ 6550 rpm |
| Ignition | Kokusan DC-CDI |
| Induction | Keihin EMS with EPT (electric power throttle) |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Wet sump, synthetic 15W-50, oil capacity 1.7 L / 1.8 US qt / 1.5 Imp qt |
| Gear Box | 6 speed (primary drive 36:79, final drive 16:40) |
| Clutch | APTC multi-disc wet clutch, hydraulically operated |
| Final Drive | Chain, X-Ring 5/8 x 5/16 in |
| CHASSIS SPECS | |
| Frame | Chromoly trellis frame, powder coated, aluminium subframe |
| Front Suspension | WP upside-down forks, 135 mm / 5.3 in travel |
| Rear Suspension | WP monoshock with Pro-Lever deflector, 135 mm / 5.3 in travel |
| Front Brakes | Single 320 mm floating disc, radially mounted four-piston caliper |
| Rear Brakes | Single 240 mm floating disc, single-piston caliper |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 835 mm / 32.9 in |
| Wheelbase | 1466 mm / 57.7 in |
| Ground Clearance | 192 mm / 7.6 in |
| Dry Weight | 149.5 kg |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 120/70 - ZR17 M/C 58W TL |
| Rear Tyre | 160/60 - ZR17 M/C 69W TL |
| FUEL SYSTEM | |
| Fuel Capacity | 14 L / 3.7 US gal / 3.1 Imp gal (reserve 3.2 L) |
| Fuel Consumption | 4.2 L/100 km / 23.9 km/l / 56.2 US mpg / 67.5 Imp mpg |
| Top Speed | 202.9 km/h / 126 mph |
The 2012 Duke was a new-generation 690 with a reworked cylinder head, dual spark plugs, a drive-by-wire throttle and a Brembo radial front caliper. It has a larger 14-litre tank, a seat and riding position about 30 mm lower, and a 10,000 km service interval. The page presents it as a lightweight, do-it-all single with cheaper running costs.
