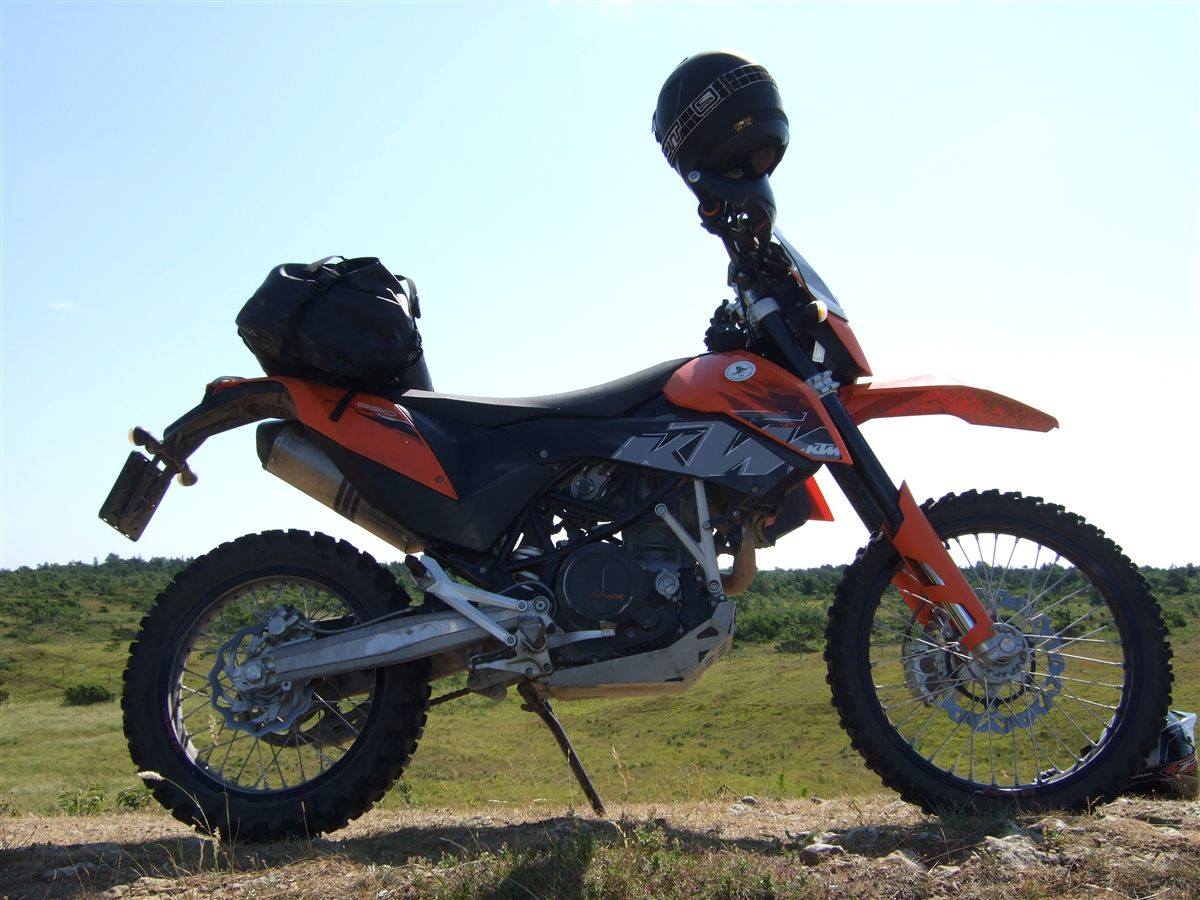

| MODEL | KTM 690 ENDURO 2007 - 2008 |
| Year | 2007 - 2008 |
| Engine Type | Four stroke, single cylinder, SOHC, 4 valves |
| Displacement / Capacity | 690 cc / 42.1 cu in |
| Bore X Stroke | 102 x 84.5 mm |
| Compression Ratio | 11.7:1 |
| Cooling System | Liquid cooling system, continuous circulation with water pump |
| Max Power | 63 hp / 46 kW @ 7500 rpm |
| Max Torque | 65 Nm / 47.9 ft-lb @ 6550 rpm |
| Ignition | Contactless, controlled, fully electronic ignition with digital ignition timing adjustment |
| Induction | — |
| Start System | Electric, automatic decompressor |
| TRANSMISSION SPECS | |
| Lubrication | Pressure lubrication with 2 Eaton pumps |
| Gear Box | 6 Speed, claw shifted |
| Clutch | APTC anti-hopping clutch in oil bath, hydraulically operated |
| Final Drive | Chain, primary 36:79, secondary 15:45 |
| CHASSIS SPECS | |
| Frame | Tubular space frame, chrome molybdenum steel, powder-coated |
| Front Suspension | WP Suspension 4860 D48/26 MA, 48 mm, 250 mm travel |
| Rear Suspension | WP Suspension 4618 with Pro-Lever linkage, 250 mm travel |
| Front Brakes | Single 300 mm Brembo disc, two-piston caliper, floating, ABS |
| Rear Brakes | Single 240 mm Brembo disc, single-piston caliper, floating, ABS |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 910 mm / 35.8 in |
| Wheelbase | 1504 mm / 59.2 in |
| Ground Clearance | 280 mm / 11.0 in |
| Dry Weight | 139 kg / 306 lbs |
| Wet Weight | 150 kg / 330 lbs |
| WHEEL SPECS | |
| Front Tyre | 90/90-21 |
| Rear Tyre | 140/80-18 |
| FUEL SYSTEM | |
| Fuel Capacity | 12 Litres / 3.17 US gal (2.5 L reserve) |
| Fuel Consumption | — |
| Top Speed | — |
The 690 Enduro of 2007-2008 is a dual-purpose bike derived from the 690 SMC supermoto, sharing its engine and frame but with off-road wheels, longer suspension travel and different bodywork. Its lower centre of gravity and orange-and-black styling were noted in period reviews. It was positioned as a dirt-capable enduro that could also be ridden on the road.
