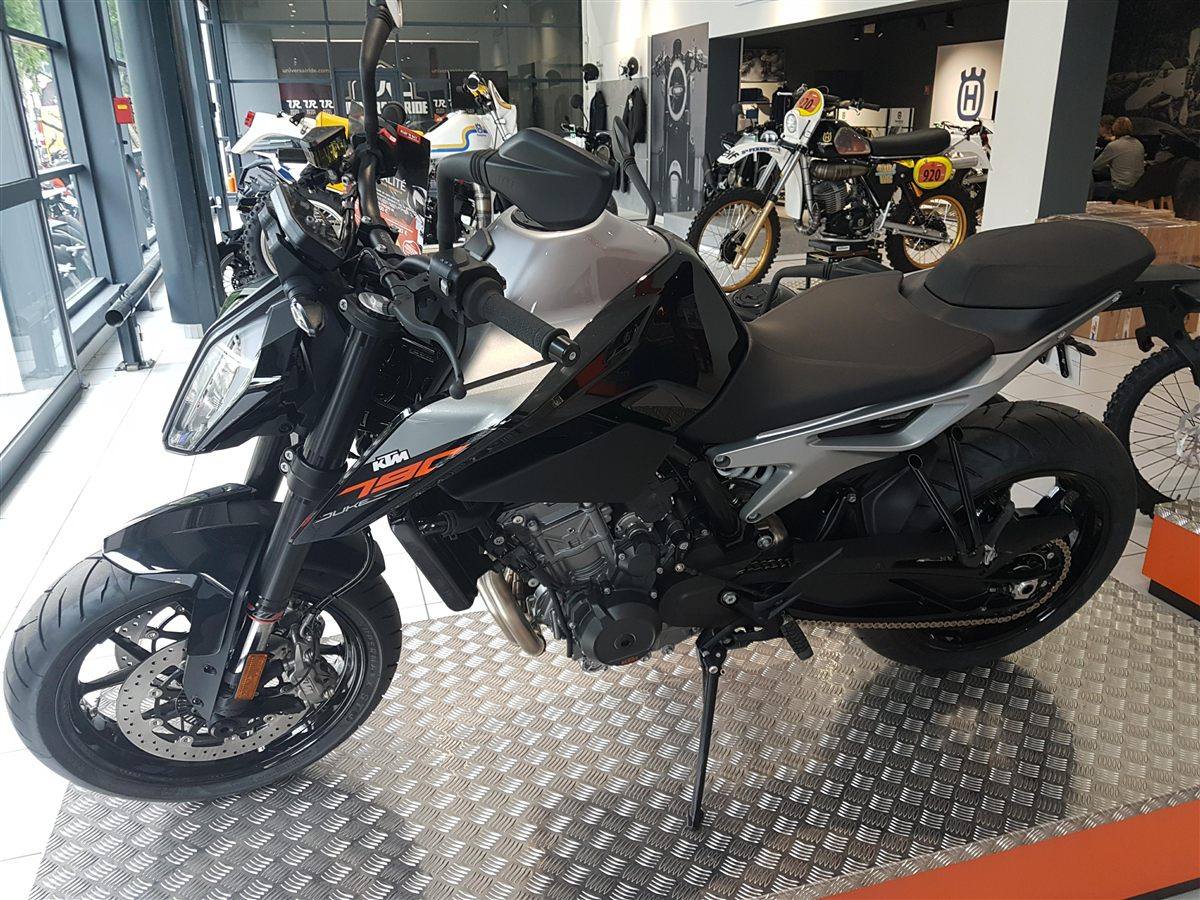

| MODEL | KTM 790 DUKE 2018 |
| Year | 2018 |
| Engine Type | Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 799 cc / 48.7 cu in |
| Bore X Stroke | 88 mm x 65.7 mm |
| Compression Ratio | 12.7:1 |
| Cooling System | Liquid cooled |
| Max Power | 78 kW / 105 hp @ 9000 rpm |
| Max Torque | 87 Nm / 63.4 lb-ft @ 8000 rpm |
| Ignition | Bosch EMS with RBW |
| Induction | Dell'Orto fuel injection |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Forced oil lubrication with 2 oil pumps |
| Gear Box | 6 speed |
| Clutch | PASC anti-hopping clutch, mechanically operated |
| Final Drive | Chain 520 X-Ring (primary drive 39:75, secondary 16:41) |
| CHASSIS SPECS | |
| Frame | Chromium-molybdenum steel frame using the engine as stressed element, powder coated |
| Front Suspension | 43 mm WP upside-down fork, 140 mm / 5.5 in travel |
| Rear Suspension | WP shock absorber with preload adjuster, 150 mm / 5.9 in travel |
| Front Brakes | 2 x 300 mm discs |
| Rear Brakes | Single 240 mm disc |
| DIMENSION SPECS | |
| Overall Length | 2062 mm / 81.2 in |
| Overall Width | 904 mm / 35.6 in |
| Overall Height | 1059 mm / 41.7 in |
| Seat Height | 825 mm / 32.4 in |
| Wheelbase | 1475 +/- 15 mm / 58 in |
| Ground Clearance | 186 mm / 7.3 in |
| Dry Weight | 169 kg / 372.5 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 120/70-17 |
| Rear Tyre | 180/55-17 |
| FUEL SYSTEM | |
| Fuel Capacity | 14 Litres / 3.7 US gal |
| Fuel Consumption | — |
| Top Speed | — |
The first production 790 Duke, nicknamed The Scalpel: a smaller, more nimble sibling to the 1290 Super Duke R built around a new 799 cc LC8c parallel twin. The engine doubles as a stressed frame member, and the bike came with WP suspension, cornering ABS with a Supermoto mode and four riding modes. A 95 hp version was offered for European A2 licences.
