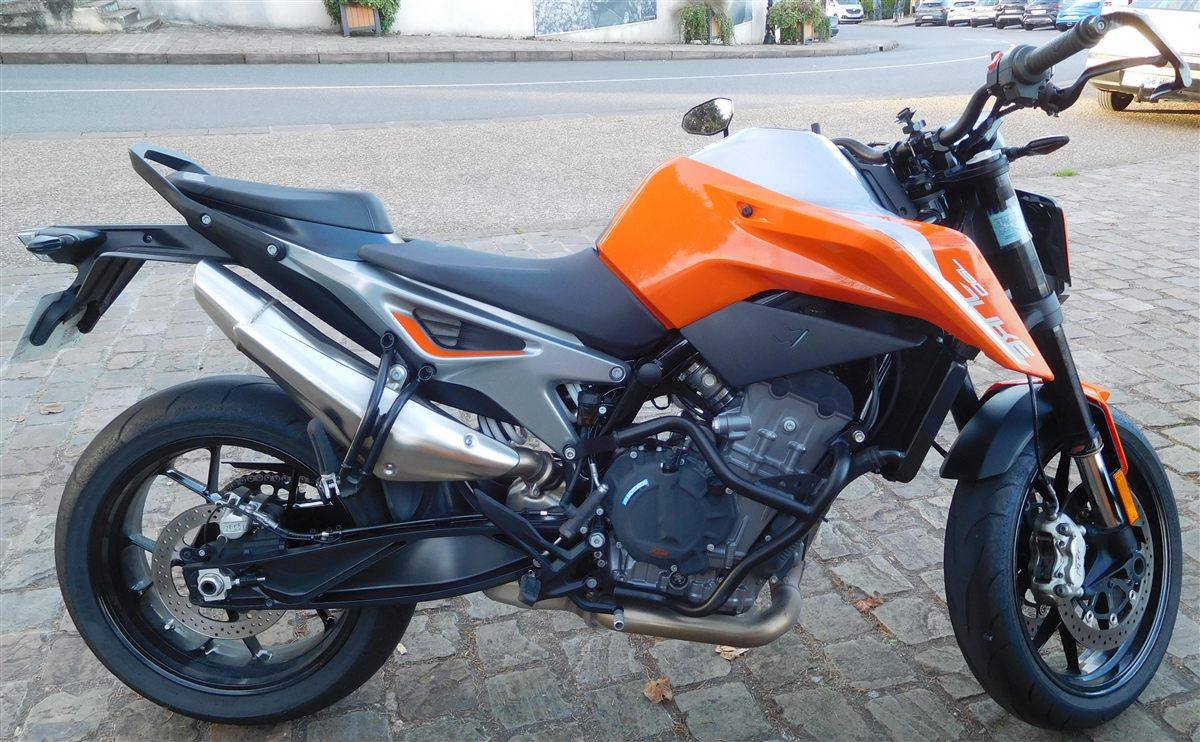

| MODEL | KTM 790 DUKE 2022 |
| Year | 2022 |
| Engine Type | Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 799 cc / 48.7 cu in |
| Bore X Stroke | 88 mm x 65.7 mm |
| Compression Ratio | 12.7:1 |
| Cooling System | Liquid cooled with water/oil heat exchanger |
| Max Power | 77 kW / 105 hp @ 9000 rpm (95 hp European A2 version) |
| Max Torque | 87 Nm / 63.4 lb-ft @ 8000 rpm |
| Ignition | Bosch EMS with RBW |
| Induction | Dell'Orto fuel injection |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Forced oil lubrication with 2 oil pumps |
| Gear Box | 6 speed |
| Clutch | PASC anti-hopping clutch, mechanically operated |
| Final Drive | Chain 520 X-Ring (primary drive 39:75, secondary 16:41) |
| CHASSIS SPECS | |
| Frame | Chromium-molybdenum steel frame using the engine as stressed element, powder coated |
| Front Suspension | WP APEX 43 fork, 140 mm / 5.5 in travel |
| Rear Suspension | WP APEX monoshock, 150 mm / 5.9 in travel |
| Front Brakes | 2 x 300 mm discs, radially mounted 4-piston caliper |
| Rear Brakes | Single 240 mm disc, 2-piston floating caliper |
| DIMENSION SPECS | |
| Overall Length | 2062 mm / 81.2 in |
| Overall Width | 904 mm / 35.6 in |
| Overall Height | 1059 mm / 41.7 in |
| Seat Height | 825 mm / 32.4 in |
| Wheelbase | 1475 +/- 15 mm / 58 in |
| Ground Clearance | 186 mm / 7.3 in |
| Dry Weight | 169 kg / 372.5 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 120/70-17 |
| Rear Tyre | 180/50-17 |
| FUEL SYSTEM | |
| Fuel Capacity | 14 Litres / 3.7 US gal |
| Fuel Consumption | 4.4 l / 100 km (page claim) |
| Top Speed | — |
The 2022 790 Duke returned the model after the 2017-2020 run, filling the gap between the 390 Duke and 890 Duke. It uses the LC8c parallel twin tuned for torque, with WP APEX suspension and electronics including cornering traction control, cornering ABS with Supermoto mode and a 5-inch TFT. Europe received a 95 hp A2 version, other markets 105 hp, and the colourways were orange or grey and black.
