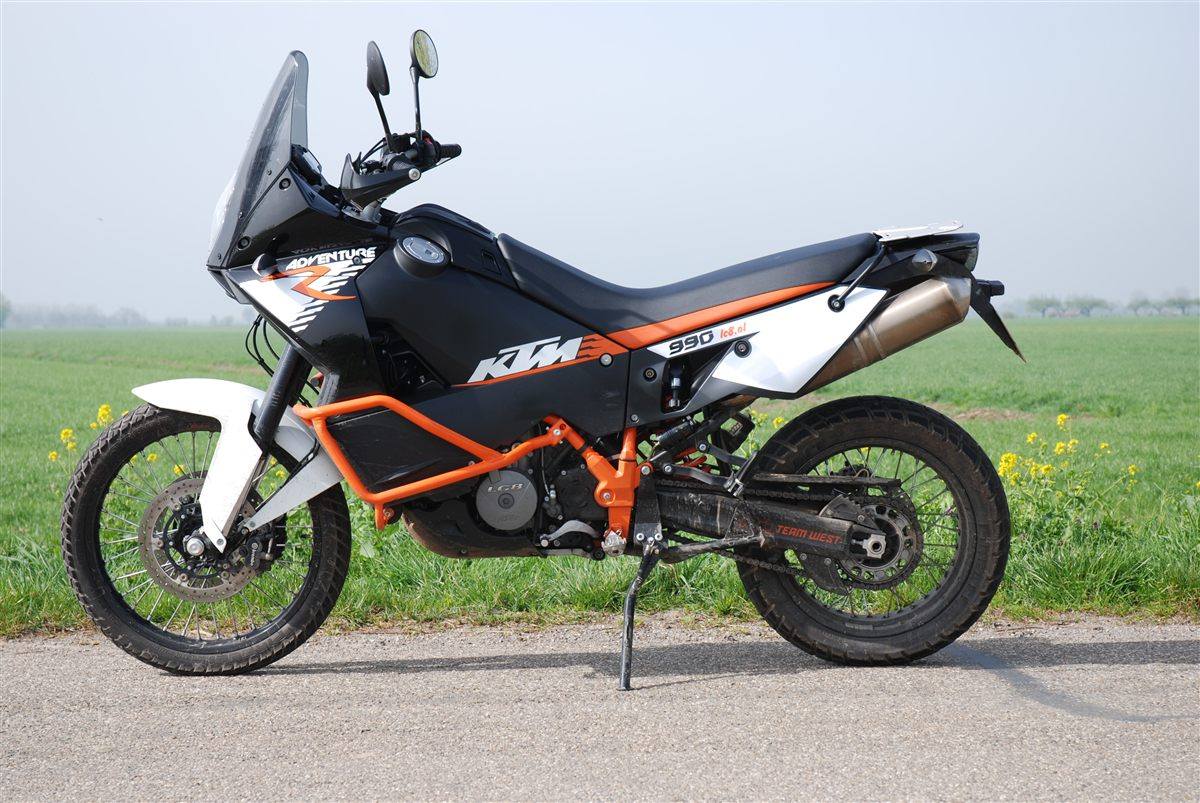

| MODEL | KTM 990 ADVENTURE R 2011 |
| Year | 2011 |
| Engine Type | Four stroke, 75° V-twin, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 999.8 cc / 60.9 cu in |
| Bore X Stroke | 101 x 62.4 mm |
| Compression Ratio | 11.5:1 |
| Cooling System | Liquid cooling |
| Max Power | 116 hp / 85 kW @ 9000 rpm |
| Max Torque | 100 Nm / 73.8 lb-ft @ 6500 rpm |
| Ignition | Contactless, fully electronic with digital ignition timing adjustment |
| Induction | Keihin electronic fuel injection (EMS) |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Pressure lubrication with 2 Eaton pumps; Motorex SAE 10W-50 engine oil |
| Gear Box | 6 speed |
| Clutch | Wet multi-disc, hydraulically operated |
| Final Drive | Chain, X-Ring 5/8 x 5/16 in; primary drive 35:67; final drive ratio 16:42 |
| CHASSIS SPECS | |
| Frame | Tubular cromoly spaced frame, powder coated |
| Front Suspension | 48 mm WP USD forks, 248 mm / 9.7 in travel |
| Rear Suspension | WP-PDS rear shock, hydraulic spring preload, 248 mm / 9.7 in travel |
| Front Brakes | 2x 300 mm Brembo discs, 2-piston calipers |
| Rear Brakes | Single 240 mm Brembo disc, 1-piston caliper |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 905 mm / 35.6 in |
| Wheelbase | 1570 mm / 61.8 in |
| Ground Clearance | 301 mm / 11.85 in |
| Dry Weight | 207 kg / 456.34 lb |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 90/90-21 |
| Rear Tyre | 150/70-R18 |
| FUEL SYSTEM | |
| Fuel Capacity | 19.5 litres / 5.1 US gal |
| Fuel Consumption | 17.2 km/litre |
| Top Speed | 210.7 km/h |
The 2011 990 Adventure R is the top-spec off-road Adventure, replacing the S as the flagship. It uses a tuned 999 cc V-twin with a 116 hp rating on this page, 248 mm of travel and Brembo brakes. The review says it is more punchy than the standard bike but has a less comfortable seat and no ABS option.
