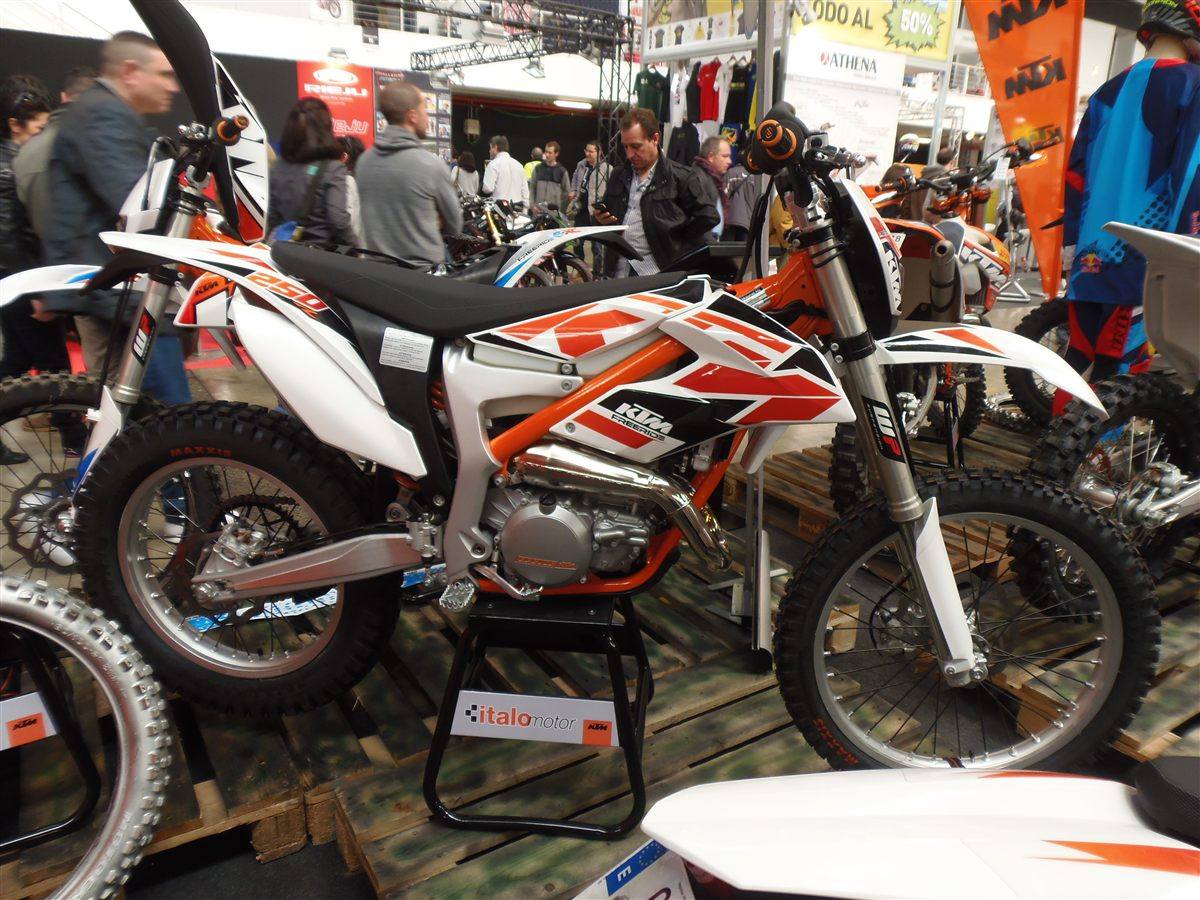

| MODEL | KTM F REERIDE 250R 2014 - 2015 |
| Year | 2014 - 2015 |
| Engine Type | Two-stroke, single cylinder |
| Displacement / Capacity | 249 cc / 15.2 cu in |
| Bore X Stroke | 66.4 x 72 mm |
| Compression Ratio | 12.3:1 |
| Cooling System | Liquid cooled |
| Max Power | — |
| Max Torque | — |
| Ignition | Contactless, fully electronic, digital timing adjustment (Kokusan type) |
| Induction | Carburettor |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6-speed, claw shifted |
| Clutch | Wet multi-disc, Brembo hydraulics |
| Final Drive | Chain 5/8 x 1/4 in X-Ring (primary ratio 26:72) |
| CHASSIS SPECS | |
| Frame | Perimeter steel-aluminium composite frame |
| Front Suspension | WP Suspension 4357 MXMA, 250 mm / 9.8 in travel |
| Rear Suspension | WP-PDS shock absorber, 280 mm / 11.0 in travel |
| Front Brakes | Single 260 mm disc, 2-piston caliper |
| Rear Brakes | Single 210 mm disc, 1-piston caliper |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 915 mm / 36.0 in |
| Wheelbase | 1418 mm / 55.8 in |
| Ground Clearance | 325 mm / 12.7 in |
| Dry Weight | 92.5 kg / 204 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 80/100-21 |
| Rear Tyre | 110/90-19 |
| FUEL SYSTEM | |
| Fuel Capacity | 7.0 Litres / 1.85 US gal |
| Fuel Consumption | — |
| Top Speed | — |
A lightweight two-stroke off-road bike from KTM's Freeride line, built around a 249 cc single tuned for low-rev torque and easy riding rather than peak power. The Freeride 250R was the first two-stroke in the range and is made for trails and rough terrain. It is also homologated in a power-reduced form for road use.
