| MODEL | KTM RC 125 2014 - 2015 |
| Year | 2014 - 2015 |
| Engine Type | Four-stroke, single cylinder, DOHC with finger followers, 4 valves |
| Displacement / Capacity | 124.7 cc / 7.6 cu in |
| Bore X Stroke | 58 x 47.2 mm |
| Compression Ratio | 14.5:1 |
| Cooling System | Liquid cooled |
| Max Power | 10.9 kW / 15 hp @ 9,500 rpm |
| Max Torque | 11.8 Nm / 8 lb-ft @ 8,000 rpm |
| Ignition | Contactless, fully electronic, digital timing adjustment |
| Induction | Bosch fuel injection |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Forced oil lubrication with 2 Eaton pumps |
| Gear Box | 6-speed |
| Clutch | Wet multi-disc, mechanically operated |
| Final Drive | Chain 5/8 x 1/4 in X-Ring; primary ratio 30:80, secondary 15:45 |
| CHASSIS SPECS | |
| Frame | Tubular steel space frame, powder-coated |
| Front Suspension | WP upside-down fork, 120 mm / 4.7 in travel |
| Rear Suspension | WP monoshock, 150 mm / 5.9 in travel |
| Front Brakes | Single 300 mm disc |
| Rear Brakes | Single 230 mm disc |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 820 mm / 32.3 in |
| Wheelbase | 1210 mm / 47.6 in |
| Ground Clearance | 179 mm / 7.0 in |
| Dry Weight | 135 kg / 297.6 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 110/70-17 |
| Rear Tyre | 150/60-17 |
| FUEL SYSTEM | |
| Fuel Capacity | 10 Litres / 2.6 US gal |
| Fuel Consumption | — |
| Top Speed | — |

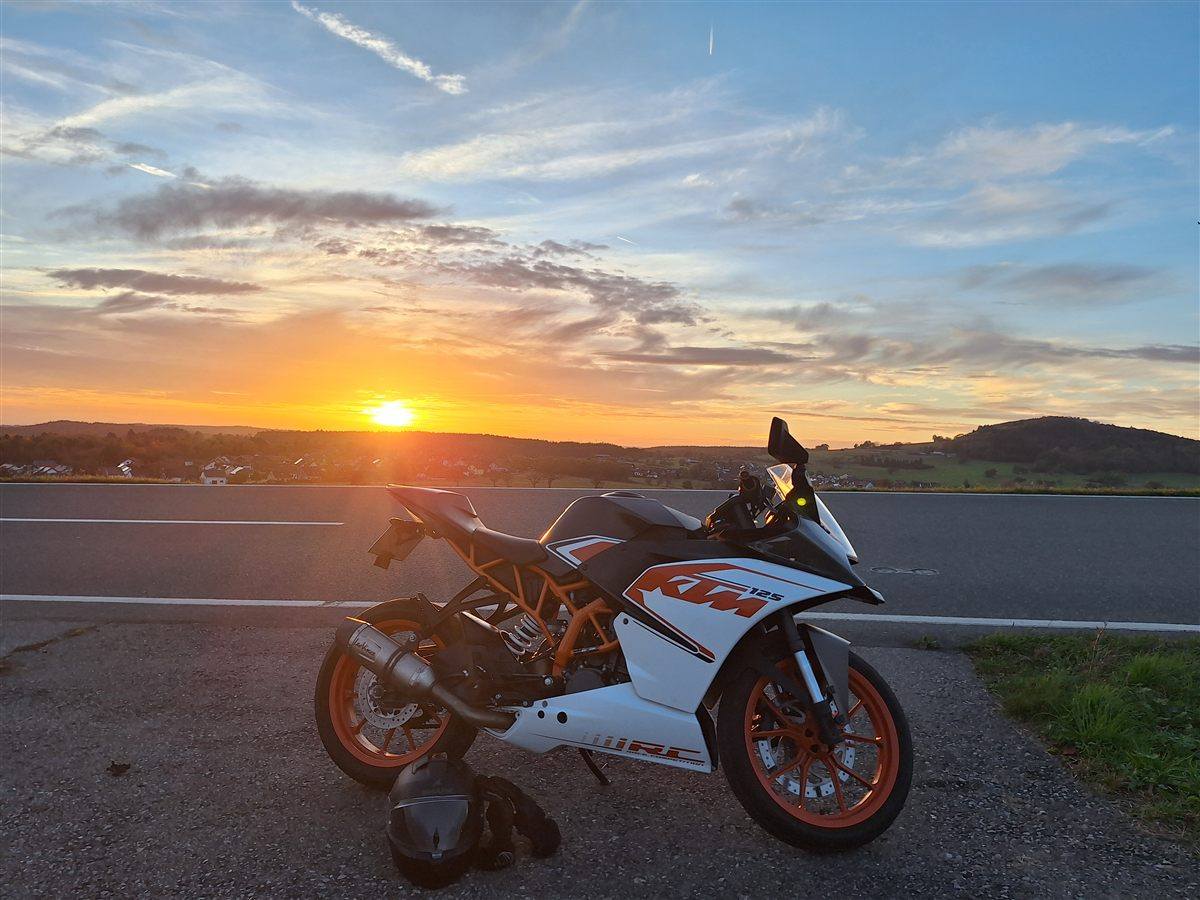

A supersport-styled 125 with a 124.7 cc single that shares its engine design with the Duke 125. It has a steel trellis-style frame with steeper steering geometry than the Duke and standard ABS, and it sits at the A1 licence power limit. It was built for markets where tiered licensing makes small-capacity sport bikes popular.
