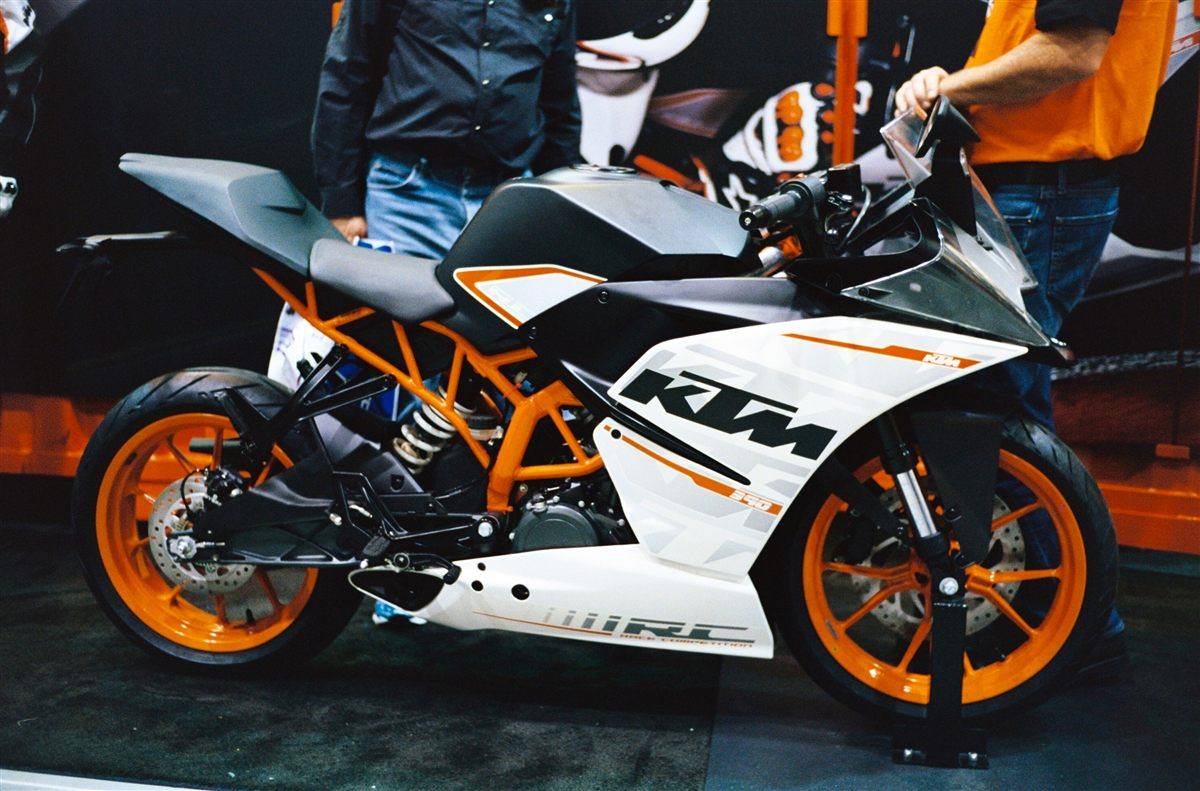

| MODEL | KTM RC 390 2014 |
| Year | 2014 |
| Engine Type | Four stroke, single cylinder, DOHC with finger followers, 4 valves per cylinder |
| Displacement / Capacity | 373 cc / 22.7 cu in |
| Bore X Stroke | 89 x 60 mm |
| Compression Ratio | 12.6:1 |
| Cooling System | Liquid cooled |
| Max Power | 43 hp / 32 kW @ 9500 rpm |
| Max Torque | 35.3 Nm / 3.6 kgm @ 7250 rpm |
| Ignition | Contactless, controlled, fully electronic with digital ignition timing adjustment |
| Induction | Bosch fuel injection |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Forced oil lubrication with 2 Eaton pumps |
| Gear Box | 5 speed |
| Clutch | Wet multi-disc, mechanically operated |
| Final Drive | Chain 5/8 x 1/4 X-Ring |
| CHASSIS SPECS | |
| Frame | Tubular space frame, steel, powder-coated |
| Front Suspension | WP upside-down fork (43 mm), 120 mm / 4.7 in travel |
| Rear Suspension | WP monoshock, 150 mm / 5.9 in travel |
| Front Brakes | Single 300 mm disc, 4-piston radial caliper |
| Rear Brakes | Single 230 mm disc, 1-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2002 mm / 78.8 in |
| Overall Width | 873 mm / 34.4 in |
| Overall Height | 1267 mm / 49.9 in |
| Seat Height | 820 mm / 32.2 in |
| Wheelbase | 1340 mm / 52.7 in |
| Ground Clearance | 179 mm / 7.0 in |
| Dry Weight | 139 kg / 306.4 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 110/70 R17 |
| Rear Tyre | 150/60 R17 |
| FUEL SYSTEM | |
| Fuel Capacity | 10 Litres / 2.6 US gal |
| Fuel Consumption | — |
| Top Speed | — |
The original RC 390 is a supersport-styled version of the Duke 390, built on the same 373 cc single with a balancer shaft and forged piston. It has a steel trellis frame with a steeper steering head than the Duke, which shortens trail and wheelbase and raises ground clearance. Standard equipment includes Bosch ABS that can be disengaged for track use, a digital LCD with an RPM shift alert, and a three-chamber underbelly silencer; the power-to-weight ratio sits at the A2 licence limit.
