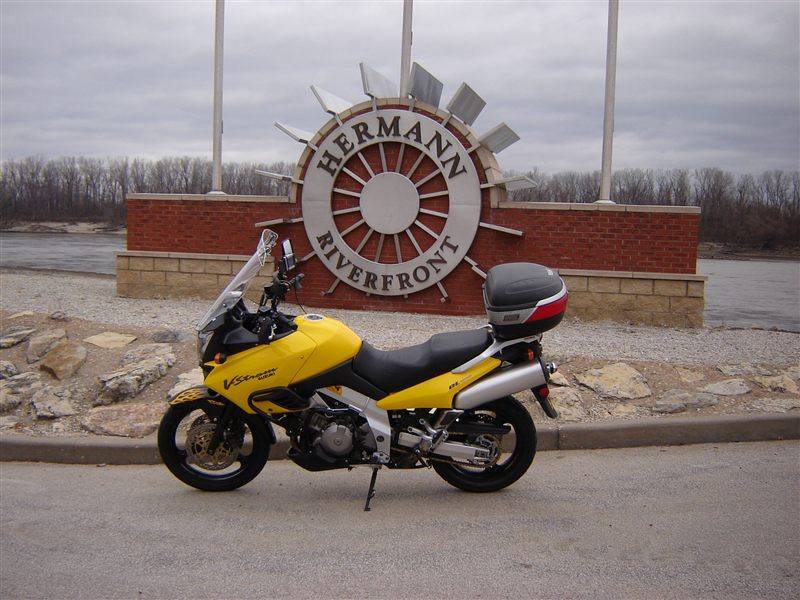

| MODEL | SUZUKI DL 1000 V-STROM 2002 - 2003 |
| Year | 2002 - 2003 |
| Engine Type | Four-stroke 90° V-twin, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 996 cc / 60.8 cu in |
| Bore X Stroke | 98 x 66 mm |
| Compression Ratio | 11.3:1 |
| Cooling System | Liquid cooled |
| Max Power | 72 kW / 98 hp @ 7400 rpm |
| Max Torque | 101 Nm / 10.3 kg-m / 74.5 lb-ft @ 6400 rpm |
| Ignition | Electronic ignition |
| Induction | Fuel injection, 45 mm throttle bodies |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6 speed |
| Clutch | Wet, multiple discs, hydraulic |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Aluminium, twin spar |
| Front Suspension | Telescopic, coil spring, oil damped, 43 mm forks, 160 mm / 6.3 in travel |
| Rear Suspension | Swingarm, coil spring, oil damped, preload and rebound adjustable, 162 mm / 6.4 in travel |
| Front Brakes | 2 x 310 mm discs, 2-piston calipers |
| Rear Brakes | Single 260 mm disc, 1-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2285 mm / 89.9 in |
| Overall Width | 910 mm / 37.0 in |
| Overall Height | 1335 mm / 52.5 in |
| Seat Height | 840 mm / 33.1 in |
| Wheelbase | 1535 mm / 60.4 in |
| Ground Clearance | 165 mm / 6.5 in |
| Dry Weight | — |
| Wet Weight | 236 kg / 520 lb |
| WHEEL SPECS | |
| Front Tyre | 110/80 R19 |
| Rear Tyre | 150/70 R17 |
| FUEL SYSTEM | |
| Fuel Capacity | 22 litres / 5.8 US gal / 4.8 Imp gal |
| Fuel Consumption | — |
| Top Speed | 207.5 km/h / 128.9 mph |
The original V-Strom, Suzuki's first sport-enduro tourer, arrived in 2002. Its 996 cc liquid-cooled 90-degree V-twin was derived from the TL1000 sportbike engine and sits in an aluminium twin-spar frame with long-travel suspension. Fuel injection with dual throttle valves and an upright, comfortable riding position set it apart from the sportbikes of the time.
