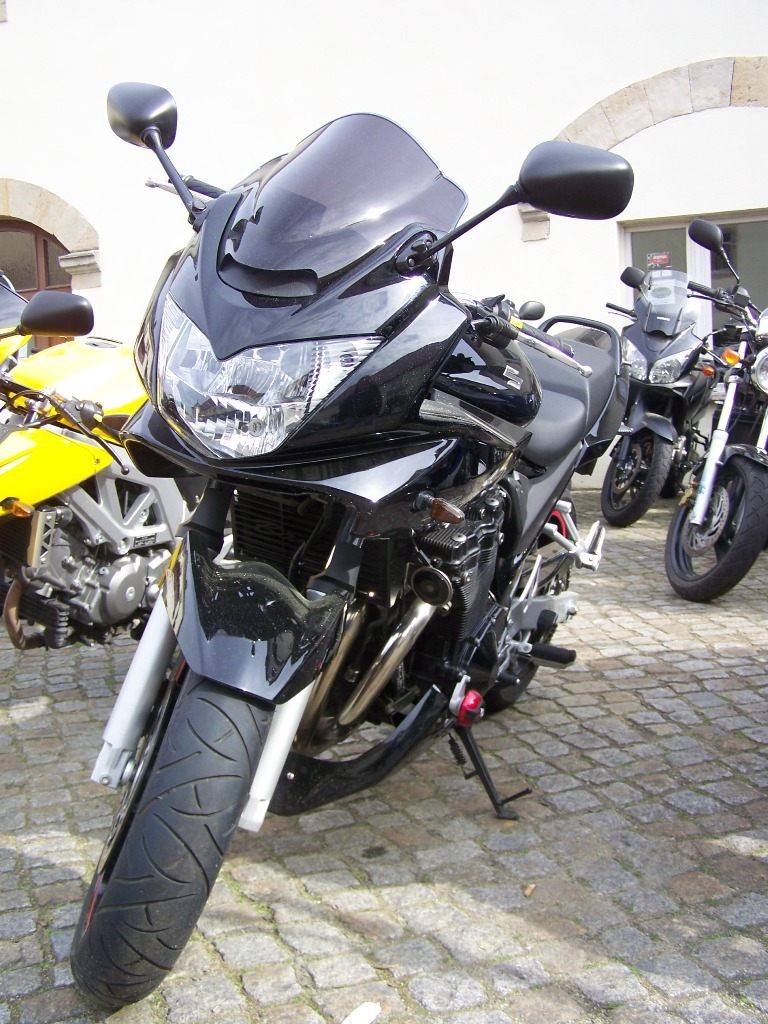

| MODEL | SUZUKI GSF 650S BANDIT 2005 - 2006 |
| Year | 2005 - 2006 |
| Engine Type | Air/oil cooled, four stroke, transverse four cylinder, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 656 cc / 40.0 cu in |
| Bore X Stroke | 65.5 x 48.7 mm |
| Compression Ratio | 10.5:1 |
| Cooling System | Air/oil cooled |
| Max Power | 57.4 kW / 77 hp @ 10500 rpm |
| Max Torque | 54 Nm / 5.5 kgf-m / 39.8 lb-ft @ 9500 rpm |
| Ignition | Digital transistorized |
| Induction | 4 x Keihin CVR 32 carburetors |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6 Speed |
| Clutch | — |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Double cradle |
| Front Suspension | 41 mm Telescopic fork, preload fully adjustable |
| Rear Suspension | Link type, oil damped, mono-shock, spring pre-load 7-way adjustable, rebound damping 4-way adjustable |
| Front Brakes | 2 x 290 mm Discs, 2 piston calipers |
| Rear Brakes | Single 240 mm disc, 2 piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2110 mm / 83.1 in |
| Overall Width | 770 mm / 30.3 in |
| Overall Height | 1090 mm / 42.9 in |
| Seat Height | 770 - 790 mm / 30.3 - 31.1 in |
| Wheelbase | 1440 mm / 56.7 in |
| Ground Clearance | 130 mm / 5.1 in |
| Dry Weight | 204 kg / 450 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 120/70 ZR17 |
| Rear Tyre | 160/60 ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 20 Litres / 5.3 US gal / 4.4 Imp gal |
| Fuel Consumption | 4.8 L/100 km / 20.9 km/l / 49.2 US mpg / 59.0 Imp mpg |
| Top Speed | 198.7 km/h / 123.5 mph |
The half-faired 650S arrived in 2005 as a bigger, lighter successor to the old 600 Bandit, with the air/oil-cooled four stretched by 56 cc for stronger low and mid-range pull. It added adjustable seat and bar positions, a reshaped tank and exhaust, a halogen headlight and an LCD instrument panel. The result was an easy, versatile road bike aimed at commuting and relaxed touring.
