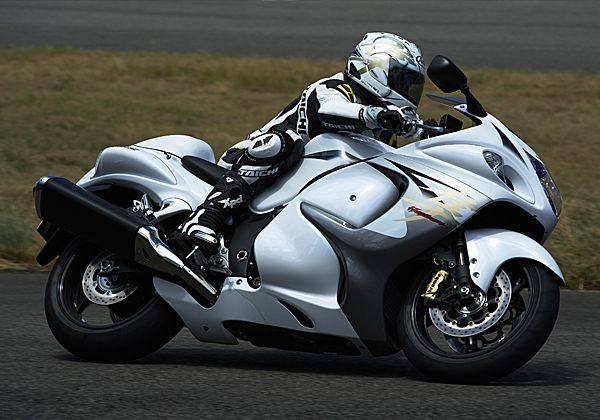

| MODEL | SUZUKI GSX 1300R HAYABUSA 2016 |
| Year | 2016 |
| Engine Type | Four-stroke, transverse four-cylinder, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 1340 cc / 81.8 cu in |
| Bore X Stroke | 81 x 65 mm |
| Compression Ratio | 12.5:1 |
| Cooling System | Liquid cooled |
| Max Power | 146 kW / 195.7 hp @ 9800 rpm |
| Max Torque | 154 Nm / 113.6 lb-ft @ 7200 rpm |
| Ignition | Electronic |
| Induction | Suzuki fuel injection |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Wet sump |
| Gear Box | 6-speed |
| Clutch | Wet multi-plate, manual, hydraulic; 10 drive / 9 driven plates |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Twin-spar, aluminium alloy |
| Front Suspension | Inverted telescopic, coil springs; preload, rebound and compression damping fully adjustable |
| Rear Suspension | Link type, oil damped, coil spring; preload, rebound and compression damping fully adjustable |
| Front Brakes | 2 x 310 mm discs, 4-piston calipers |
| Rear Brakes | Single 260 mm disc, 1-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2190 mm / 86.2 in |
| Overall Width | 735 mm / 28.9 in |
| Overall Height | 1165 mm / 45.9 in |
| Seat Height | 805 mm / 31.7 in |
| Wheelbase | 1480 mm / 58.3 in |
| Ground Clearance | 120 mm / 4.7 in |
| Dry Weight | 220 kg / 485 lb |
| Wet Weight | 266 kg / 586 lb |
| WHEEL SPECS | |
| Front Tyre | 120/70 ZR17 |
| Rear Tyre | 190/50 ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 21 Litres / 5.5 US gal / 4.6 Imp gal |
| Fuel Consumption | 6.1 L/100 km / 38.3 US mpg / 46.0 Imp mpg |
| Top Speed | 296.9 km/h / 184.49 mph |
Another unchanged year of the second-generation Hayabusa, with the 1340 cc four, three-mode engine selector, Brembo radial front calipers and ABS. The page mainly highlights its refined wind protection, clutch-assist feel and stacked twin headlamps.
