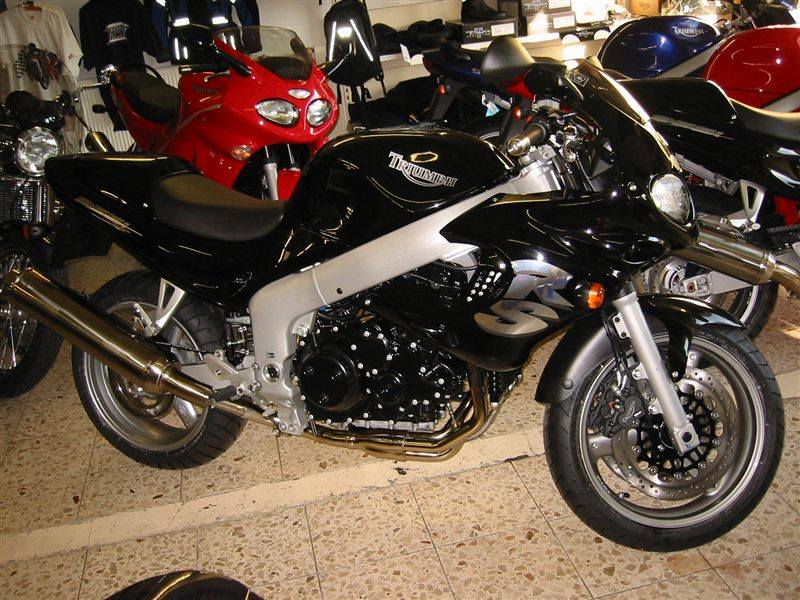

| MODEL | TRIUMPH SPRINT RS 2003 |
| Year | 2003 |
| Engine Type | Four-stroke, transverse three-cylinder, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 955 cc / 58.3 cu in |
| Bore X Stroke | 79 x 65 mm |
| Compression Ratio | 12.0:1 |
| Cooling System | Liquid cooled |
| Max Power | 87.5 kW / 120 hp @ 9100 rpm |
| Max Torque | 100 Nm / 73.8 lb-ft @ 5100 rpm |
| Ignition | Digital CDI, NGK CR9EK spark plug |
| Induction | Multipoint sequential electronic fuel injection |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Wet sump, synthetic 10W/40 |
| Gear Box | 6-speed |
| Clutch | Wet, multiple discs, cable operated |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Aluminium twin spar |
| Front Suspension | 45 mm forks, dual-rate springs, adjustable preload |
| Rear Suspension | Monoshock, adjustable preload, compression and rebound damping |
| Front Brakes | 2 x 320 mm discs, 4-piston calipers |
| Rear Brakes | Single 255 mm disc, 2-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2120 mm / 83.5 in |
| Overall Width | 735 mm / 28.9 in |
| Overall Height | 1170 mm / 46.1 in |
| Seat Height | 805 mm / 31.7 in |
| Wheelbase | 1470 mm / 57.9 in |
| Ground Clearance | — |
| Dry Weight | 199 kg / 438 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 120/70-17 |
| Rear Tyre | 180/55-17 |
| FUEL SYSTEM | |
| Fuel Capacity | 19.5 Litres / 5.2 US gal |
| Fuel Consumption | 5.1 L/100 km / 46.6 US mpg |
| Top Speed | 238.3 km/h / 148.1 mph |
The final year of the Sprint RS carries the revised 120 hp 955 cc triple. It is a half-faired sport-tourer, lighter than the ST thanks to a double-sided swingarm, praised for torque and light handling but with cost-reduced suspension.
