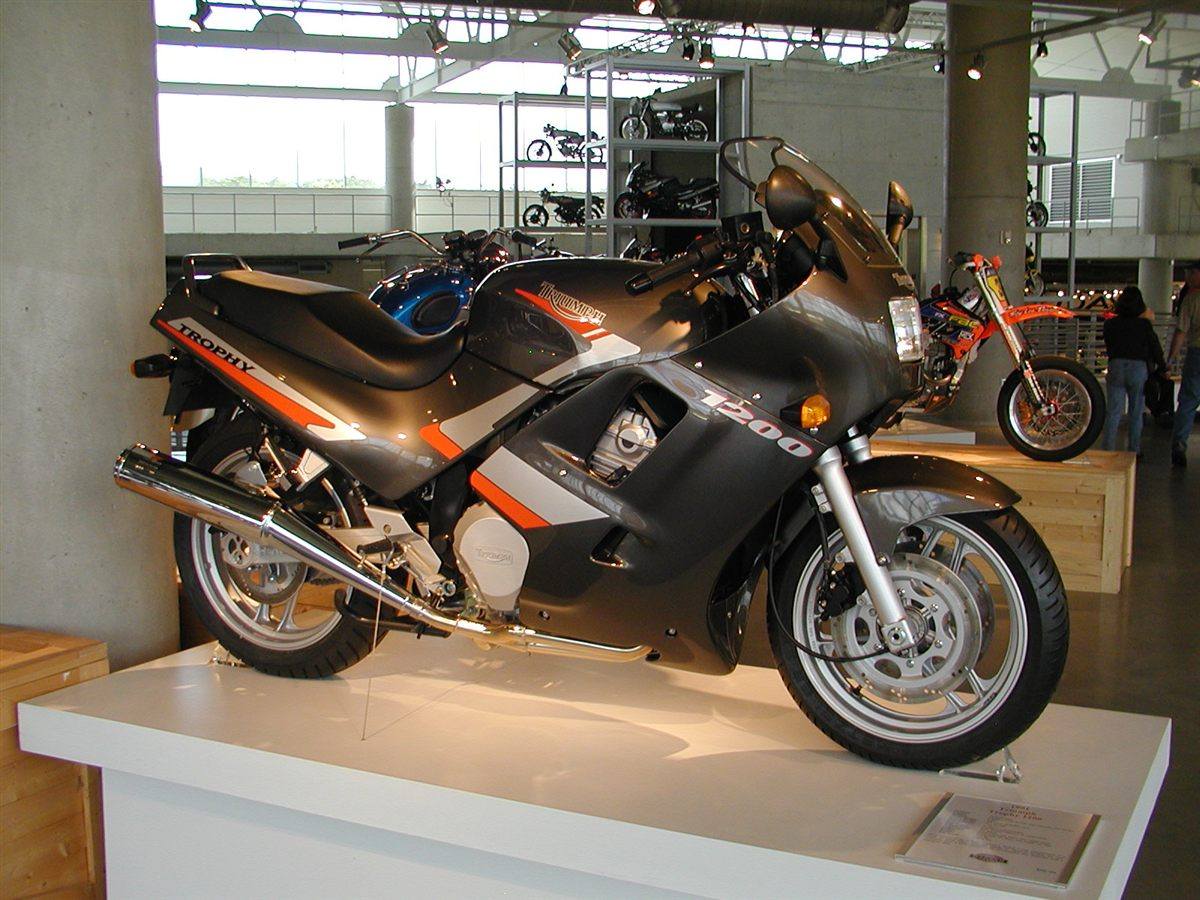

| MODEL | TRIUMPH TROPHY 1200 2002 - 2003 |
| Year | 2002 - 2003 |
| Engine Type | Four-stroke, transverse four-cylinder, DOHC, liquid-cooled |
| Displacement / Capacity | 1180 cc / 72 cu in |
| Bore X Stroke | 76 x 65 mm |
| Compression Ratio | 10.6:1 |
| Cooling System | Liquid |
| Max Power | 78.7 kW / 108 hp @ 9000 rpm |
| Max Torque | 104 Nm / 10.6 kgf-m / 76.7 ft-lb @ 5000 rpm |
| Ignition | Digital inductive |
| Induction | 4 x 36 mm flat-slide CV carburettors |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Wet sump, 10W/40 |
| Gear Box | 6 Speed |
| Clutch | Wet, multi-plate, cable-operated |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Steel trellis |
| Front Suspension | 43 mm forks, triple-rate springs, adjustable compression, rebound and preload |
| Rear Suspension | Monoshock, adjustable preload and rebound damping |
| Front Brakes | 2 x 310 mm discs, 4-piston calipers |
| Rear Brakes | Single 255 mm disc, 2-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2152 mm / 84.7 in |
| Overall Width | 790 mm / 31.1 in |
| Overall Height | 1430 mm / 56.3 in |
| Seat Height | 790 mm / 31.1 in |
| Wheelbase | 1490 mm / 58.7 in |
| Ground Clearance | — |
| Dry Weight | 235 kg / 518 lb |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 120/70 ZR17 |
| Rear Tyre | 170/60 ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 25 Litres / 6.6 US gal |
| Fuel Consumption | — |
| Top Speed | — |
A big Hinckley sport-tourer powered by the 1180 cc liquid-cooled four, sold alongside an 885 cc triple version. It combines a full fairing, upright seating, a dual seat and colour-matched hard luggage with strong low-rev pull, aimed at long-distance riding. The final 2002-03 listing offers Sunset Red, Azure Blue or Emerald Green with an optional accessory range (alarm, heated grips, 45 L top box).
