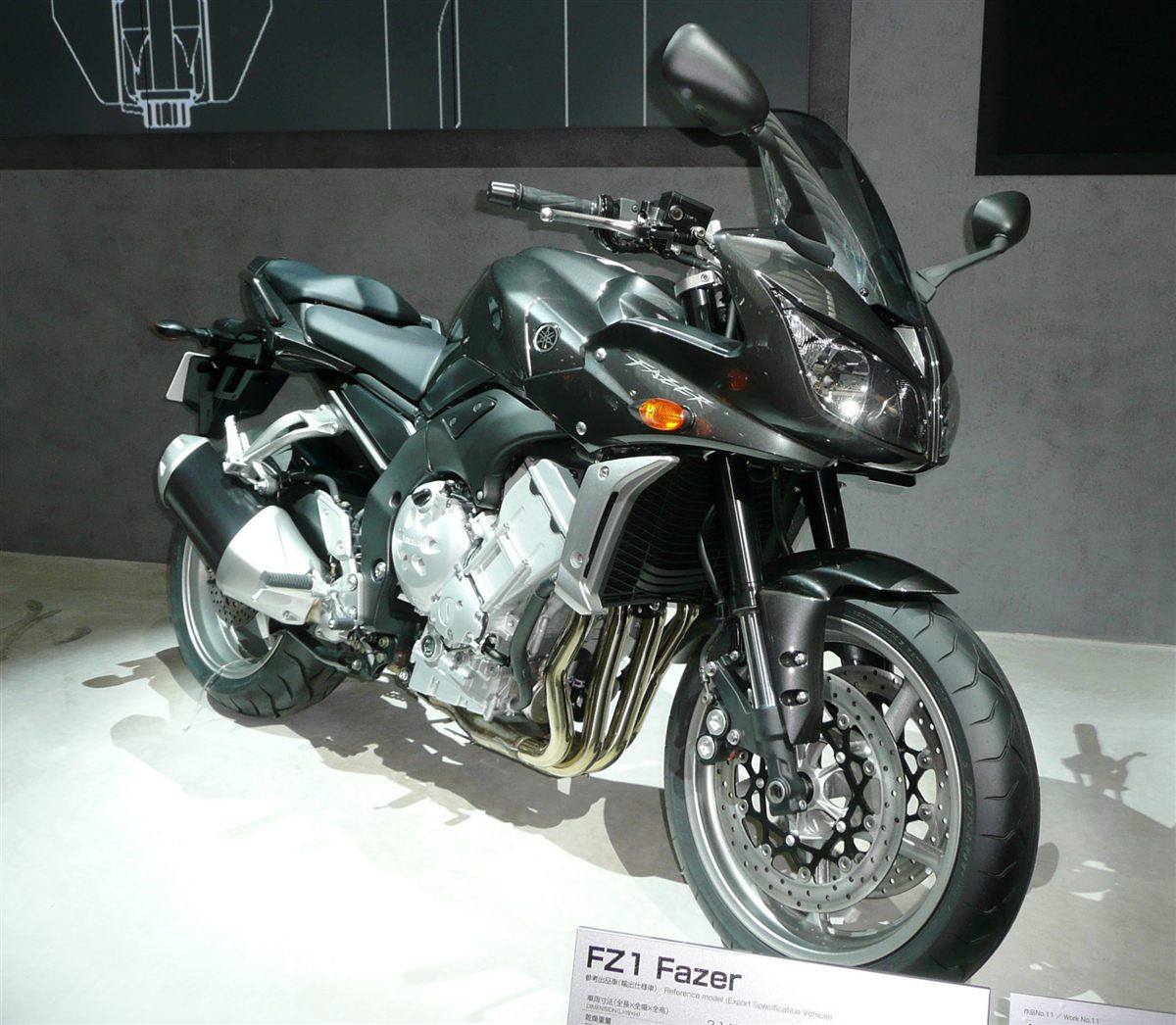

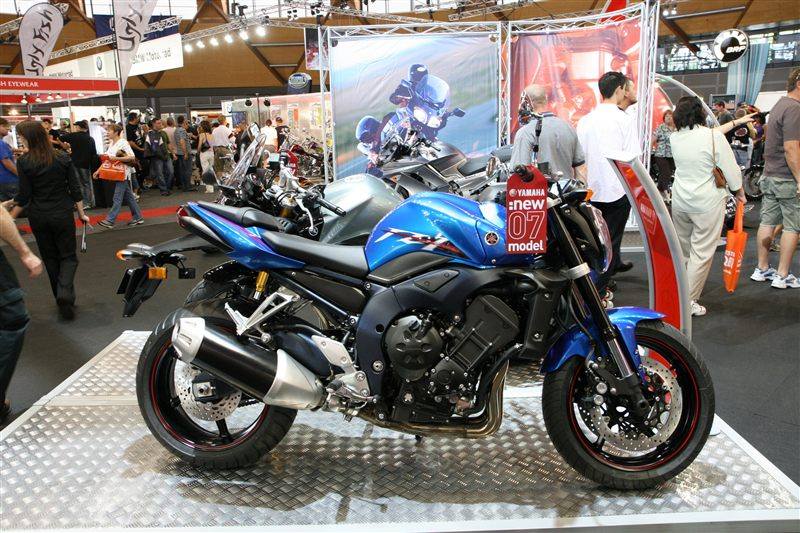

| MODEL | YAMAHA FZ-1 FAZER 2009 |
| Year | 2009 |
| Engine Type | Four-stroke, liquid-cooled, transverse four-cylinder, DOHC, 5 valves per cylinder |
| Displacement / Capacity | 998 cc / 60.9 cu in |
| Bore X Stroke | 77 x 53.6 mm |
| Compression Ratio | 11.5:1 |
| Cooling System | Liquid-cooled |
| Max Power | 108 kW / 146.8 hp @ 11000 rpm |
| Max Torque | 106 Nm / 10.5 kgf-m / 76.7 ft-lb @ 8000 rpm |
| Ignition | Digital TCI with 32-bit ECU |
| Induction | Fuel injection |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Wet sump |
| Gear Box | 6-speed |
| Clutch | Wet, multi-plate, hydraulically operated |
| Final Drive | O-ring chain |
| CHASSIS SPECS | |
| Frame | Die-cast aluminium, diamond-shaped |
| Front Suspension | Telescopic upside-down fork, 130 mm / 5.1 in travel |
| Rear Suspension | Link-type swingarm, 130 mm / 5.1 in travel |
| Front Brakes | 2 x 320 mm discs, 4-piston calipers |
| Rear Brakes | Single 245 mm disc, 1-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2141 mm / 84.3 in |
| Overall Width | 770 mm / 30.3 in |
| Overall Height | 1204 mm / 47.4 in |
| Seat Height | 815 mm / 32.1 in |
| Wheelbase | 1461 mm / 57.5 in |
| Ground Clearance | 135 mm / 5.3 in |
| Dry Weight | 198 kg / 436.5 lb |
| Wet Weight | 221 kg / 487 lb |
| WHEEL SPECS | |
| Front Tyre | 120/70 ZR17 |
| Rear Tyre | 190/50 ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 18 Litres / 4.76 US gal |
| Fuel Consumption | 13.4 km/l |
| Top Speed | 246.1 km/h |
The 2009 FZ1 Fazer carries on the 998 cc R1-based four in a half-faired, upright package for commuting, touring and track days. The listed specification is unchanged from the previous year.
