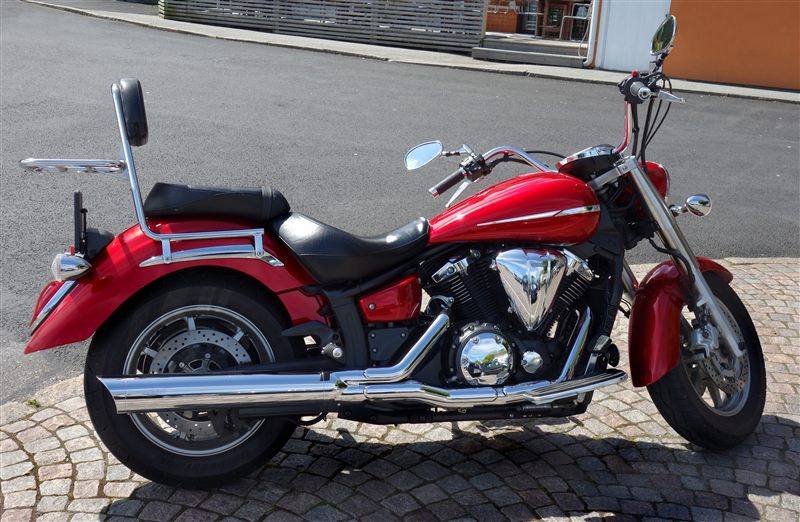

| MODEL | YAMAHA STAR STRATOLINER S 2008 - 2009 |
| Year | 2008 - 2009 |
| Engine Type | Four stroke, pushrod 48 degree V-twin, OHV, 4 valves per cylinder |
| Displacement / Capacity | 1854 cc / 113 cu in |
| Bore X Stroke | 100 x 118 mm |
| Compression Ratio | 9.5:1 |
| Cooling System | Air cooled |
| Max Power | 72.0 kW / 98.6 hp @ 4250 rpm |
| Max Torque | 166.7 Nm / 123 ft-lb @ 2250 rpm |
| Ignition | Digital TCI |
| Induction | Twin-bore electronic fuel injection, 43 mm throttle bodies |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Dry sump |
| Gear Box | 5 speed |
| Clutch | Wet, multiple disc |
| Final Drive | Belt |
| CHASSIS SPECS | |
| Frame | Aluminium die-cast double-cradle |
| Front Suspension | 46 mm telescopic forks |
| Rear Suspension | Single shock, link-type |
| Front Brakes | 2 x 298 mm discs, 4 piston calipers |
| Rear Brakes | Single 320 mm disc, 4 piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2580 mm / 101.6 in |
| Overall Width | 1055 mm / 41.5 in |
| Overall Height | 1515 mm / 59.6 in |
| Seat Height | 735 mm / 28.9 in |
| Wheelbase | 1715 mm / 67.5 in |
| Ground Clearance | 155 mm / 6.1 in |
| Dry Weight | — |
| Wet Weight | 370 kg / 816 lb |
| WHEEL SPECS | |
| Front Tyre | 130/70-18 |
| Rear Tyre | 190/60-17 |
| FUEL SYSTEM | |
| Fuel Capacity | 17 Litres / 4.4 US gal |
| Fuel Consumption | — |
| Top Speed | — |
Carried over the touring-ready S package with detachable screen, backrest and leather sidebags. Mechanically unchanged, with the long-low aluminium chassis and near 50/50 weight balance.
