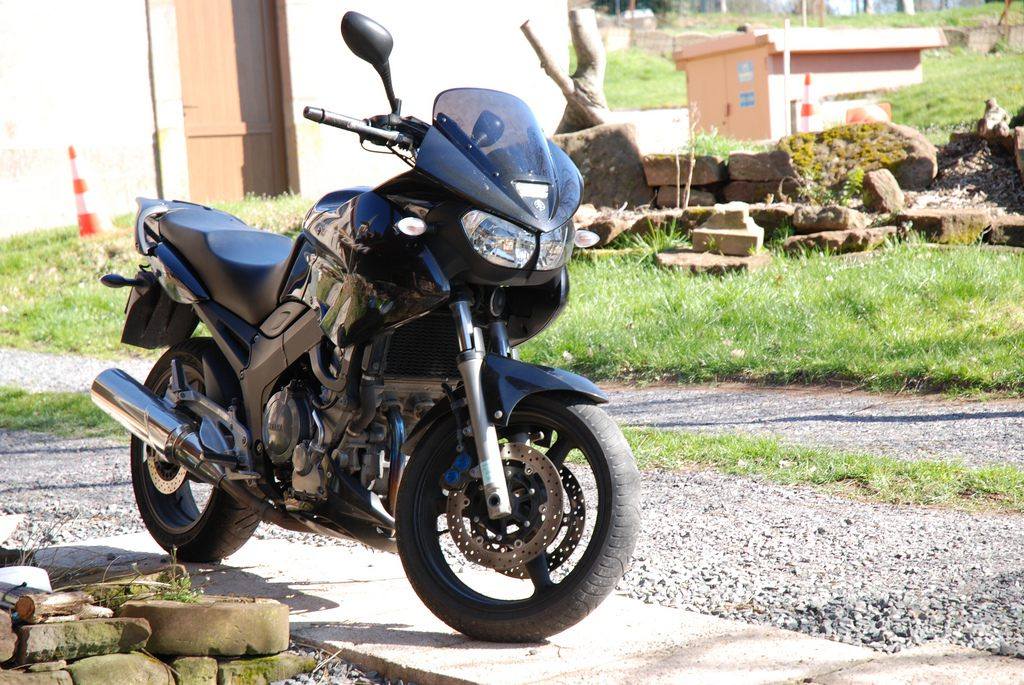

| MODEL | YAMAHA TDM 900 2002 - 2003 |
| Year | 2002 - 2003 |
| Engine Type | Four-stroke, parallel twin, DOHC, 5 valves per cylinder |
| Displacement / Capacity | 897 cc / 54.7 cu in |
| Bore X Stroke | 92 x 67.5 mm |
| Compression Ratio | 10.4:1 |
| Cooling System | Liquid cooled |
| Max Power | 63.4 kW / 86.2 hp @ 7500 rpm |
| Max Torque | 88.8 Nm / 65.5 lb-ft @ 6000 rpm |
| Ignition | TCI |
| Induction | Electronic fuel injection |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Dry sump |
| Gear Box | 6-speed |
| Clutch | Wet, multiple-disc coil spring |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Aluminium, diamond-shaped |
| Front Suspension | Telescopic fork, 150 mm / 5.9 in travel |
| Rear Suspension | Swingarm, link-type, 133 mm / 5.2 in travel |
| Front Brakes | 2 x 298 mm discs |
| Rear Brakes | Single 248 mm disc |
| DIMENSION SPECS | |
| Overall Length | 2180 mm / 85.8 in |
| Overall Width | 800 mm / 31.5 in |
| Overall Height | 1290 mm / 50.8 in |
| Seat Height | 825 mm / 32.5 in |
| Wheelbase | 1485 mm / 58.5 in |
| Ground Clearance | 160 mm / 6.3 in |
| Dry Weight | 190 kg / 418.9 lb |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 120/70 ZR18 |
| Rear Tyre | 160/60 ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 20 Litres / 5.2 US gal |
| Fuel Consumption | — |
| Top Speed | 216.5 km/h / 134.5 mph |
The TDM 900 looks like the 850 but is a major redesign, with an enlarged 897 cc fuel-injected engine, new six-speed gearbox, aluminium frame and restyled bodywork. The aluminium frame is about 6 kg lighter than the old steel unit. It is torquey but not as peppy as some rivals, with praised brakes and chassis.
