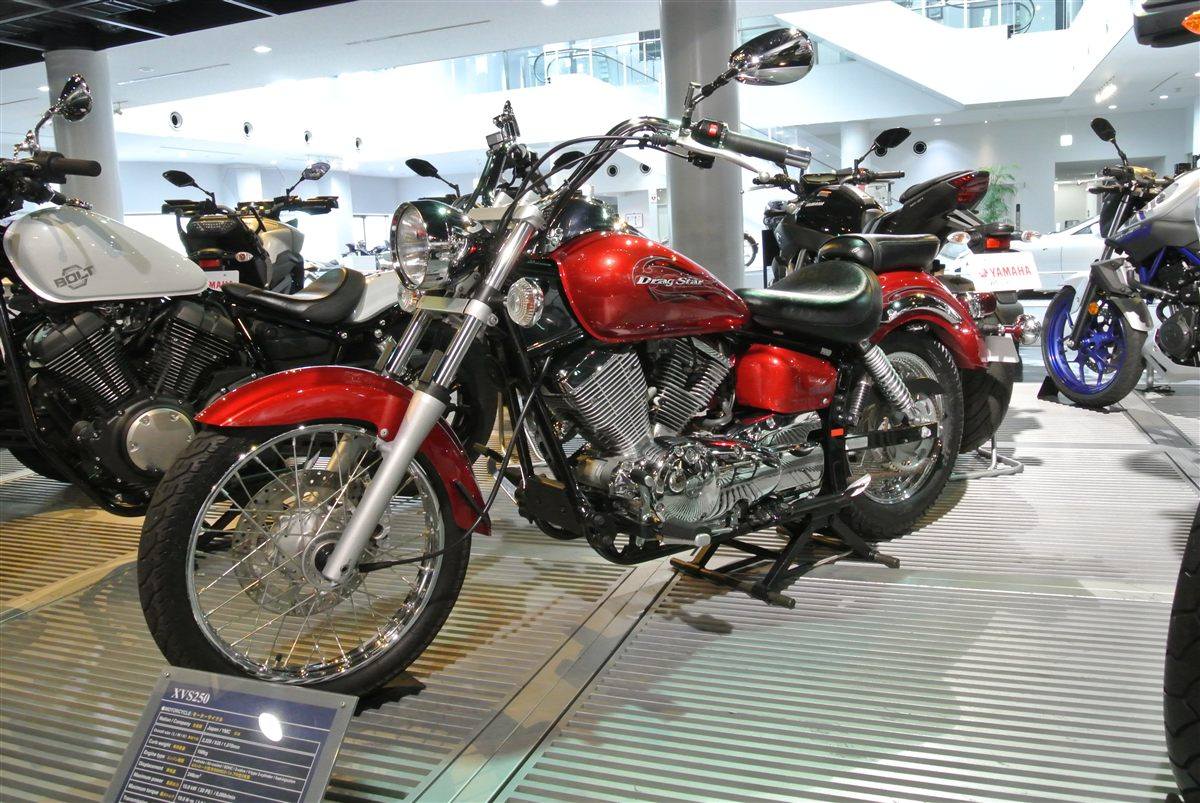

| MODEL | YAMAHA XVS 250 DRAG STAR 2000 - 2001 |
| Year | 2000 - 2001 |
| Engine Type | Four stroke, V-twin cylinder, SOHC, 2 valves per cylinder |
| Displacement / Capacity | 249 cc / 15.2 cu in |
| Bore X Stroke | 49 x 66 mm |
| Compression Ratio | 10:1 |
| Cooling System | Air cooled |
| Max Power | 15.4 kW / 21 hp @ 8000 rpm |
| Max Torque | 20 Nm / 15.3 lb-ft @ 6000 rpm |
| Ignition | Digital |
| Induction | Carburetor |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 5 Speed |
| Clutch | Wet, multiple discs, cable operated |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | — |
| Front Suspension | Cartridge telescopic forks, 140 mm / 5.5 in travel |
| Rear Suspension | Dual shock, swingarm, 100 mm / 3.9 in travel |
| Front Brakes | Single 282 mm disc |
| Rear Brakes | 130 mm drum |
| DIMENSION SPECS | |
| Overall Length | 2320 mm / 91.3 in |
| Overall Width | 910 mm / 35.8 in |
| Overall Height | 1075 mm / 42.3 in |
| Seat Height | 670 mm / 26.4 in |
| Wheelbase | 1530 mm / 58.9 in |
| Ground Clearance | 150 mm / 5.9 in |
| Dry Weight | 147 kg / 324 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 80/100-18 |
| Rear Tyre | 130/90-15 |
| FUEL SYSTEM | |
| Fuel Capacity | 11 Litres / 2.9 US gal |
| Fuel Consumption | — |
| Top Speed | — |
Yamaha's 250 cc Drag Star is a compact, air-cooled V-twin cruiser with a low seat and a 5-speed gearbox with chain drive. It is a small, easy-handling cruiser aimed at newer riders, with a 21 hp output.
