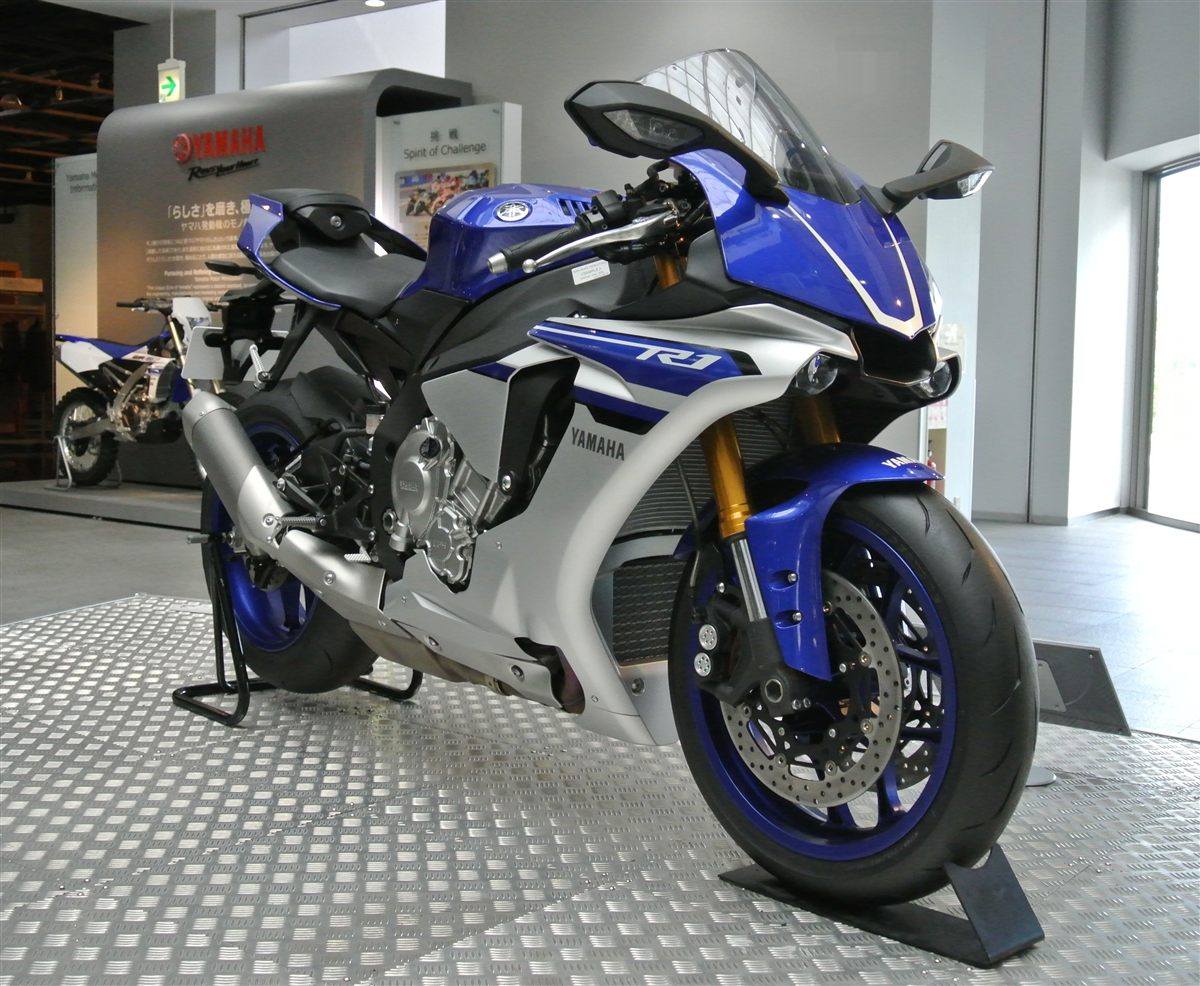

| MODEL | YAMAHA YZF 1000 R1 2016 |
| Year | 2016 |
| Engine Type | Four stroke, four cylinder (crossplane crank inline-four), DOHC, 4 valves per cylinder |
| Displacement / Capacity | 998 cc / 60.9 cu in |
| Bore X Stroke | 79.0 x 50.9 mm |
| Compression Ratio | 13.0:1 |
| Cooling System | Liquid cooled |
| Max Power | 147.1 kW / 200.0 PS @ 13500 rpm |
| Max Torque | 112.4 Nm / 11.5 kgf-m @ 11500 rpm |
| Ignition | TCI: Transistor Controlled Ignition |
| Induction | Fuel injection with YCC-T and YCC-I |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Wet sump |
| Gear Box | 6 speed |
| Clutch | Wet, multiple disc, with slipper function |
| Final Drive | O-ring chain |
| CHASSIS SPECS | |
| Frame | Deltabox aluminium (engine as stressed member) |
| Front Suspension | 43 mm KYB inverted fork, fully adjustable; 120 mm / 4.7 in travel |
| Rear Suspension | KYB single shock with piggyback reservoir, 4-way adjustable; 120 mm / 4.7 in travel |
| Front Brakes | 2 x 320 mm discs, 4 piston calipers, UBS ABS |
| Rear Brakes | Single 220 mm disc, 1 piston caliper, UBS ABS |
| DIMENSION SPECS | |
| Overall Length | 2054.8 mm / 80.9 in |
| Overall Width | 690 mm / 27.2 in |
| Overall Height | 1150 mm / 45.3 in |
| Seat Height | 830 mm / 32.7 in |
| Wheelbase | 1419 mm / 55.9 in |
| Ground Clearance | 135 mm / 5.3 in |
| Dry Weight | — |
| Wet Weight | 199 kg / 439 lb |
| WHEEL SPECS | |
| Front Tyre | 120/70 ZR17 |
| Rear Tyre | 190/55 ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 17 Litres / 4.5 US gal |
| Fuel Consumption | — |
| Top Speed | — |
The 2016 R1 is the fifth-generation bike introduced for 2015, carried over with the same 200 PS crossplane engine, IMU-based electronics and Deltabox frame. The page repeats the 2015 launch material, so no mechanical changes are listed.
