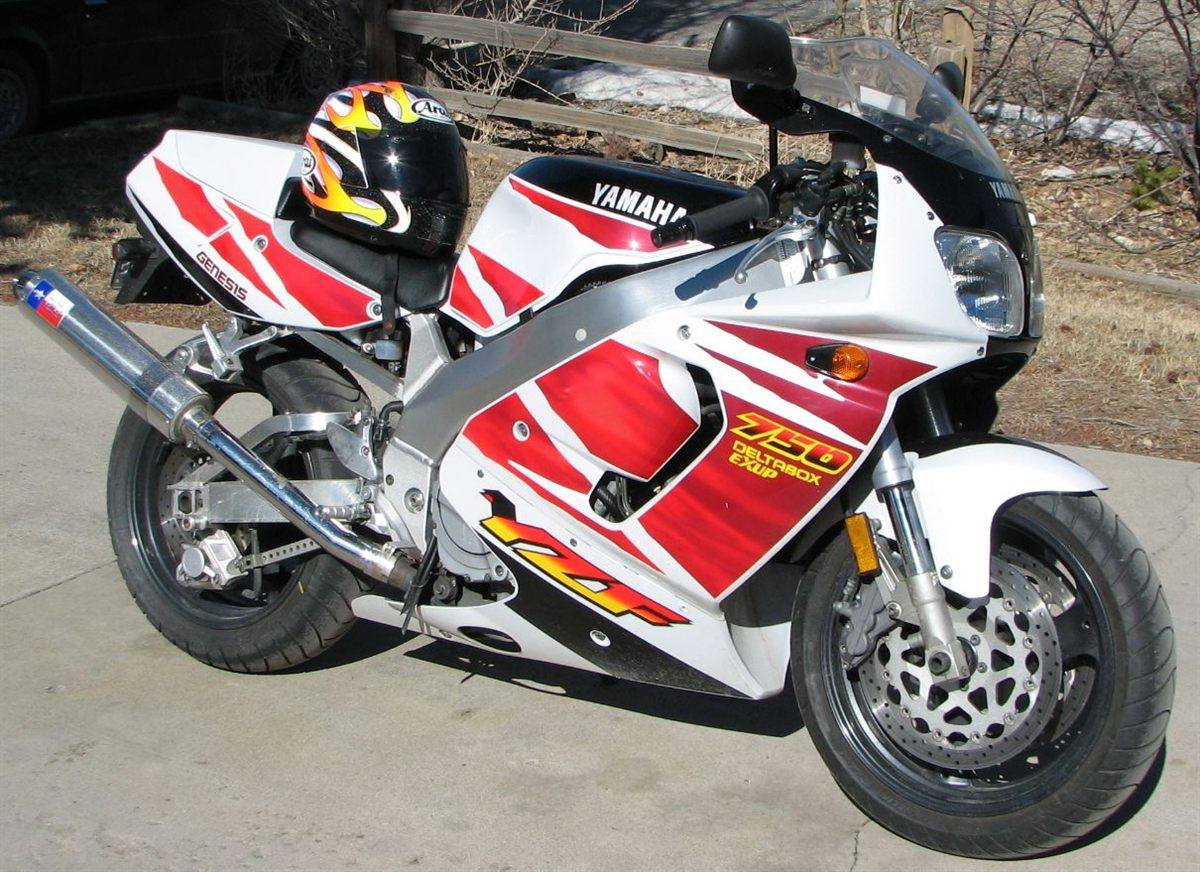

| MODEL | YAMAHA YZF 750SP 1994 |
| Year | 1994 |
| Engine Type | Four stroke, transverse four cylinder, DOHC, 5 valves per cylinder |
| Displacement / Capacity | 749 cc / 45.7 cu in |
| Bore X Stroke | 72 x 46 mm |
| Compression Ratio | 11.5:1 |
| Cooling System | Liquid cooled |
| Max Power | 91.1 kW / 125 hp @ 12000 rpm |
| Max Torque | 80.4 Nm / 59.3 lb-ft @ 9500 rpm |
| Ignition | T.C.I. Digital |
| Induction | 4x Keihin FCRD39/4 carburettors |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6 Speed |
| Clutch | Wet, multiple discs |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | — |
| Front Suspension | 41 mm USD fork, fully adjustable |
| Rear Suspension | Monocross type, fully adjustable Ohlins remote reservoir shock |
| Front Brakes | 2x 320 mm discs, 6 piston calipers |
| Rear Brakes | Single 245 mm disc, 2 piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2170 mm / 85.4 in |
| Overall Width | 730 mm / 28.7 in |
| Overall Height | 1165 mm / 45.8 in |
| Seat Height | 795 mm / 31.2 in |
| Wheelbase | 1420 mm / 55.9 in |
| Ground Clearance | 140 mm / 5.5 in |
| Dry Weight | 193 kg / 425 lbs |
| Wet Weight | 215 kg / 479 lbs |
| WHEEL SPECS | |
| Front Tyre | 120/70 ZR17 |
| Rear Tyre | 180/55 ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 19 Litres / 5.0 US gal |
| Fuel Consumption | 15.0 km/l |
| Top Speed | 260.6 km/h |
The SP was the limited-run, race-oriented sibling of the standard YZF750R, built as a homologation special for World Superbike. It swapped in flat-slide Keihin carburettors, fully adjustable suspension with an Ohlins rear shock, a single seat and a closer-ratio gearbox. It handles more sharply than the R but is more demanding, with a flat spot in carburation at low revs and a track-first character.
