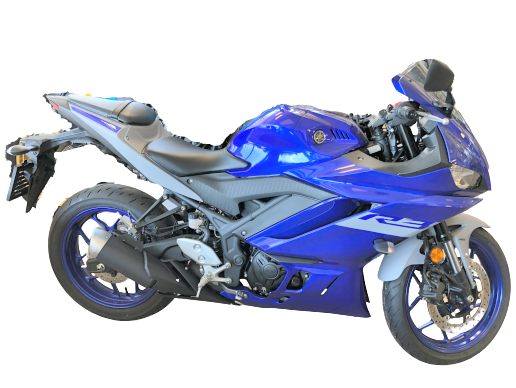

| MODEL | YAMAHA YZF-R3 2020 |
| Year | 2020 |
| Engine Type | Four-stroke, parallel twin, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 321 cc / 19.5 cu in |
| Bore X Stroke | 68.0 x 44.1 mm |
| Compression Ratio | 11.2:1 |
| Cooling System | Liquid cooled |
| Max Power | 30.9 kW / 41.4 hp @ 10,750 rpm |
| Max Torque | 29.6 Nm / 3.0 kgf-m @ 9,000 rpm |
| Ignition | TCI (Transistor Controlled Ignition) |
| Induction | Electronic fuel injection, 32 mm downdraft throttle body |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Wet sump |
| Gear Box | 6-speed, constant mesh |
| Clutch | Wet, multiple-disc, coil spring |
| Final Drive | O-ring chain |
| CHASSIS SPECS | |
| Frame | Delta box (steel) |
| Front Suspension | 37 mm inverted (USD) telescopic fork, 130 mm / 5.1 in travel |
| Rear Suspension | Monocross single shock (KYB), preload adjustable, 125 mm / 4.9 in travel |
| Front Brakes | Single 298 mm disc, 2-piston caliper |
| Rear Brakes | Single 220 mm disc, 1-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2090.4 mm / 82.3 in |
| Overall Width | 718.8 mm / 28.3 in |
| Overall Height | 1110.4 mm / 43.7 in |
| Seat Height | 780 mm / 30.7 in |
| Wheelbase | 1379.2 mm / 54.3 in |
| Ground Clearance | 160 mm / 6.2 in |
| Dry Weight | — |
| Wet Weight | 167 kg / 368 lb (170 kg / 375 lb with ABS) |
| WHEEL SPECS | |
| Front Tyre | 110/70-17 M/C 54H |
| Rear Tyre | 140/70-17 M/C 66H |
| FUEL SYSTEM | |
| Fuel Capacity | 14 Litres / 3.7 US gal |
| Fuel Consumption | — |
| Top Speed | — |
The 2020 R3 continues the 2019 facelift design with the inverted fork, LED lighting and LCD dash, offered with or without ABS. Colours were Team Yamaha Blue plus matte black and matte silver on the ABS model.
